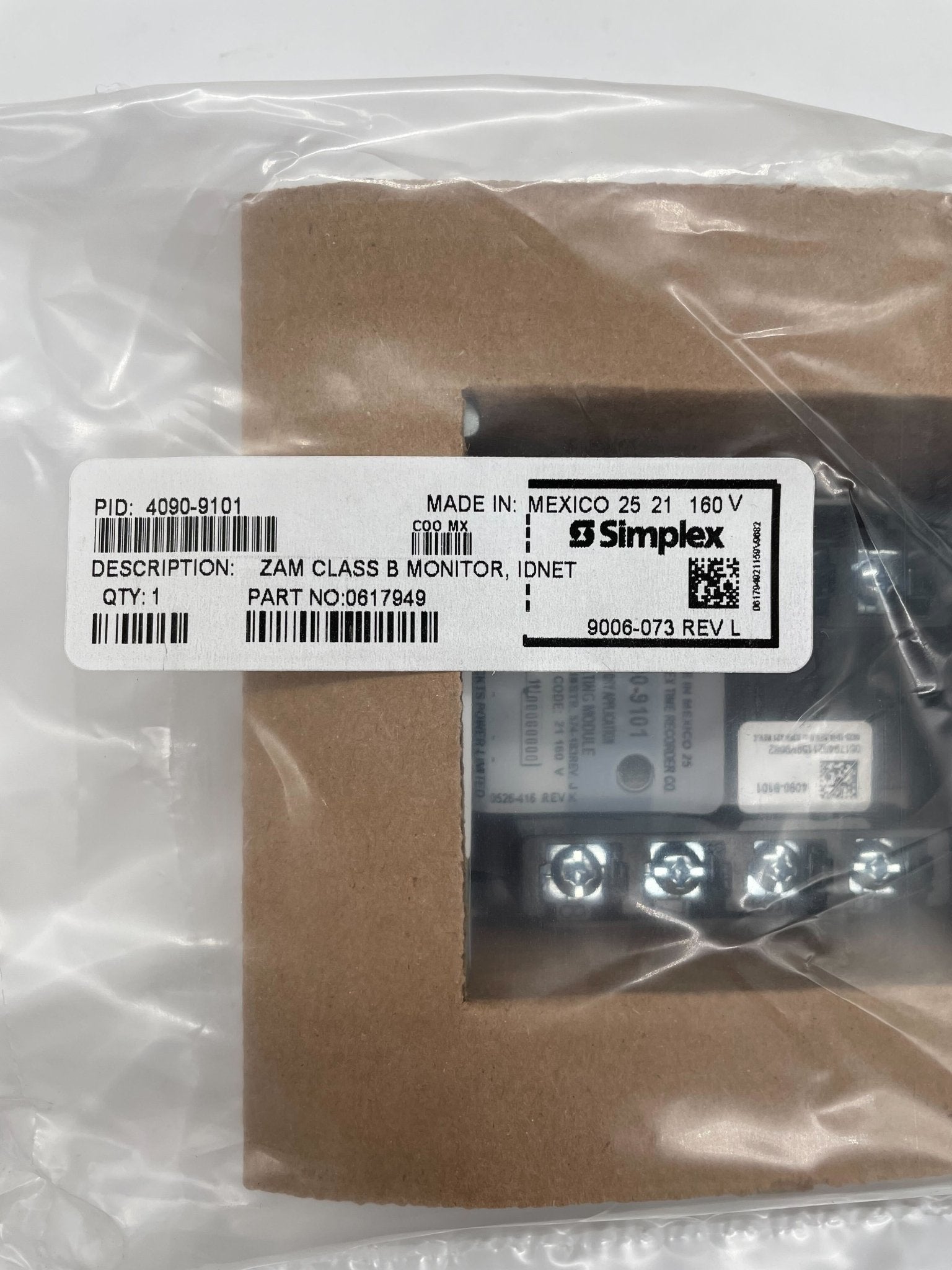

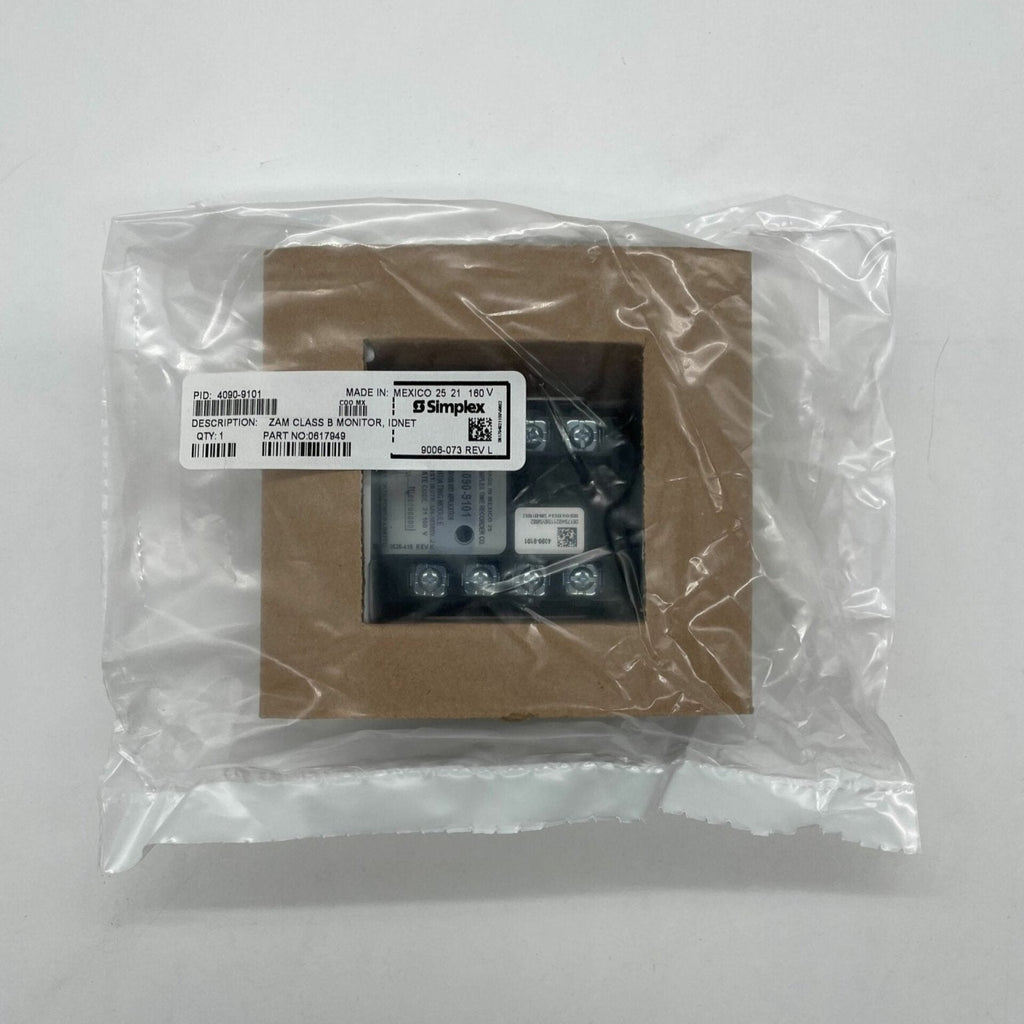

Simplex 4090-9101 is a Class B (Style B) Monitor Zone Adapter Module (ZAM) for Simplex IDNet addressable systems. It gives a single IDNet address to a conventional initiating device circuit, so 2-wire or 4-wire smoke detectors and contact devices can be monitored by an addressable panel. Installers use it to bring an existing conventional zone onto an IDNet loop.
Specifications
| Circuit style |
Class B (Style B) initiating device circuit |
| Devices monitored |
2-wire or 4-wire, up to 20 two-wire detectors |
| Input voltage |
18.9 to 32 VDC (24 VDC nominal) |
| Supervisory current |
16 mA maximum |
| Alarm current |
72 mA maximum |
| End-of-line resistor |
3.3 kΩ, 1 W |
| Wire connections |
Screw terminals, #18 to #14 AWG |
| Dimensions |
4-1/8 in. H x 4-1/8 in. W x 1-3/8 in. D |
| Housing |
Black thermoplastic with galvanized sheet-metal mounting plate |
| Operating temperature |
32°F to 120°F (0°C to 49°C), indoor use |
| Humidity |
Up to 93% RH at 100°F |
Features
- One IDNet address per module
- Power reset connections for 4-wire devices
- Sealed construction limits dust entry
- Mounts in a standard 4 in. square electrical box
- UL certified to Standard 864; ULC certified; FM approved
IDNet wiring can run up to 2,500 ft from the fire alarm control panel and up to 10,000 ft total.
