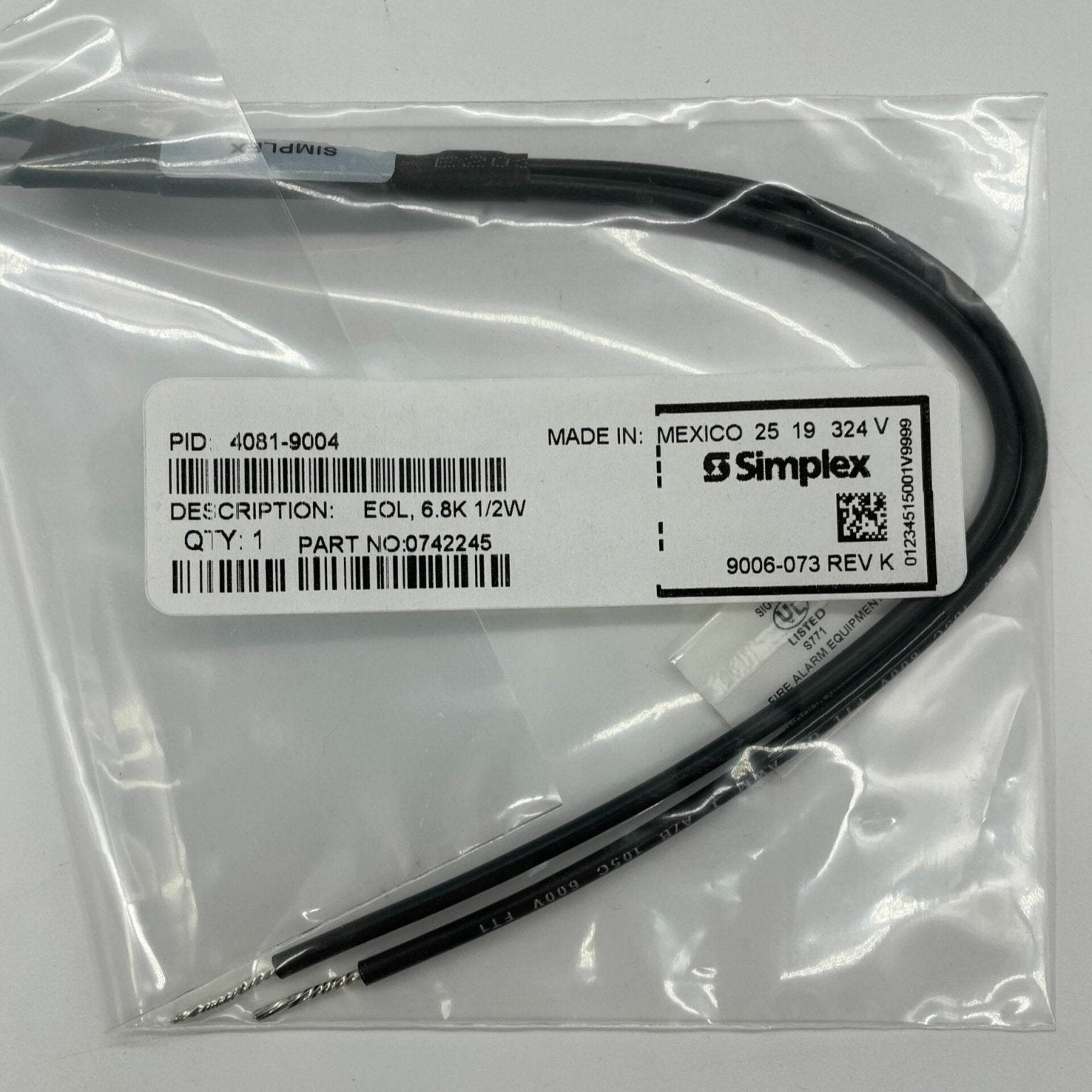

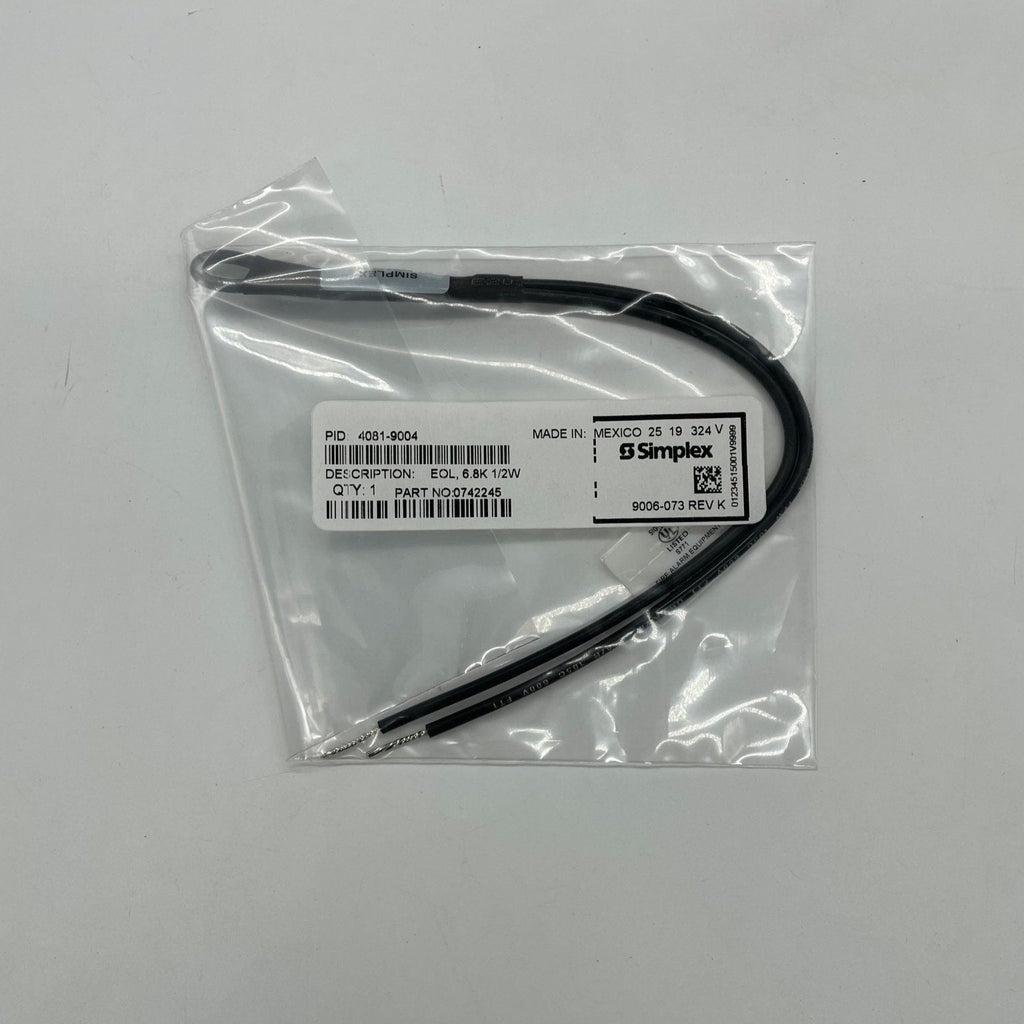

Simplex 4081-9004 — end-of-line resistor harness, 6.8 kΩ, 1/2 W, 5% tolerance (reference number 733-886).
A Class B field circuit is supervised by a resistor at the far end of the run: the panel pushes a small current through it, so a broken conductor shows up as an open-circuit trouble. This harness puts that resistor on stripped, crimped leads so it can be landed on the last device rather than twisted in bare. The resistance a circuit needs is fixed by the panel's field wiring specification, so confirm the value on the drawings before ordering.
- 6.8 kΩ, 1/2 W, 5% tolerance; Class B end-of-line use
- Overall length about 9-1/2" (241 mm); leads 7" (178 mm)
- 18 AWG, 600 V black insulation; leads stripped 0.5" (13 mm) and tinned
- Resistor leads crimped to the wires and covered with heat shrink
- UL certified to Standard 864
Check the value twice: 4081-9008 is the 10 kΩ harness, and every 1 W part in the 4081 series is a different resistance — there is no 6.8 kΩ 1 W version.
Documents
FAQ
What is the 4081-9004 used for?
It is a Class B end-of-line resistor harness, connected at the end of a circuit to monitor wiring continuity. Check the panel circuit specifications for the resistor value required.
What is the resistor value?
6.8 kΩ, 1/2 W, ±5%, Simplex reference number 733-886.
Which other values are available?
The 4081 series includes values such as 2.2 kΩ (4081-9001), 4.7 kΩ (4081-9003) and 10 kΩ 1/2 W (4081-9008).
Which approvals does it have?
It is UL certified to Standard 864. Simplex notes it was not approved by ULC, FM, MEA (NYC) or CSFM as of the document revision date.
