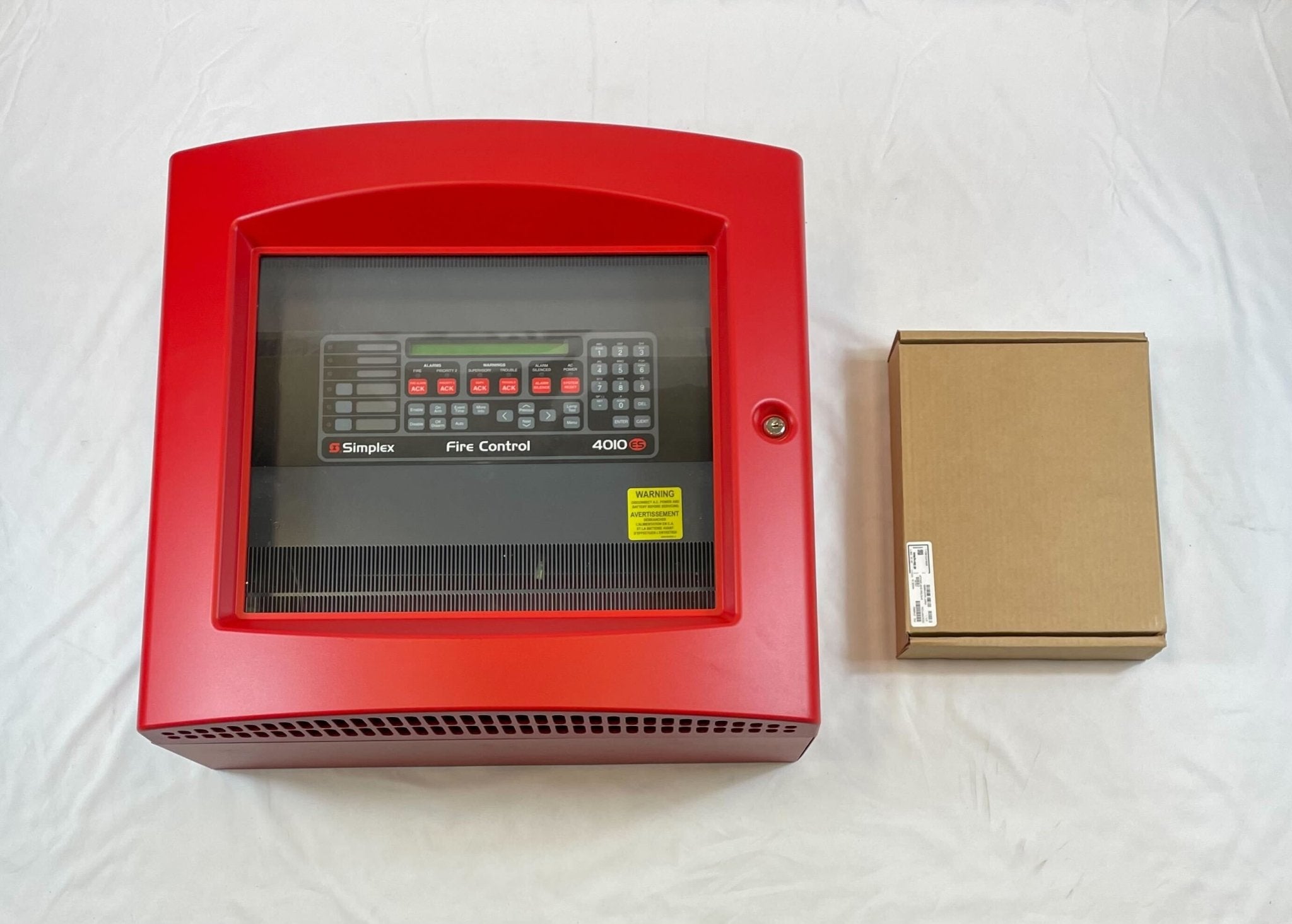

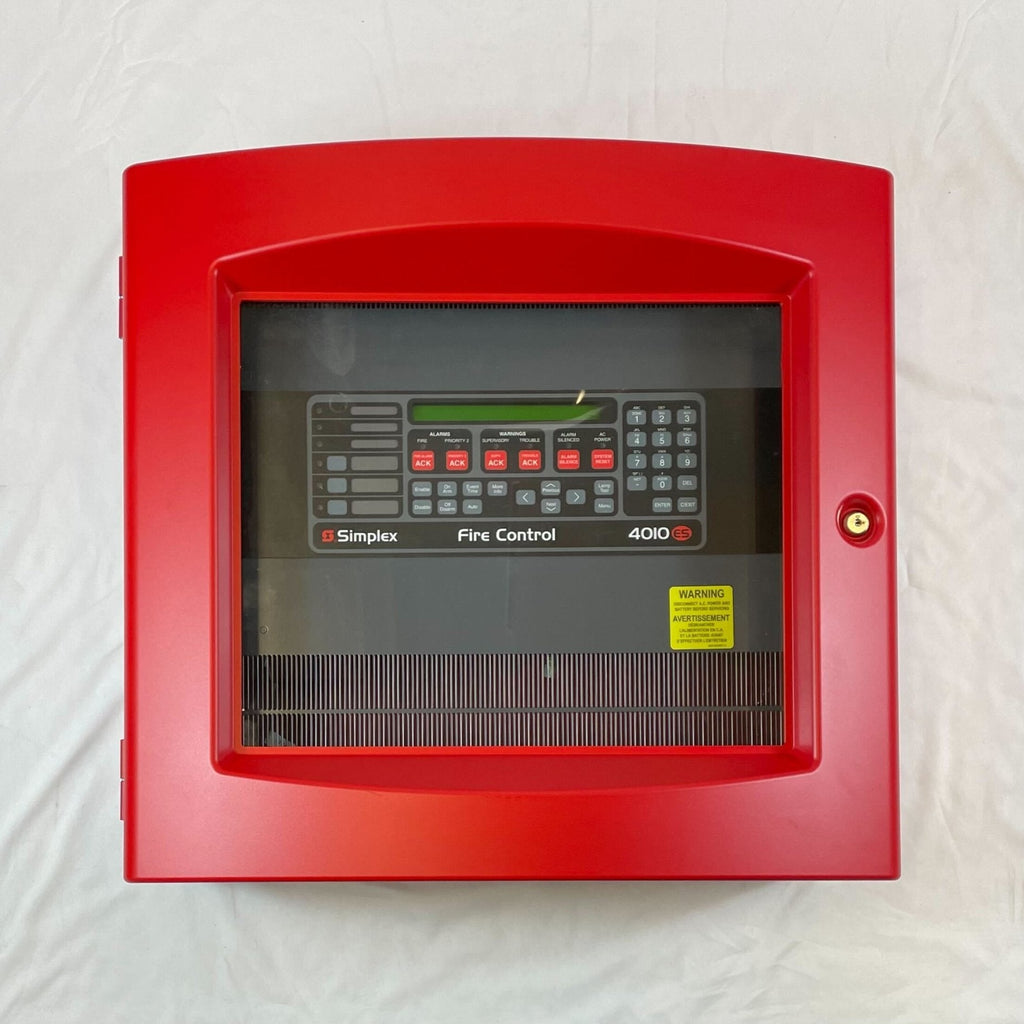

Simplex 4010-9401 — 4010ES basic addressable fire alarm control unit, red one-bay cabinet, 2x40 character LCD interface, 120 VAC supply.
The 4010ES is the compact member of the Simplex ES family, for buildings needing TrueAlarm analog addressable detection without a 4100ES cabinet. It ships as a basic unit — master controller with Compact Flash, Main System Supply 2 and one addressable channel — with three 4 in. × 5 in. block spaces free for option cards.
- One two-loop isolated IDNet2 channel, Class A or B, up to 250 addressable IDNet points
- Four Class A or B NACs rated 3 A each, selectable for synchronized strobe or SmartSync
- 8 A supply with up to 2 A auxiliary; programmable relay rated 2 A at 32 VDC
- Battery charger to 110 Ah (UL) or 50 Ah (ULC); 33 Ah max in the one-bay cabinet
- 316 mA supervisory, 430 mA alarm; uses 2 of the 20 card addresses
- UL and FM listed; NEMA 1 and IP 30 cabinet with an RUI port
Check the suffix: 4010-9402 is platinum, 4010-9501 red at 220–240 VAC, 4010-9404 adds 48 LED annunciation, and 4010-9505 substitutes an ESMX loop channel.
