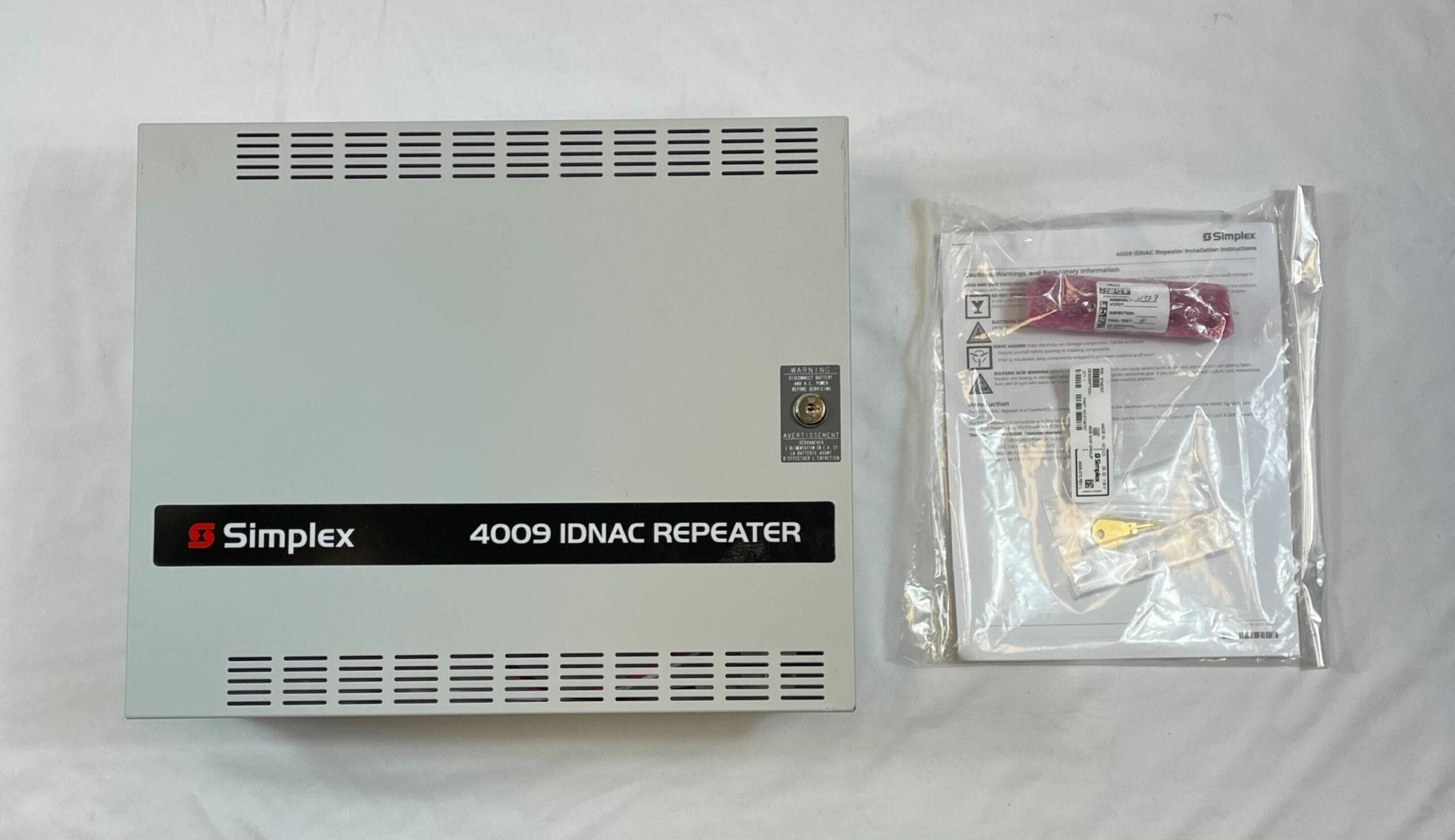

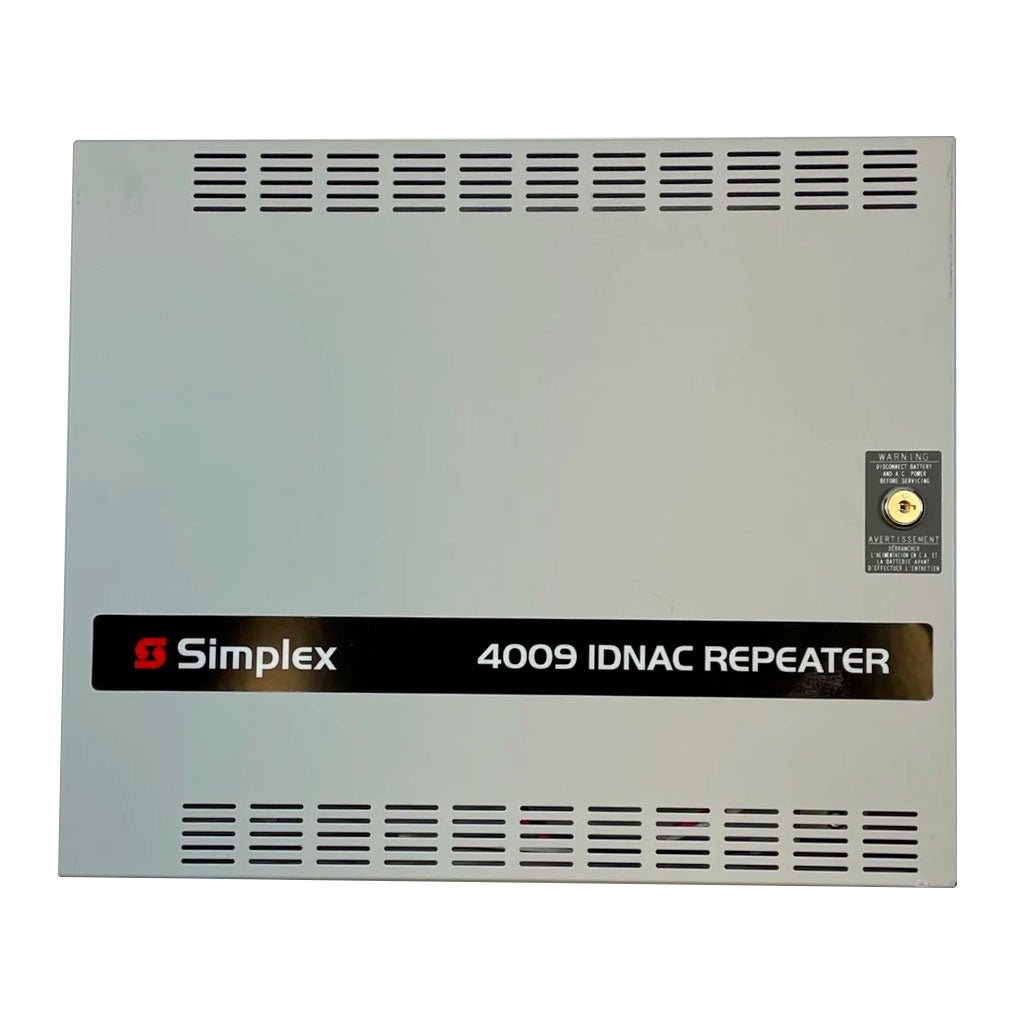

Simplex 4009-9601 — 4009 IDNAC Repeater, 120/240 VAC, platinum enclosure.
The IDNAC Repeater extends both the power and the wiring distance available to TrueAlert and TrueAlert ES addressable notification appliances on an IDNAC signalling line circuit. On a long or heavily loaded IDNAC run it is what keeps the far end of the circuit within voltage, rather than forcing a second panel.
- One 3 A IDNAC SLC output; 29 VDC nominal with AC present, or on batteries with the system in alarm; 24 VDC nominal on batteries in standby
- 200 mA auxiliary power output and an integral battery charger
- Input 120/240 VAC, 50/60 Hz, autoselect
- Requires one IDNAC SLC address
- Repeaters may be connected one in series, or up to five in parallel
- Input SLC connection Class B or Class A; output may be a Class A loop, or a Class B output with internal connections for up to four T-tapped output branches
- Cabinet 16.5" W × 13.75" H × 4.5" D
Documents
FAQ
What does the 4009 IDNAC Repeater add to an IDNAC circuit?
It receives an IDNAC SLC input and provides a repeated 3 A SLC output, adding up to 139 unit loads of supervisory capacity. Appliance control and the address limit stay with the host IDNAC panel.
Does the repeater increase the number of IDNAC addresses?
No. Each repeater uses one IDNAC SLC address and four unit loads on the channel feeding it, and it does not increase the channel device address capacity.
Do I need anything extra for a Class A output?
Yes. A Class A loop extension or Class A local loop output requires the 4009-9814 Class A Adapter, which mounts on the repeater controller board.
What batteries fit in the cabinet?
The built-in charger handles up to 12.7 Ah batteries in the cabinet, or up to 25 Ah with the 4009-9801 external battery cabinet. Two 12 VDC batteries are required for 24 VDC operation.
