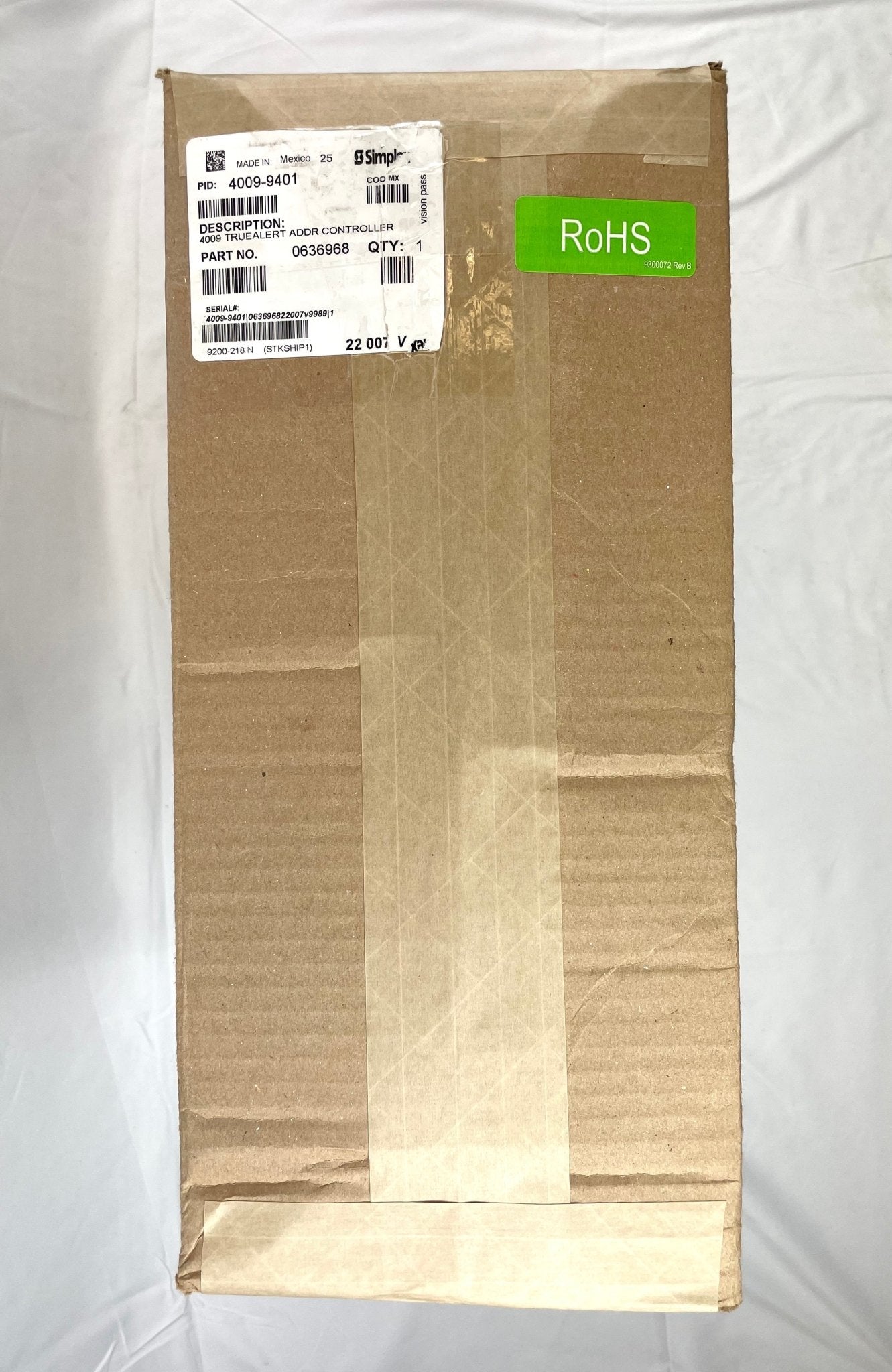

Simplex 4009-9401 is the 4009 Series TrueAlert Addressable Controller, 120 VAC input: a remote-mounted panel that powers and controls TrueAlert addressable notification appliances on its own signaling line circuits. Simplex positions it for expansion of installed systems.
Each TrueAlert appliance gets power, supervision and control over one wire pair, so horns and strobes can share a two-wire circuit while being controlled separately. Class B circuits can be T-tapped, which saves wire and reduces voltage drop. The controller can be driven by RUI communications from 4100ES, 4010ES, 4100U and related panels, by IDNet from a 4010, or by conventional NACs.
Specifications
| SLC outputs |
Three, 2.5 A each, special application rating |
| Appliances |
Up to 63 per SLC, 189 per control source |
| Power supply |
8 A, with battery charging |
| Batteries |
Up to 12.7 Ah internal, up to 18 Ah in an external cabinet |
| Input |
120 VAC |
| Approvals |
UL, FM, CSFM, MEA (NYC); seismic certified to IBC/CBC with battery brackets |
Features
- Horns selectable high or low, Temporal 3, March Time or steady, separate from strobes on the same circuit
- Strobes synchronized at 1 Hz
- Individual appliance magnet test and LED polling indicator from the host panel
- Status monitoring of battery, input power and earth faults
- Optional Class A three channel adapter and IDNet repeater or fiber modules
Related models
4009-9402CA is the ULC version with low battery cutout, and the 4905-9929 remote TrueAlert communications isolator is an external accessory.
