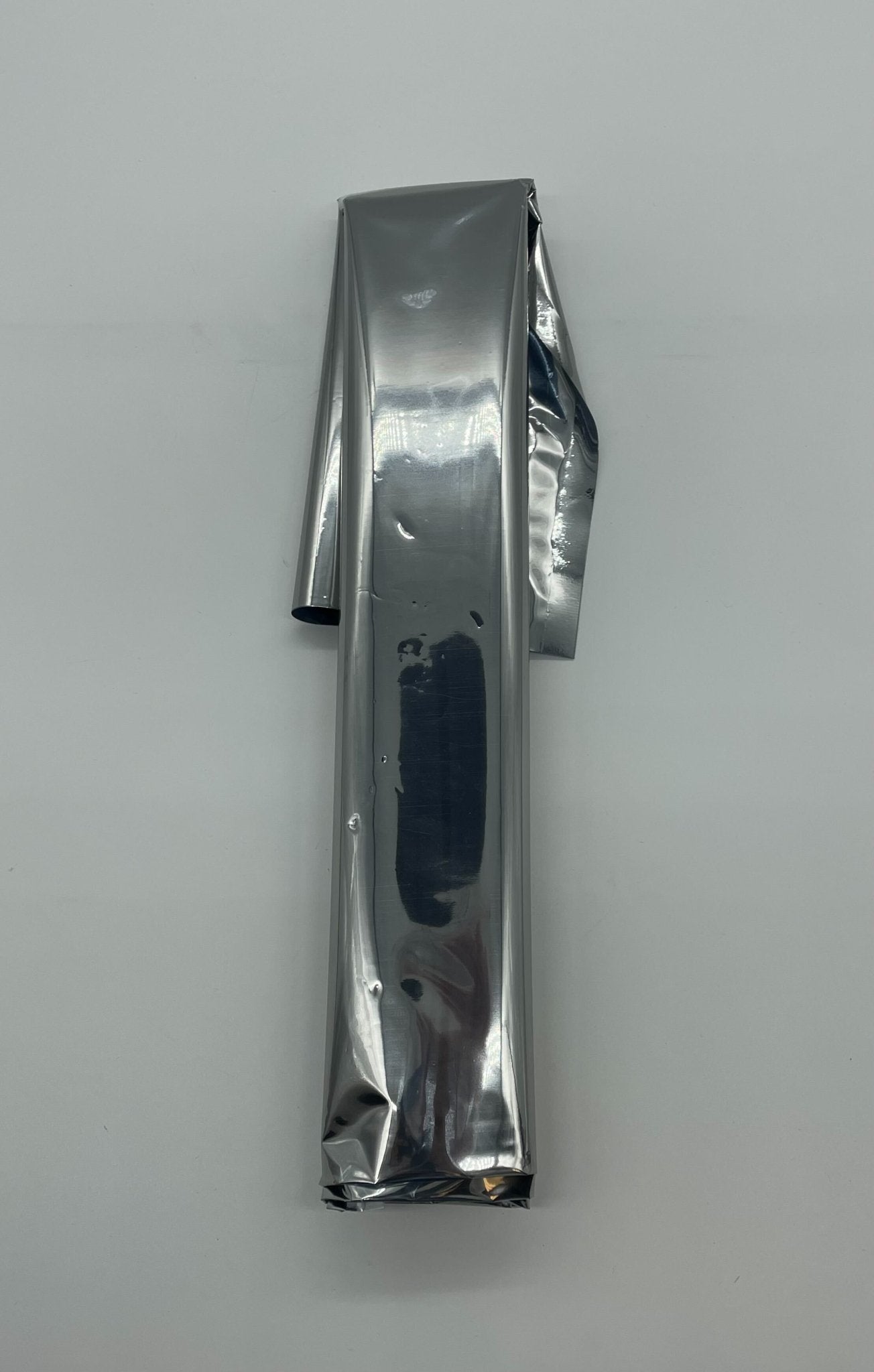

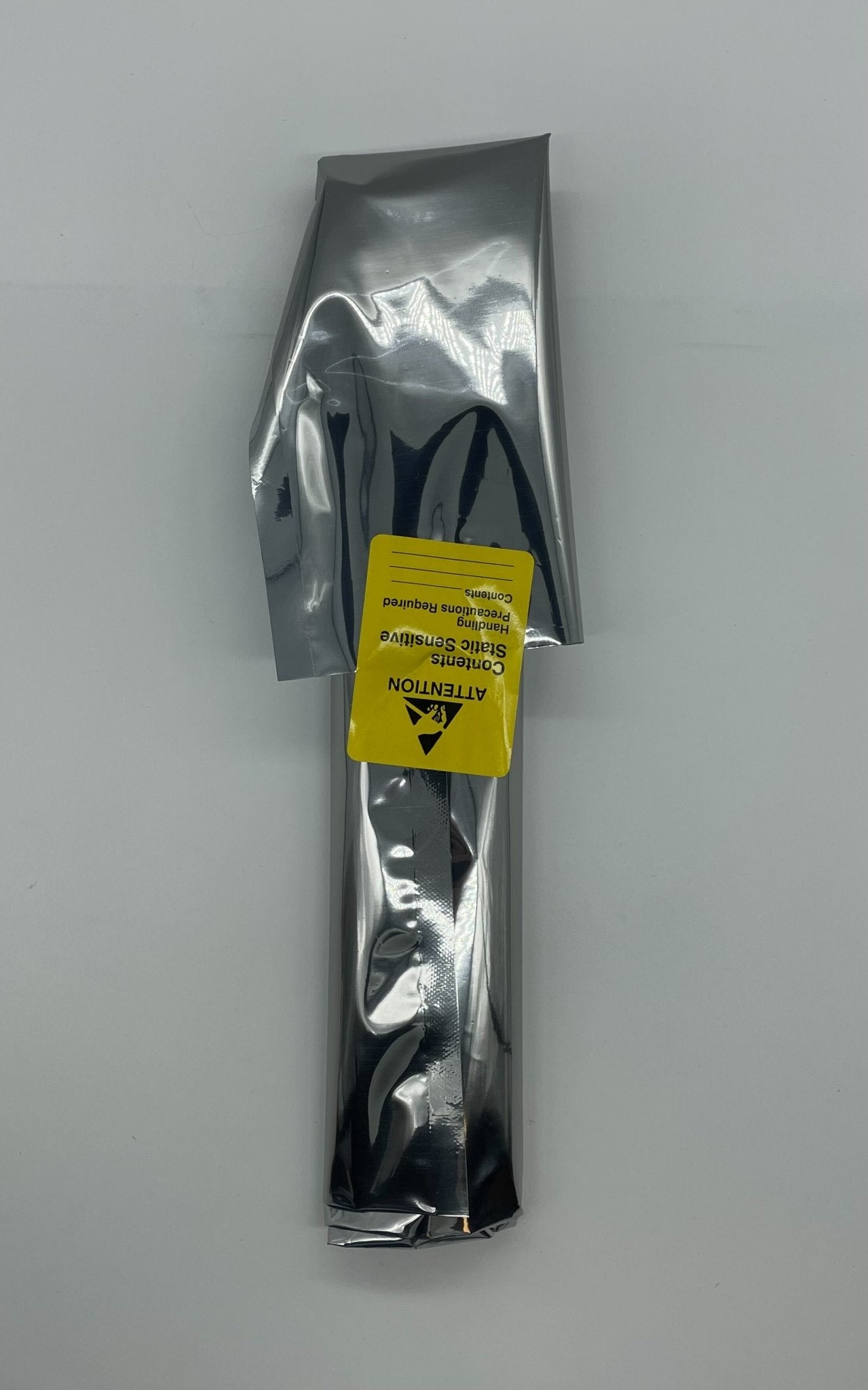

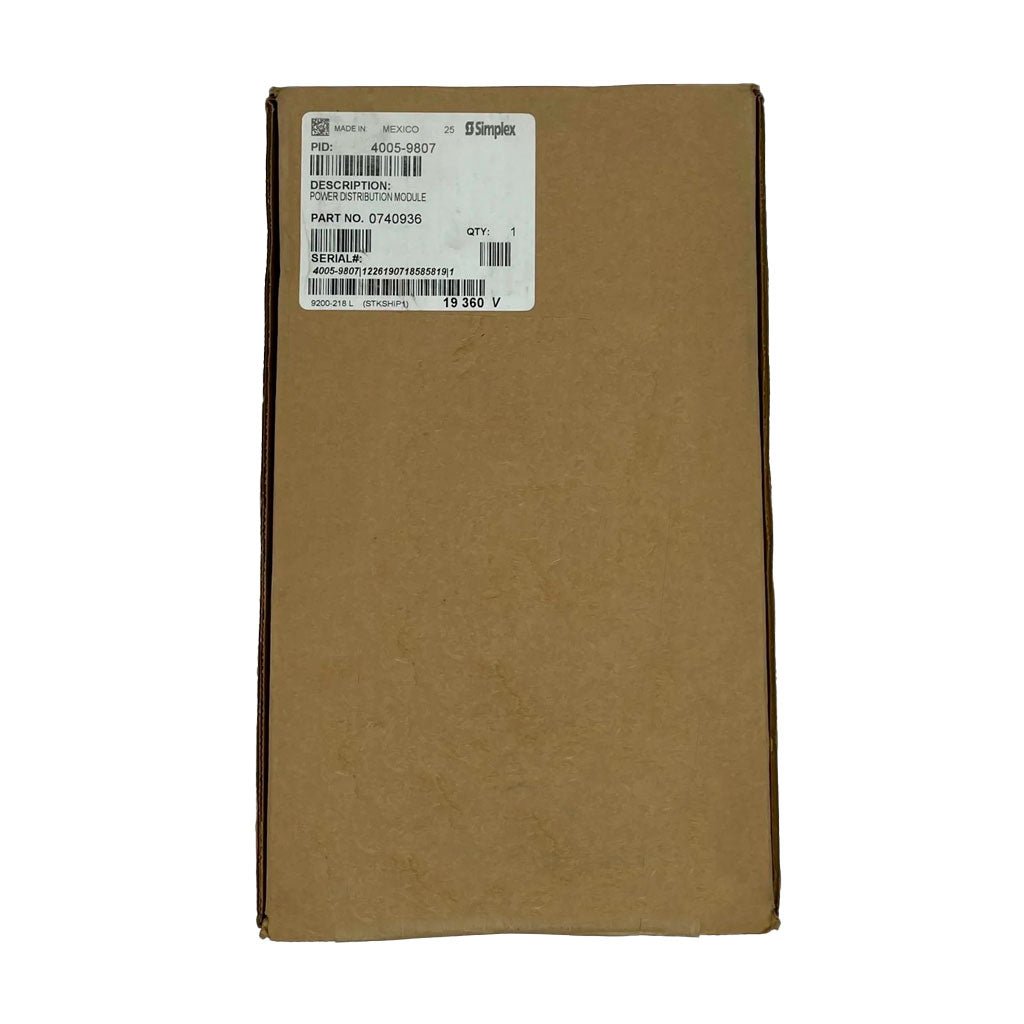

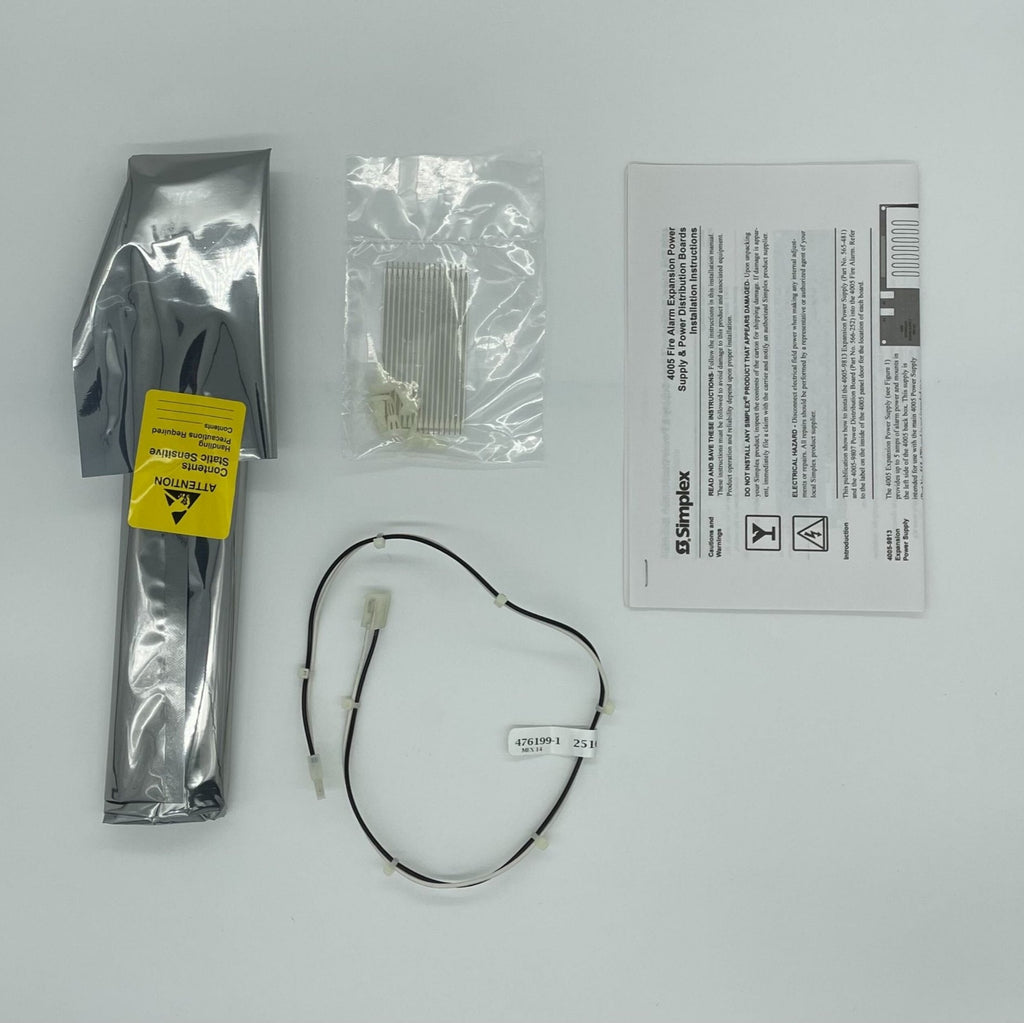

Simplex 4005-9807 Power Distribution Module
The 4005-9807 is the expansion power distribution module for the Simplex 4005 fire alarm control panel. It adds five more plug-in module slots, bringing the panel to ten, and mounts on the left side of the 4005 chassis. It is required when more than five plug-in modules are used or when the 4005-9813 expansion power supply is connected.
Key Features
- Extends 4005 capacity to ten plug-in modules
- Mounts on the left side of the 4005 chassis
- Required when the plug-in module count exceeds five and/or for connection of the 4005-9813 Expansion Power Supply
- Maximum one per panel
Specifications
| Slots added |
5 |
| Maximum quantity per panel |
1 |
| Board part number |
566-252 |
| Installation instructions |
574-072 |
Compatible With
- Simplex 4005 Series fire alarm control panels
- Simplex 4005-9813 Expansion Power Supply
