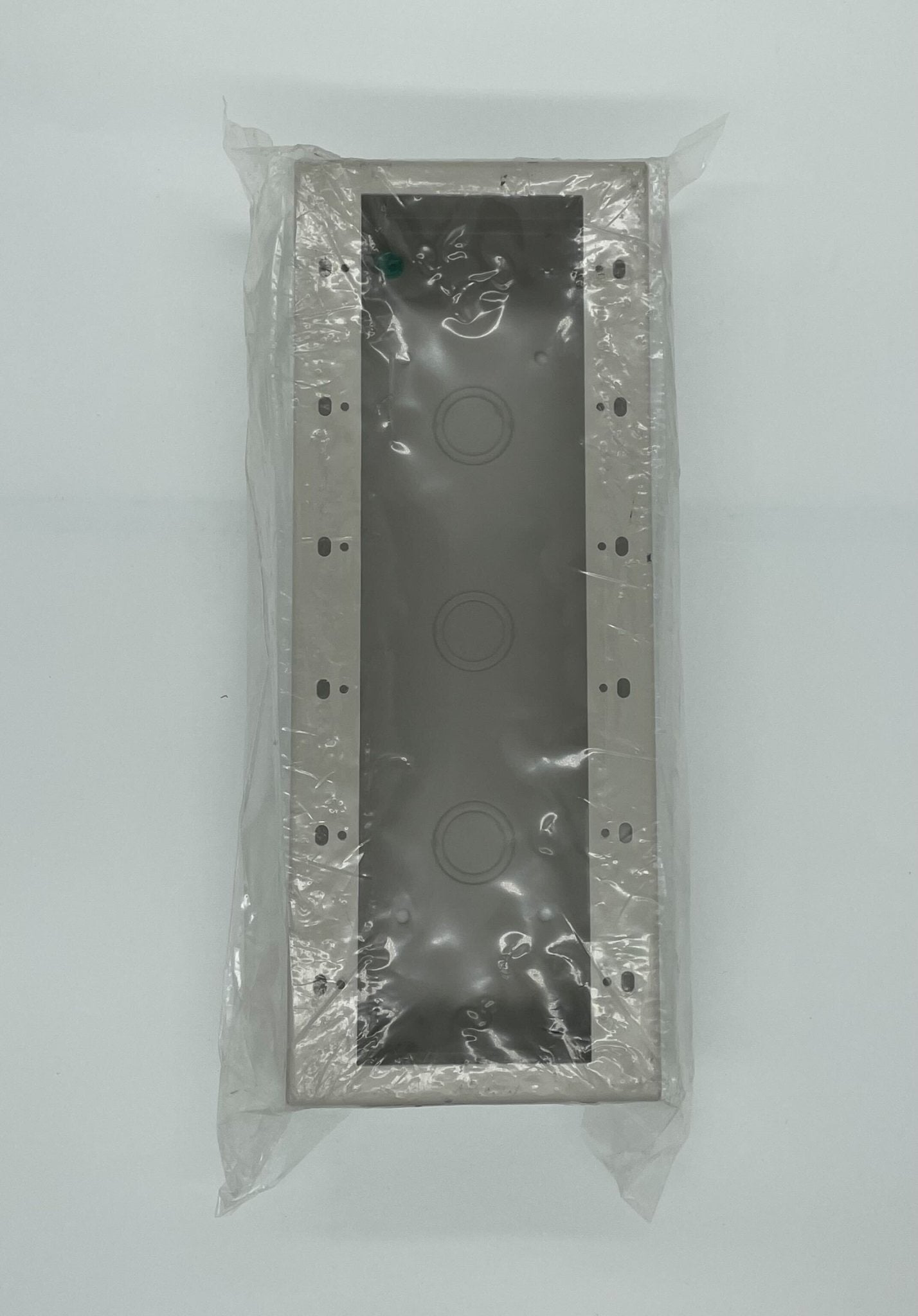

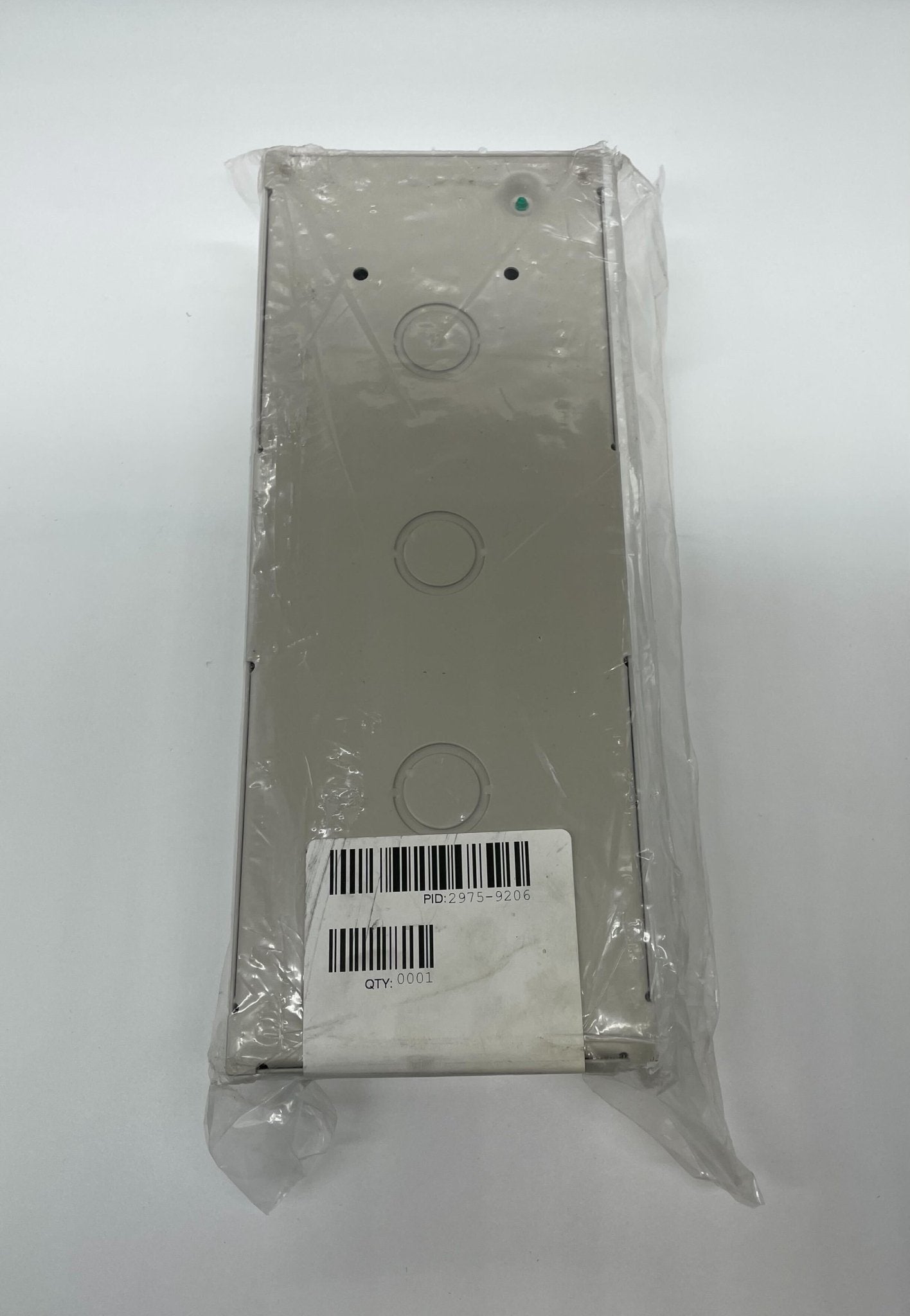

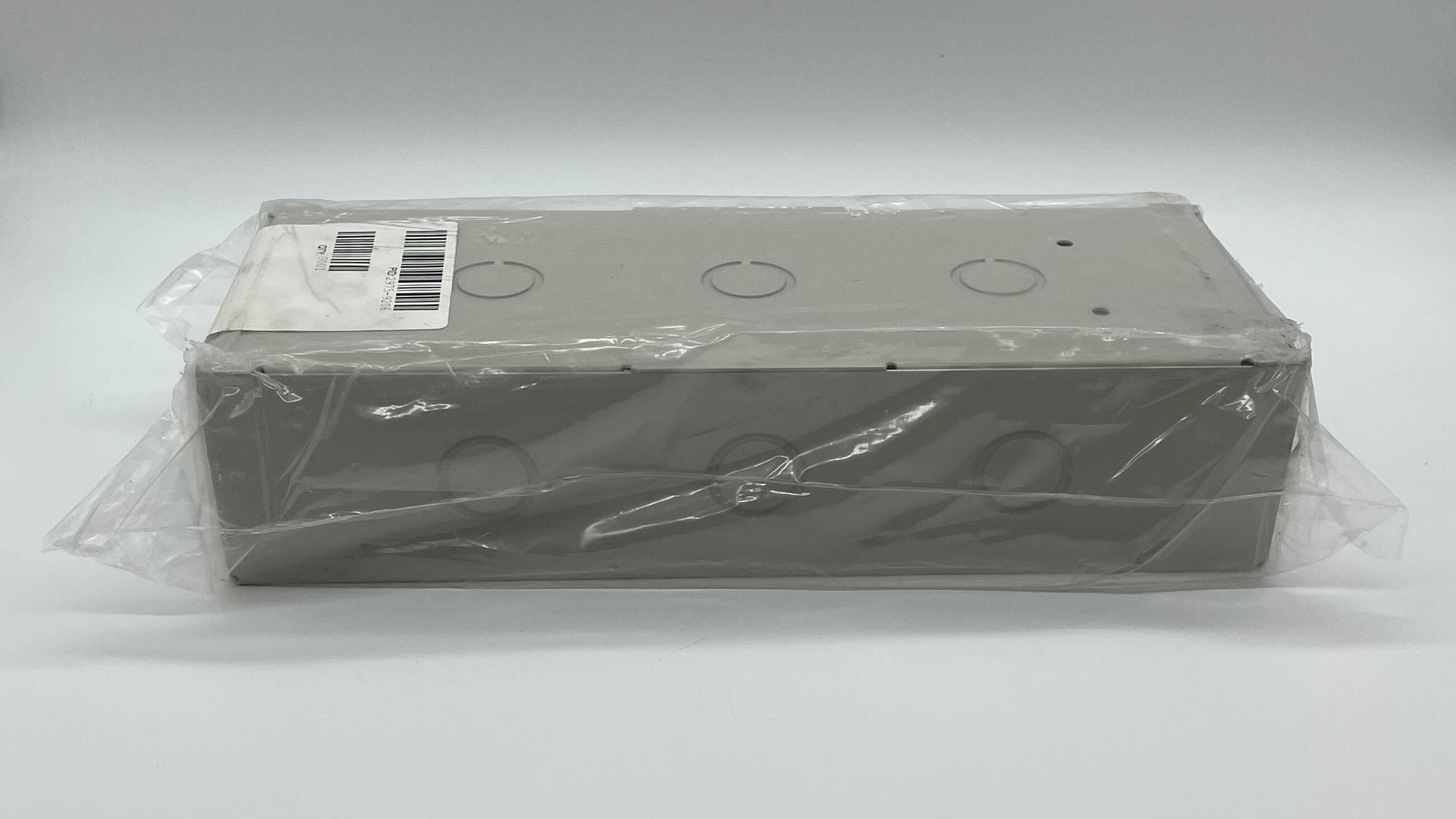

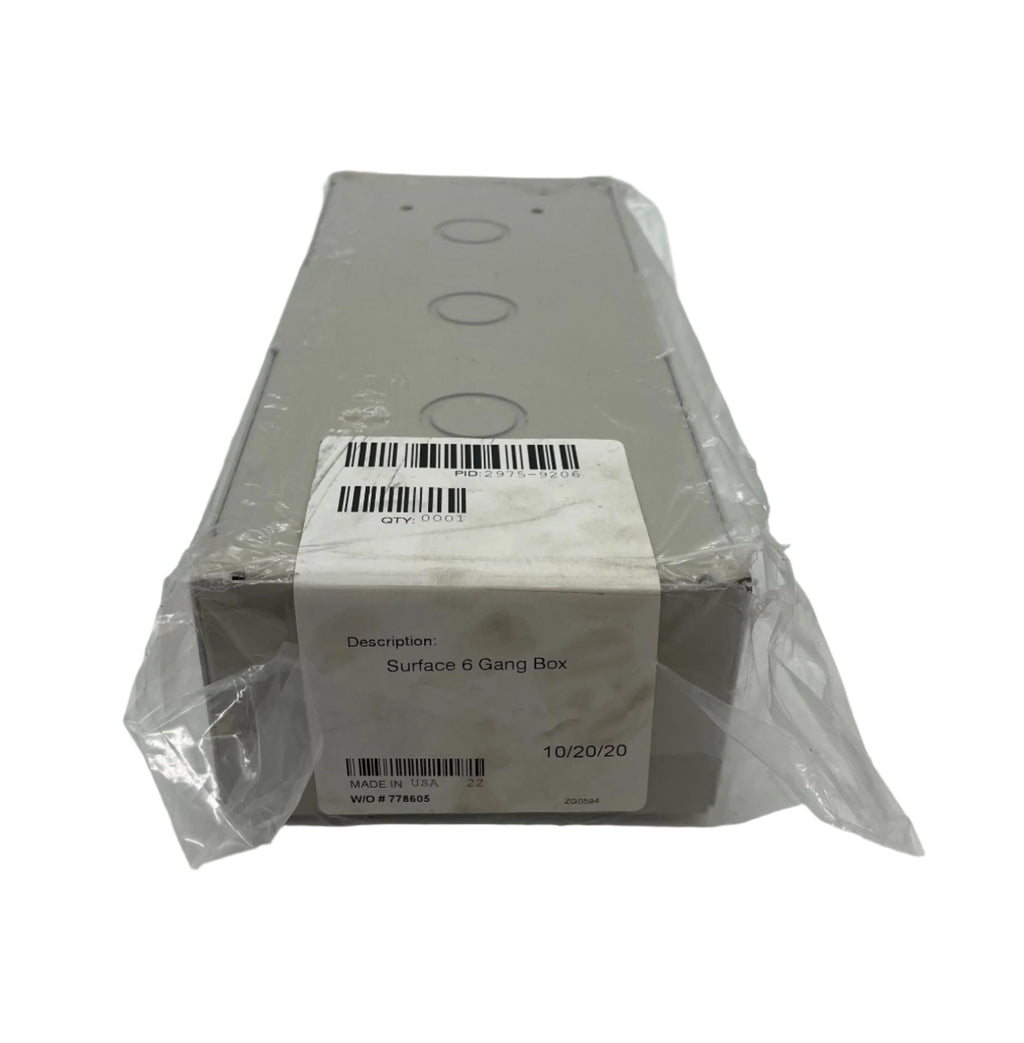

Simplex 2975-9206 — painted steel surface mount box, ivory finish, for the six-gang Simplex remote annunciators and command units.
These annunciators are built to a six-gang trim and are normally recessed on gang boxes supplied by others. Where there is no wall cavity, this box is the surface-mount alternative, ordered separately from the unit it carries. Simplex names it against the 4602-9101 Status Command Unit, the 4602-9102 Remote Command Unit, the 4603-9101 LCD Annunciator for 4100ES panels and the 4606-9101 for 4010 and 4006 panels.
- 11-31/32 in. W × 4-5/8 in. H × 2-3/4 in. D (304 × 117 × 70 mm)
- Painted steel, ivory finish
- Takes the six-gang annunciator trim, 11-13/16 × 4-1/2 in.
- Flush alternative is a six-gang box by others: a Steel City GW-635-G masonry box, or six RACO 590 gangable switch boxes
- Simplex directs that box choice be checked against the assembly layout before the conduit entrance is located
The other 2975 boxes serve a different line: 2975-9042 is the flush box for bells, horns and chimes, and 2975-9045 the flush box for 6 in. bells.
