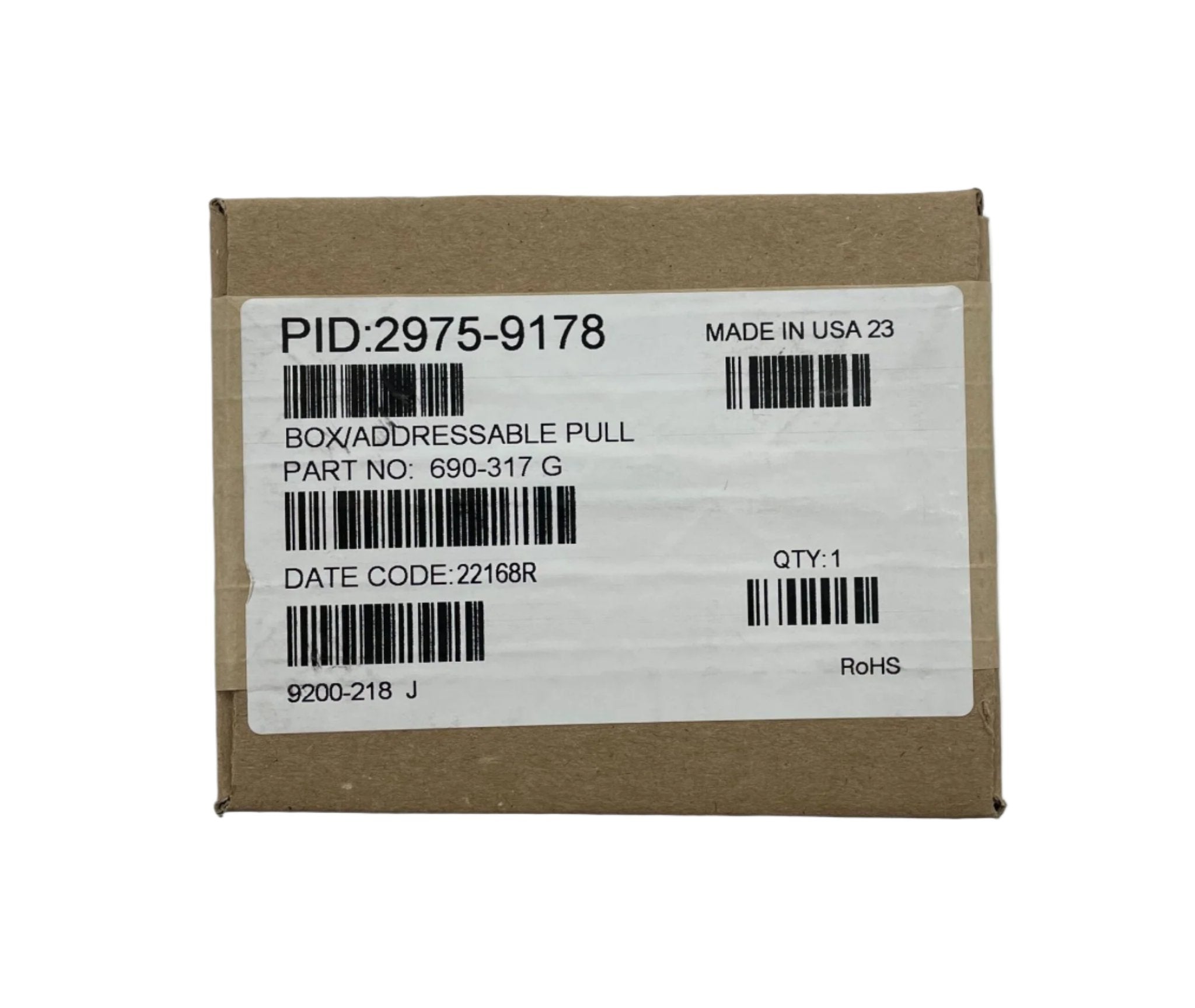

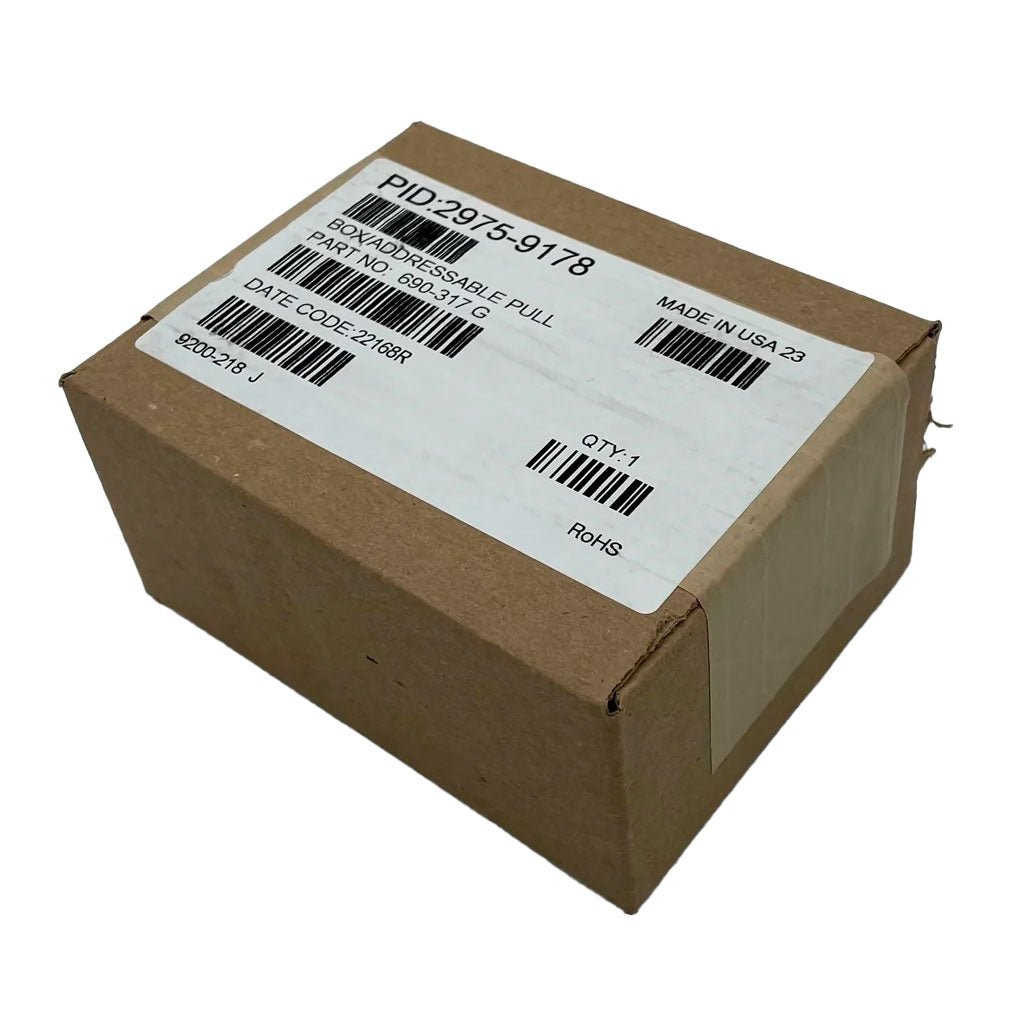

Simplex 2975-9178 — red steel surface mount back box for 4099 Series addressable manual stations.
On block, masonry or any wall where conduit is run exposed, there is nothing to recess a pull station into, so the station mounts to this box instead. Simplex shows it as the preferred surface box for the 4099 Series: knockouts top and bottom for conduit, and enough depth for the station cover, which hinges open for wiring and for setting the address DIP switch.
- Surface mount steel box, red
- 5-3/16 in. H × 4 in. W × 2-3/16 in. D (132 mm × 102 mm × 56 mm)
- Knockouts located top and bottom
- For Simplex 4099 Series addressable manual stations: 4099-9001, 4099-9002, 4099-9003 and 4099-9020
Box only — the pull station is ordered separately. For threaded 3/4 in. conduit entries the cast aluminum equivalent is the 2975-9022; for a semi-flush retrofit to an existing two gang switch box, use the 2099-9813 trim plate instead.
Documents
FAQ
Which pull stations fit this box?
Simplex lists the 2975-9178 as the surface mount box for the IDNet 4099-9001, 4099-9002 and 4099-9003 addressable stations and for the MX 4099-5214, 4099-5215 and 4099-5216 stations.
Is the pull station included?
No. The 2975-9178 is the box only; the station is ordered separately.
Is there a cast aluminum version?
Yes. The 2975-9022 is the red cast aluminum surface mount box.
What if I want a semi-flush mount?
Use the 2099-9813 semi-flush trim plate for a double-gang switch box instead.
