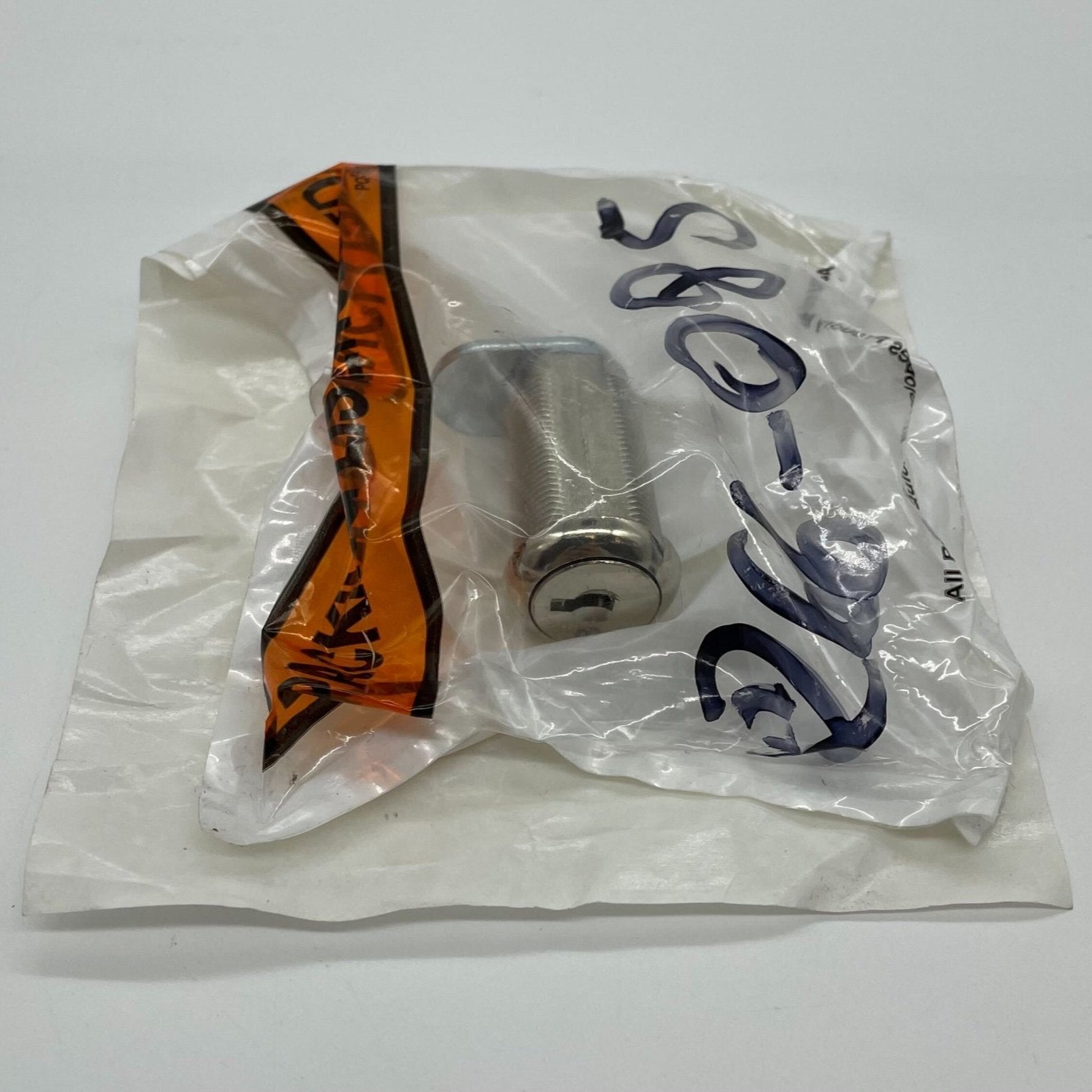

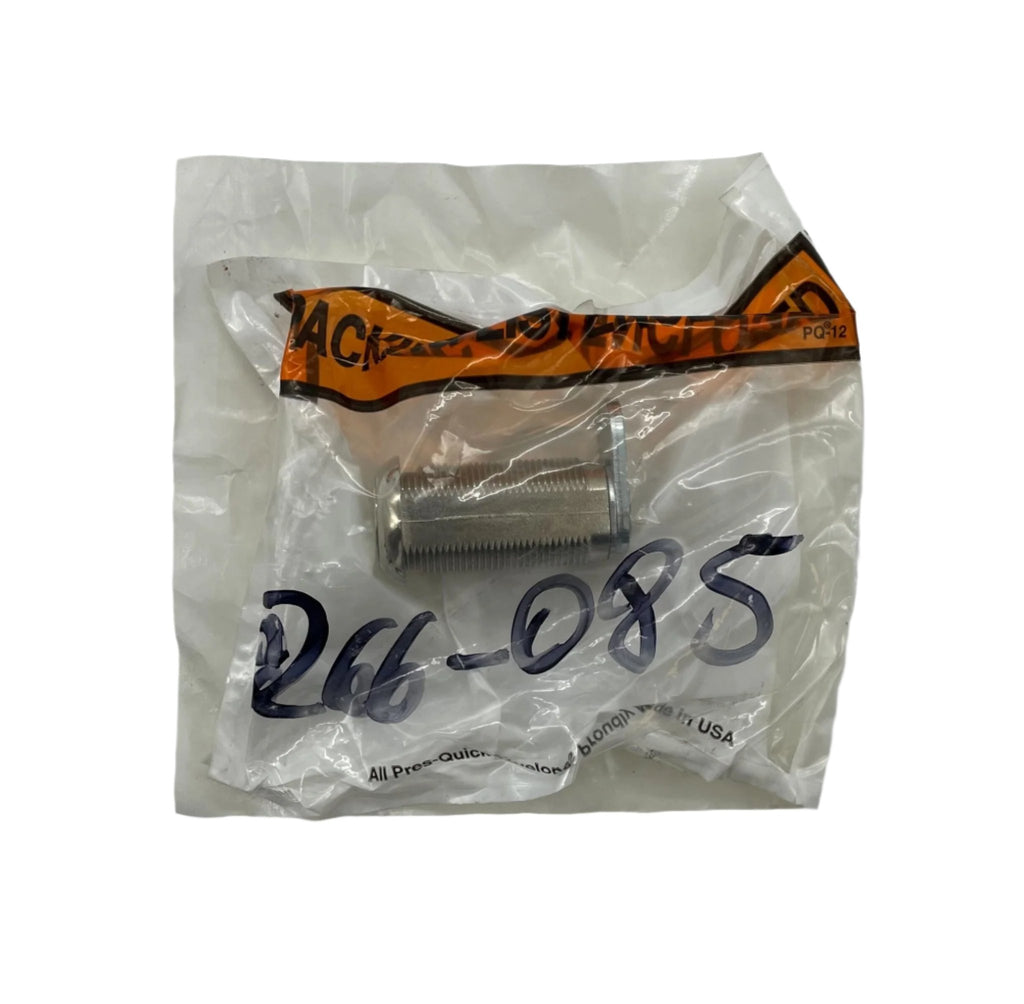

Simplex 266-085 — B keyed cam lock for the plastic (glass) front door of a 4100ES or 4100 series bay enclosure.
Simplex catalogues this part precisely: in service parts list 579-1006 Rev. C it appears under Door Accessories, immediately after the 4100-2104, -2105, -2106, -2124, -2125 and -2126 plastic door and dress panel assemblies, described as the B Cam Lock for Plastic door. The Johnson Controls product catalogue carries the same wording for PID 266-085. A cam lock is the barrel plus the rotating cam tongue that catches the back box lip. The matching key is the Simplex B key, part 252-019, the same keying used on 2099 break-glass stations.
- Simplex PID 266-085, catalogued as B Cam Lock for Plastic door
- B keying; operated by the 252-019 B key
- Listed for 1, 2 and 3 bay plastic (glass) doors, red and platinum
- Retaining clip for the cam lock is a separate part, 266-072
This is the 4100ES plastic door lock. For a 4100U or 4100 Legacy metal cabinet door Simplex lists 266-005 instead, and 266-006 B Lock Assy, 266-018, 266-021 and 266-058 are further B keyed parts at much the same price. Match the number stamped on the lock you are replacing rather than the key it takes.
