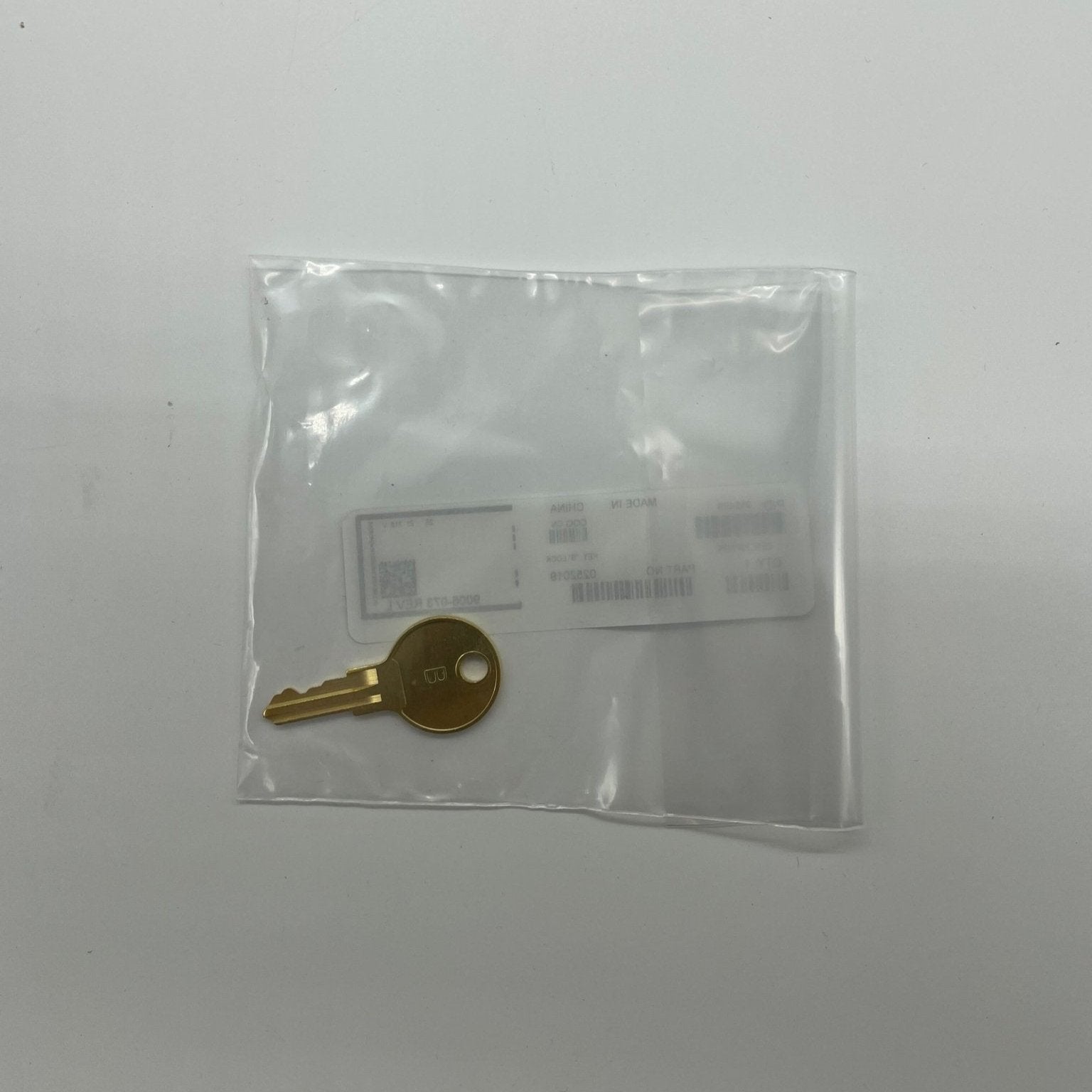

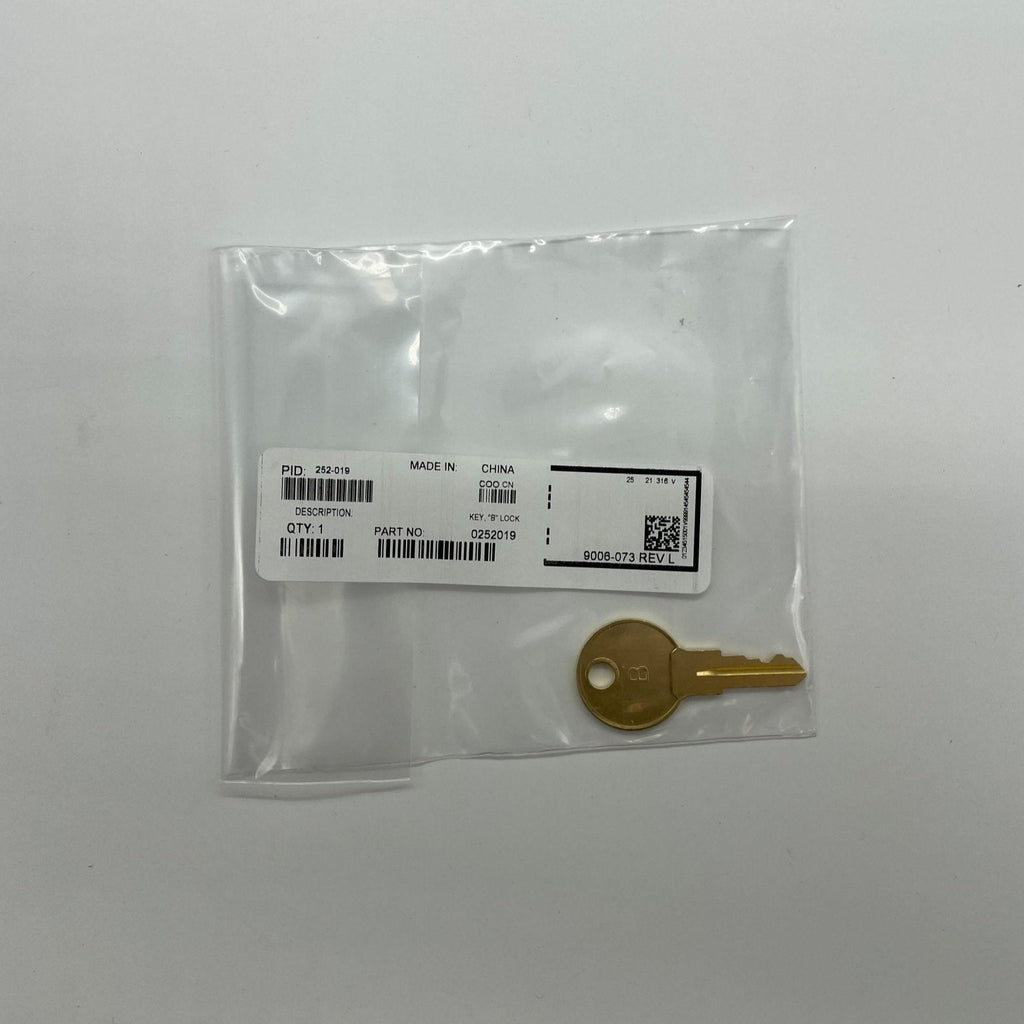

Simplex 252-019 — the B key used to reset a Simplex manual pull station after it has been operated.
A Simplex station latches when pulled, and the lever will not return until a key is turned in the tamper-resistant lock on the station. That lock is keyed the same as the Simplex fire alarm cabinet, so one key serves the panel and the stations on the system. The Simplex 2099 Series data sheet states a B key is provided with each station; the 252-019 is the spare or replacement key.
- Listed as the B key for manual station reset in the Simplex station datasheets
- Resets 2099 Series non-coded, non-addressable single and double action stations
- Resets 4099-9004, 4099-9005, 4099-9006 and 4099-9021 IDNet and MAPNET II stations
- Resets 4099-5214, 4099-5215 and 4099-5216 MX stations, where it also activates them
- Resets 2099-9149 and 2099-9152 manual release stations
- Keyed the same as the Simplex fire alarm cabinet lock
Not a consumable: after a breakglass station operates, 2099-9803 replaces the glass and 2099-9804 the break-rod, and the key still resets the lever. It is also not the 2099-9828 institutional cover kit.
Documents
FAQ
Does a station come with a key?
The Simplex 2099 Series data sheet states that a Simplex B key, which controls the lock, is provided with each station. Order the 252-019 as a spare or replacement.
How is a Simplex station reset?
When pulled, the alarm is mechanically latched and shown by the extended handle. Reset by unlocking and opening the station with the B key.
