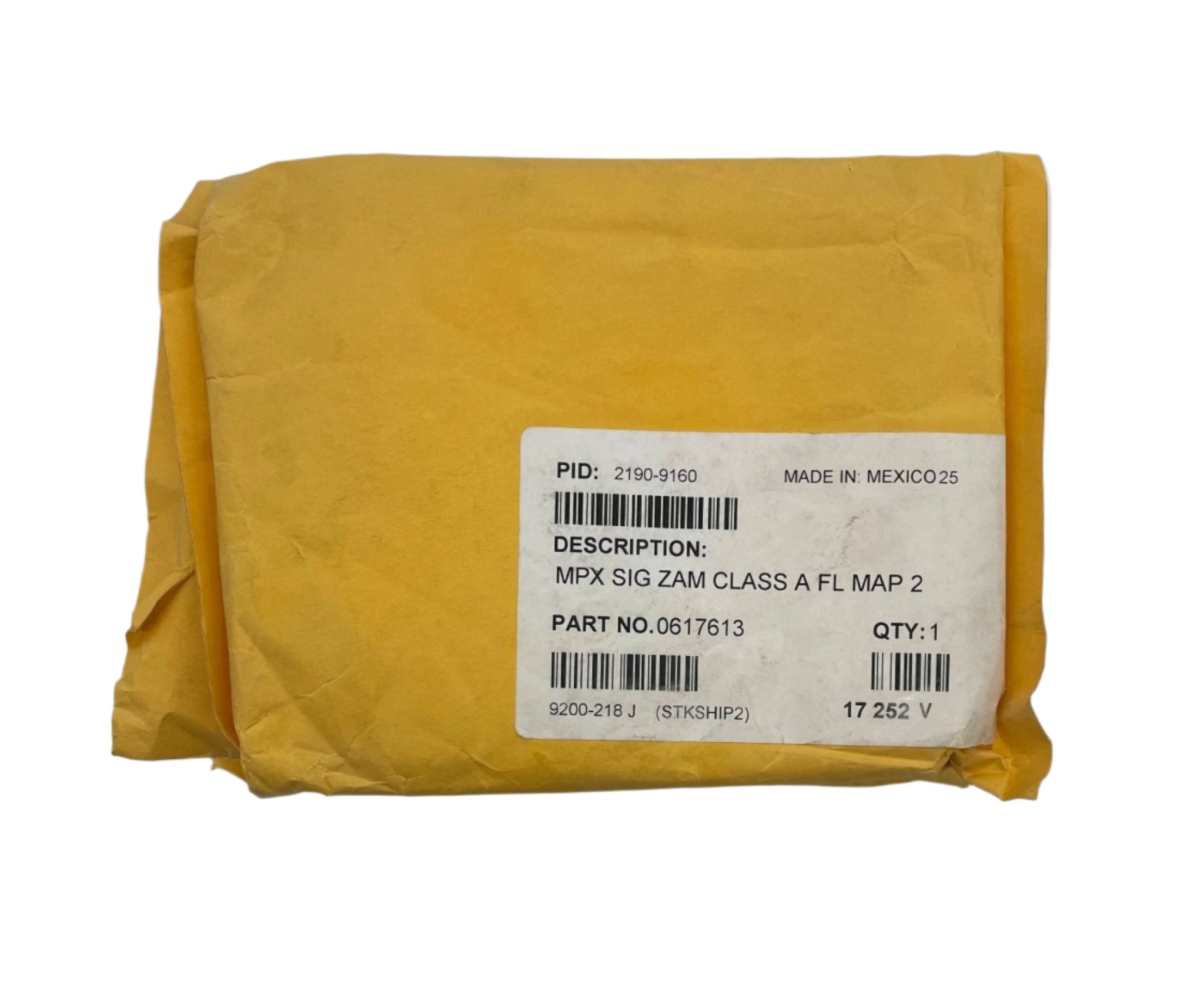

Simplex 2190-9160 MPX Signal ZAM Class A (Style Z) Flush MAPNET II Module
The Simplex 2190-9160 MPX Signal ZAM Class A (Style Z) Flush Module is a MAPNET II addressable zone adapter designed to provide a reliable interface between conventional notification appliance circuits and Simplex fire alarm control panels.
Engineered for high-performance life safety applications, this Signal ZAM enables full supervision and control of 24 VDC notification appliances, including horns, strobes, speakers, and firefighter telephone circuits. It converts conventional circuits into addressable points, allowing precise monitoring, faster troubleshooting, and improved system intelligence.
Fully compatible with Simplex MAPNET II communication systems, the 2190-9160 ensures seamless integration with panels such as the 4100, 4100U, 4120, and 4020 series. (docs.johnsoncontrols.com)
Key Features
• MAPNET II addressable Signal ZAM for notification appliance circuits
• Supports Class A (Style Z) wiring for enhanced circuit survivability
• Controls and supervises 24 VDC notification appliances and circuits
• Converts conventional NACs into fully addressable system points
• Flush-mounted design for clean professional installations
• DIP switch addressing for fast and simple configuration
• Screw terminal connections for secure and efficient wiring
• Designed for use with Simplex fire alarm control panels
Advanced Performance & Functionality
The Simplex 2190-9160 Signal ZAM provides intelligent supervision and operation of notification circuits, ensuring reliable activation and monitoring across your fire alarm system.
With support for Class A (Style Z) wiring, the module maintains circuit integrity even in the event of a single open condition, making it ideal for mission-critical environments such as commercial buildings, hospitals, and industrial facilities. (docs.johnsoncontrols.com)
Each module communicates directly with the control panel, reporting real-time status and enabling pinpoint diagnostics, which significantly reduces maintenance time and improves system uptime.
Technical Specifications
• Model: 2190-9160
• Type: Signal ZAM (Zone Adapter Module)
• Wiring Class: Class A (Style Z)
• System Type: MAPNET II Addressable
• Output Capacity: Up to 2 A at 24 VDC (notification circuits) (docs.johnsoncontrols.com)
• Mounting: Flush
• Addressing: DIP switch selectable
• Operating Temperature: 32°F to 120°F (0°C to 49°C) (docs.johnsoncontrols.com)
• Humidity: Up to 85% RH @ 30°C (docs.johnsoncontrols.com)
• Power: Requires external 24 VDC fire alarm power supply (docs.johnsoncontrols.com)
• Listings: UL 864 Listed, FM Approved, CSFM Listed (docs.johnsoncontrols.com)
Applications
• Notification appliance circuit (NAC) control and supervision
• Integration of conventional devices into addressable systems
• Commercial fire alarm system upgrades and retrofits
• Hospitals, schools, industrial sites, and large facilities
• Systems requiring Class A circuit redundancy
Why Choose the Simplex 2190-9160?
The 2190-9160 delivers the perfect balance between system flexibility, reliability, and advanced diagnostics. By converting conventional circuits into addressable points, it enhances visibility and control across your entire fire alarm system while maintaining compliance with stringent life safety standards.
Its Class A wiring capability, combined with MAPNET II communication, ensures superior fault tolerance and performance in critical applications.
