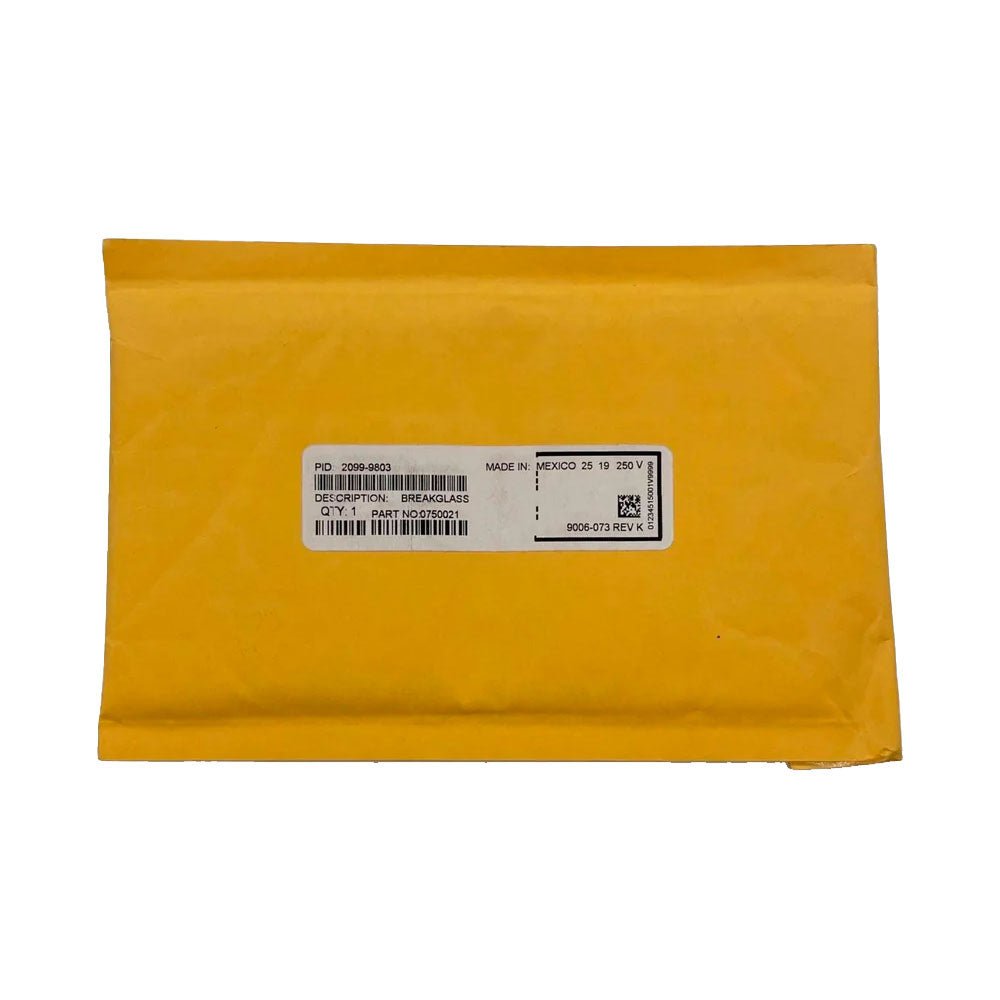

Simplex 2099-9803 — replacement breakglass for Simplex double action breakglass manual stations.
A double action breakglass station is operated by striking the front-mounted hammer to break the glass, which exposes the recessed pull lever; the lever then behaves as a single action station and latches out of the housing as a visible indication. The glass is consumed in that operation, so the station is not back in service until a new pane is fitted and the station is reset with a key.
- Listed by Simplex as replacement breakglass, standard, English
- Serves non-addressable double action breakglass stations 2099-9103 and 2099-9104
- Serves IDNet and MAPNET II addressable station 4099-9005 and its Portuguese and Spanish variants
- Serves MX Technology addressable station 4099-5215
- Station reset takes the Simplex B key, catalogue number 252-019
Do not confuse it with 2099-9804, the replacement break-rod fitted to the single action and push-type stations, or with 2099-9822, the retaining clip that holds the breakglass in place.
