Simplex 2099-9139 — non-coded dual action manual pull station with a PUSH lever, in cast metal construction.
Dual action means the top PUSH lever must be worked before the PULL lever can be grabbed. The cast metal line exists where a moulded station will not do; once pulled the alarm latches mechanically.
- SPST normally open contact, 1 A at 30 VDC or 125 VAC (UL, C-UL, CSFM); FM 1 A at 30 V
- Cast zinc housing and handles, red with white levers and white raised lettering
- Semi-flush on a single gang box 2-1/2 in. deep; 4-3/4 × 3-1/4 × 1-1/8 in. (121 × 83 × 28 mm)

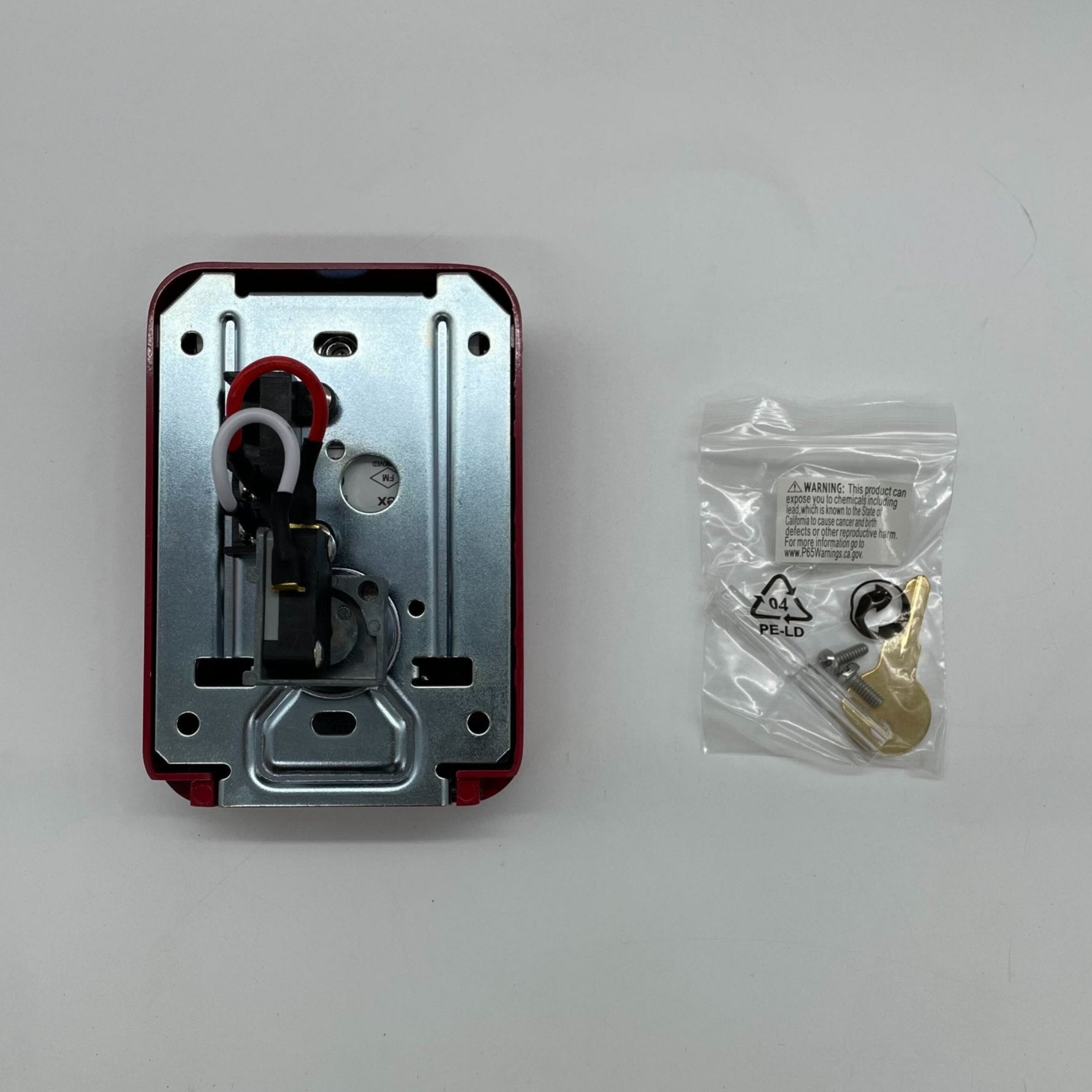

- Break rod status is visible from the front; it is optional, not required for operation, and a spare is supplied
- In and out terminals to 14 AWG; UL Standard 38; reset with the Simplex B key supplied
The station one digit away, 2099-9138, is the single action version of the same casting. The 2099-9144 is explosion-proof with DPDT contacts and its own enclosure. Surface boxes are the 2975-9211 weatherproof, NEMA 3R with its gaskets, and the 2975-9212 indoor steel box; replacement break rods are 2099-9829, twelve to a pack.
Documents
FAQ
How is the 2099-9139 operated?
It is a dual action station: the PUSH lever is operated first, then the handle is pulled. The alarm condition is mechanically latched and shown by the extended handle.
How is it reset?
Unlock and open the enclosure with the Simplex B key, which is provided with each station.
Can it be surface mounted or used outdoors?
It mounts semi-flush on a single gang box 2-1/2 in. deep. For surface mounting use the 2975-9212 indoor box, or the 2975-9211 weatherproof cast aluminum box, which gives a NEMA 3R rating with the supplied gaskets.
Is the break rod required?
No. A break rod is included and its status is visible from the front, but it is optional and not required for operation.
