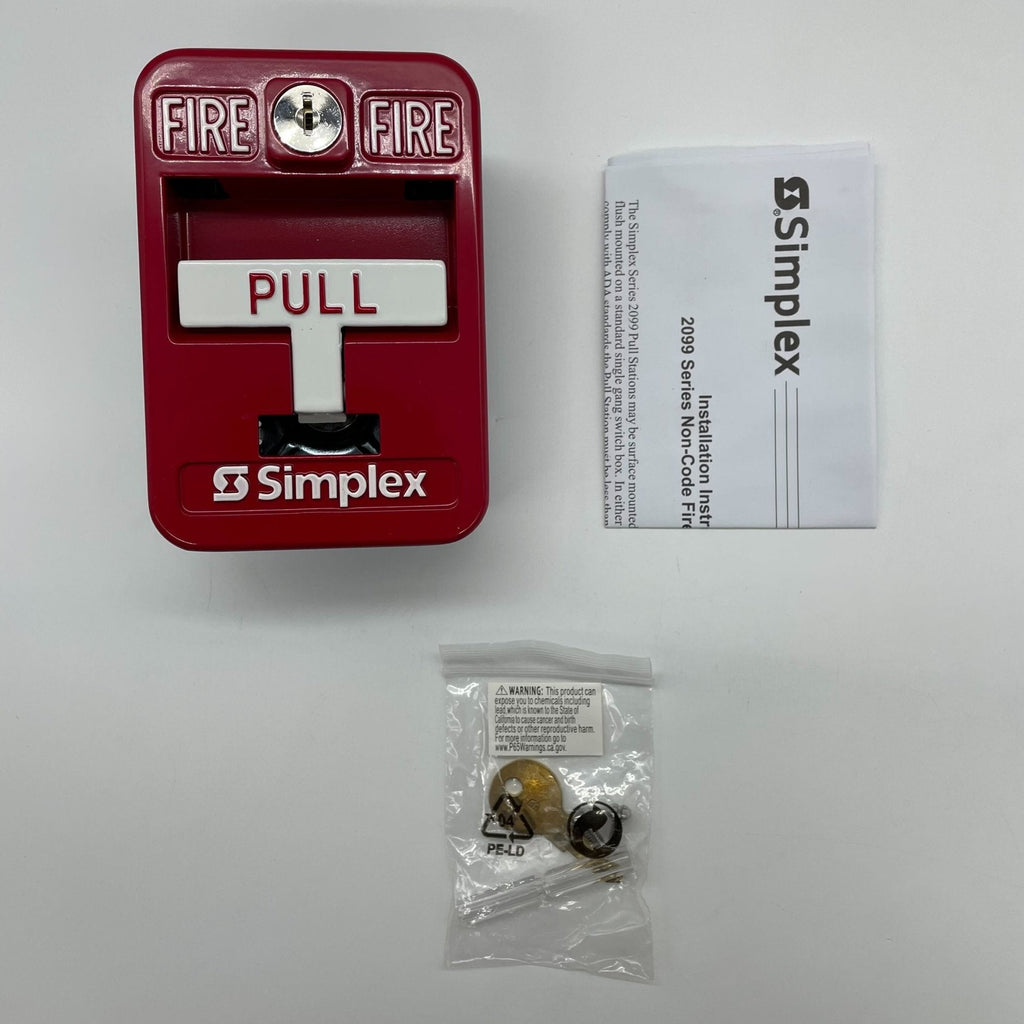

For locations that call for a cast-metal manual station, the Simplex 2099-9138 is a non-coded, single-action pull station with a SPST normally open contact. Pulling the handle latches the alarm mechanically, and the extended handle shows the station has been used. It can be made weatherproof for outdoor use by mounting it in the optional 2975-9211 box.
Key Features
- Single-action operation: pull the handle to activate
- Rugged cast-metal (cast zinc) housing and handle
- Reset by unlocking and opening the enclosure with the Simplex "B" key (included)
- Optional break rod (replacement included) is visible from the front and helps deter vandalism
- Operation meets ADA requirements
- NEMA 3R rating when mounted in the 2975-9211 weatherproof box with its gaskets
Specifications
-
Manufacturer: Simplex
-
Part Number: 2099-9138
-
Type: Non-coded single action manual station
-
Contact: SPST, N.O.
-
Contact Rating (resistive): UL/C-UL/CSFM: 1 A at 30 VDC or 125 VAC; FM: 1 A at 30 VAC/VDC
-
Construction: Cast metal; red housing with white lever and white raised lettering
-
Wiring: Terminal blocks for IN/OUT wiring, up to 14 AWG
-
Mounting: Semi-flush on a single-gang box 2-1/2 in deep, or surface with 2975-9211 (weatherproof) or 2975-9212 (indoor) box
-
Temperature: -40°F to 150°F with 2975-9211 box; 32°F to 140°F with 2975-9212 box
-
Certifications: UL 38; UL, C-UL, CSFM certified; FM approved
Documents
FAQ
Is the 2099-9138 weatherproof?
It reaches a NEMA 3R rating when mounted in the 2975-9211 weatherproof cast aluminum surface box with the supplied gaskets.
How is it reset?
Unlock and open the enclosure with the Simplex B key, which is provided with each station.
Is the break rod required?
No. The break rod is optional and not required for operation; an optional replacement break rod is included.
How does it mount?
Semi-flush on a single gang box 2-1/2 in. deep, or surface mount with the 2975-9211 or 2975-9212 boxes.
