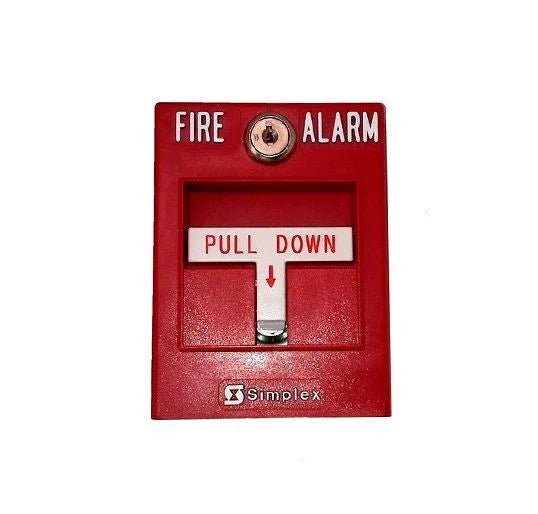

Simplex 2099-9102 — non-coded, non-addressable single-action manual fire alarm station with normally closed annunciator contacts.
The Simplex product-selection chart lists 2099-9102 in the single-action table, with MEA acceptance and a Yes in the annunciator contacts N.C. column. A firm downward pull latches the lever in the alarm position, where it protrudes from the housing as a visible indication until a key reset returns it.
- Single action, general alarm; annunciator contacts N.C.
- UL certified to Standard 38; ULC and CSFM certified, FM approved, MEA (NYC) acceptance
- Surface mount takes a 2975-9178 box; semi-flush takes a 4 in. square box with a single-gang cover plate
- Screw terminals for in/out wiring, 18 to 14 AWG
- 32° to 120°F (0° to 49°C) indoor; up to 93% RH at 100°F
- Housing 5 in. H × 3 3/4 in. W × 1 in. D, red polycarbonate
The 2099-9104 sits in a different table: it is a double-action break-glass station with normally OPEN annunciator contacts. In the same table, 2099-9101 is the normally open version, 2099-9754 has no annunciator contacts, and 2099-9107 swaps in a pre-signal circuit.
