Simplex 2099-9101 — non-coded, non-addressable single-action manual pull station with normally open annunciator contacts.

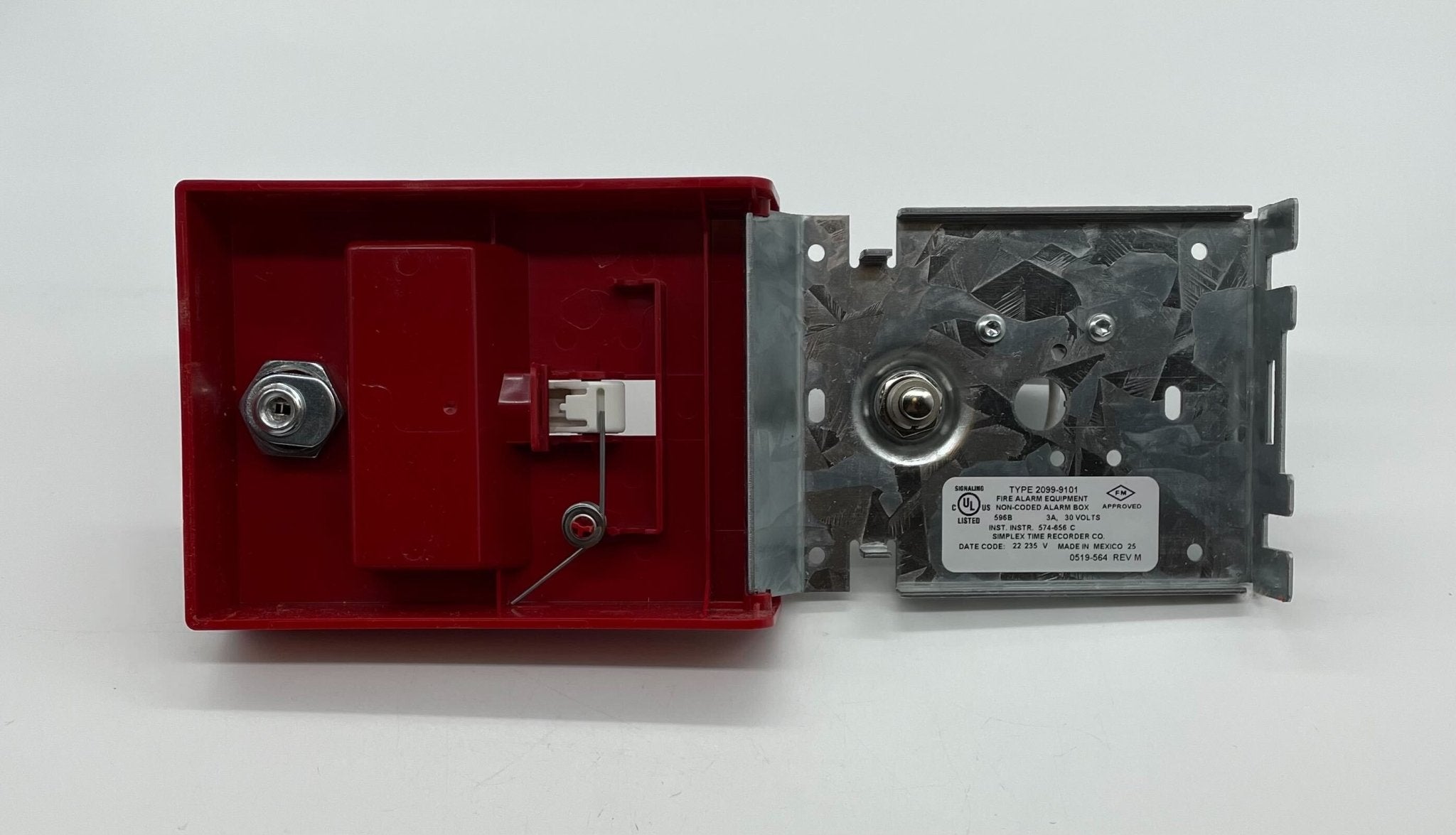

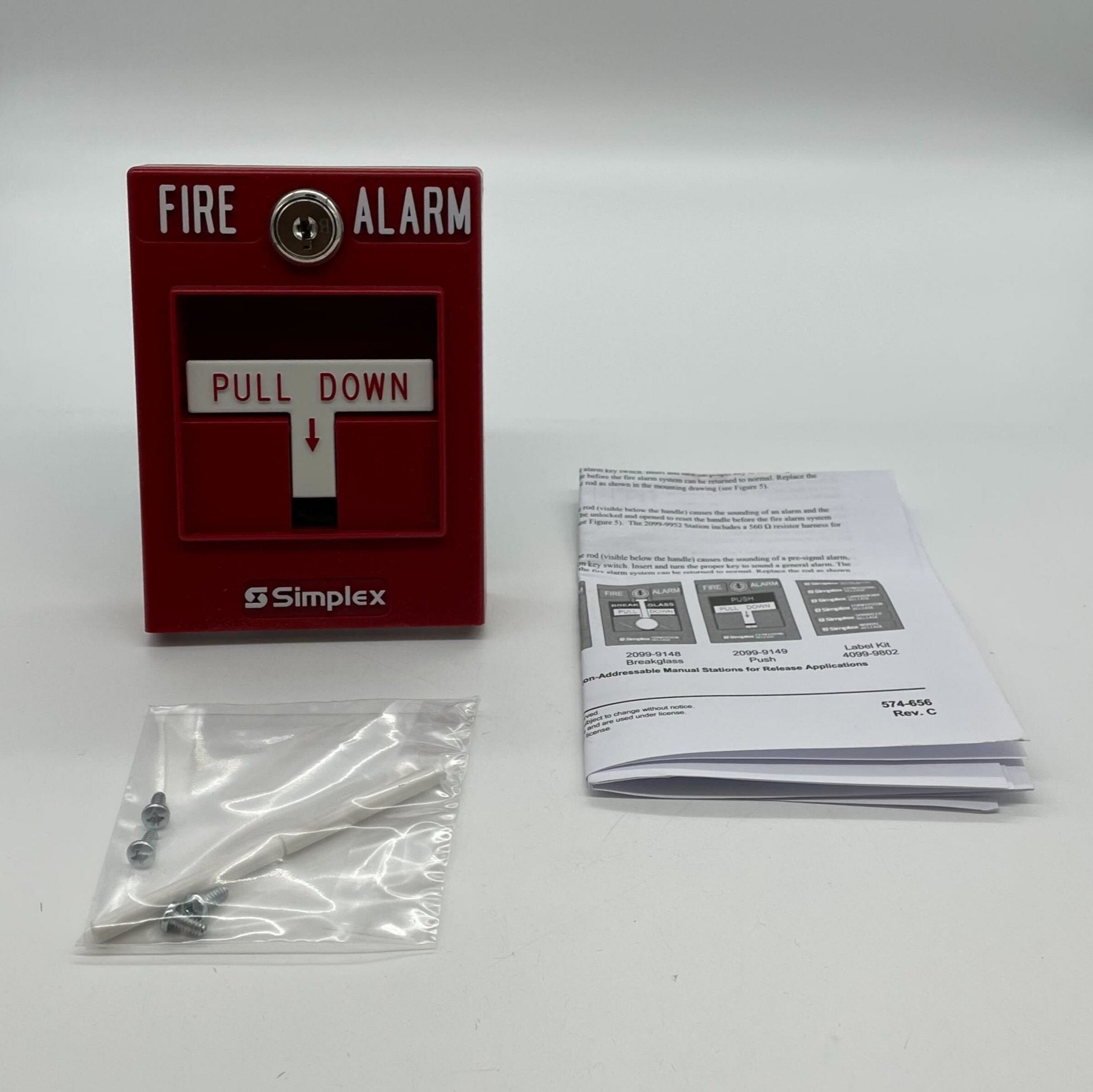

A general-purpose manual fire alarm station. A firm downward pull latches the alarm switch and leaves the lever protruding as a visible sign the station was operated; the plastic break-rod below the lever is optional. Reset requires the Simplex B key, keyed the same as Simplex fire alarm cabinets.
- Single action, general alarm, normally open annunciator contacts

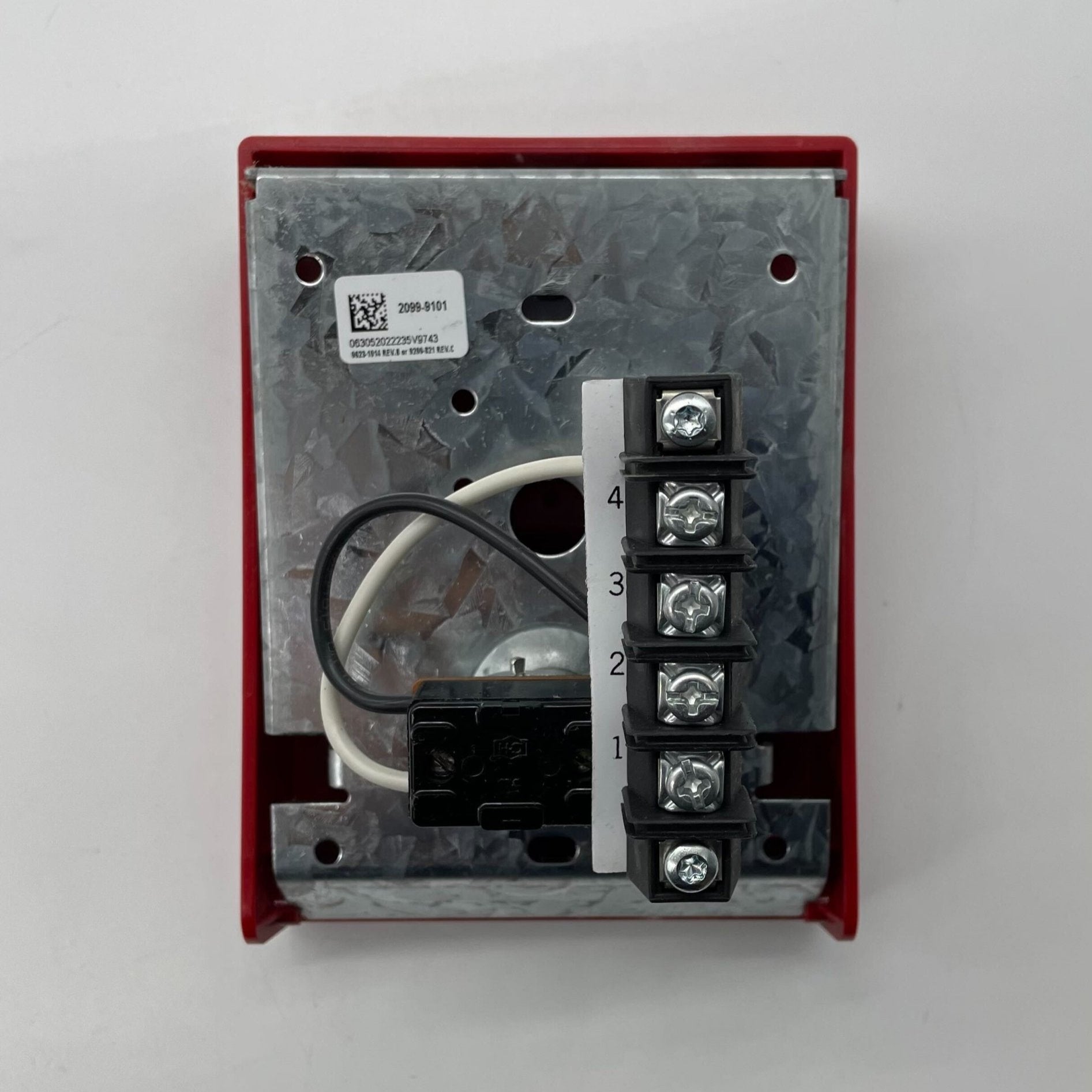

- Screw terminals for in and out wiring, 18 AWG to 14 AWG
- High impact polycarbonate housing and lever, red with white raised lettering
- 5 in. H x 3 3/4 in. W x 1 in. D (127 mm x 95 mm x 25 mm)
- 32 to 120 °F (0 to 49 °C) indoor; up to 93 percent RH

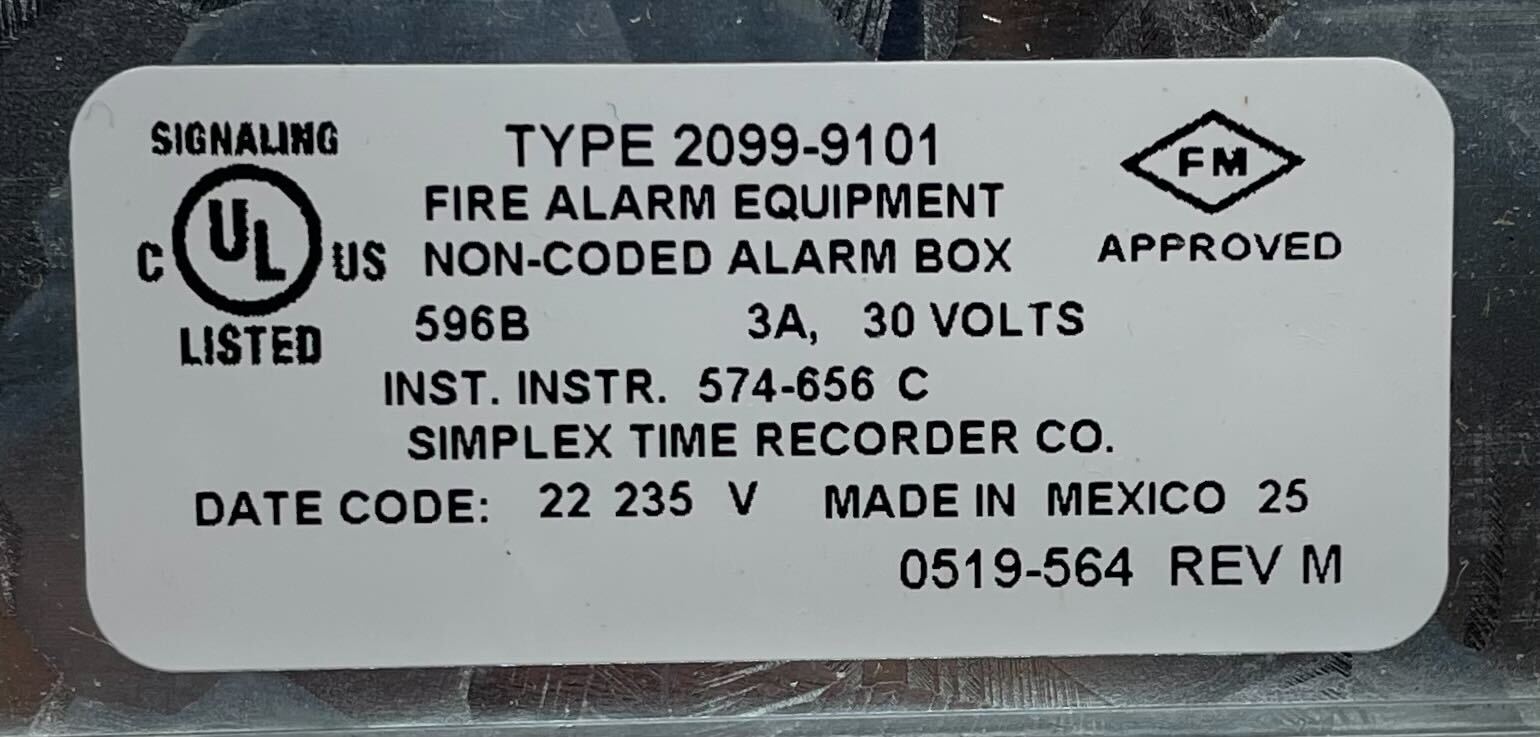

- Listed to UL Standard 38; UL, ULC, CSFM listed; FM approved
The 2099-9102 is the same station with normally closed annunciator contacts and the 2099-9754 carries none. The cast metal line is a separate family: 2099-9138 and 2099-9139 are cast zinc single and dual action stations with SPST contacts, and 2099-9144 is explosion-proof, NEMA 4X, with DPDT contacts.
