Simplex 2084-9008 Firefighter Phone Assembly, Locked Door, Surface Mounting, Break-Rod Door with Handle, Armored Cable Phone

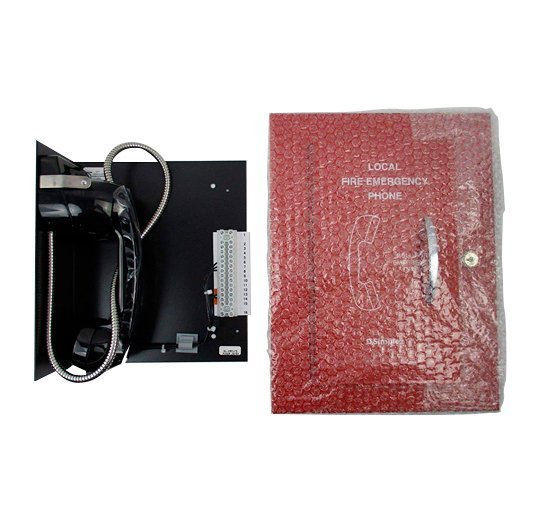

The 2084-9008 is a Simplex remote firefighter telephone assembly for surface mounting, with a locked red door that has a pull handle and break-rod, and an armored-cable handset. It provides two-way communication with the master phone at the Firefighter Telephone Control over a supervised two-wire circuit. The assembly includes the phone, mounting plate and door; the 2975-9053 backbox is ordered separately.
Key Features
- Surface-mount door and trim, painted red, marked "LOCAL FIRE EMERGENCY PHONE"
- Break-rod door latch with handle; a lock also allows authorized entry without breaking the rod
- Armored cable phone with voice and ear caps sealed with adhesive
- Call tone confirms the request when the remote phone calls the master
- Two-wire telephone circuit is supervised and power-limited
- UL Listed to Standard 864; CSFM listed (listed under type 4590-CX)
Specifications
| Mounting |
Surface |
| Door |
Locked, break-rod with handle |
| Handset |
Armored cable, not push-to-talk |
| Required backbox |
2975-9053, red, 13 in. H x 9 11/16 in. W x 3 1/2 in. D (ordered separately) |
Compatible With
- Simplex 4100ES and 4100U Series Firefighter Telephone Controls
- Legacy 4100/4120 Series Firefighter Telephone Controls
- 2975-9053 backbox
