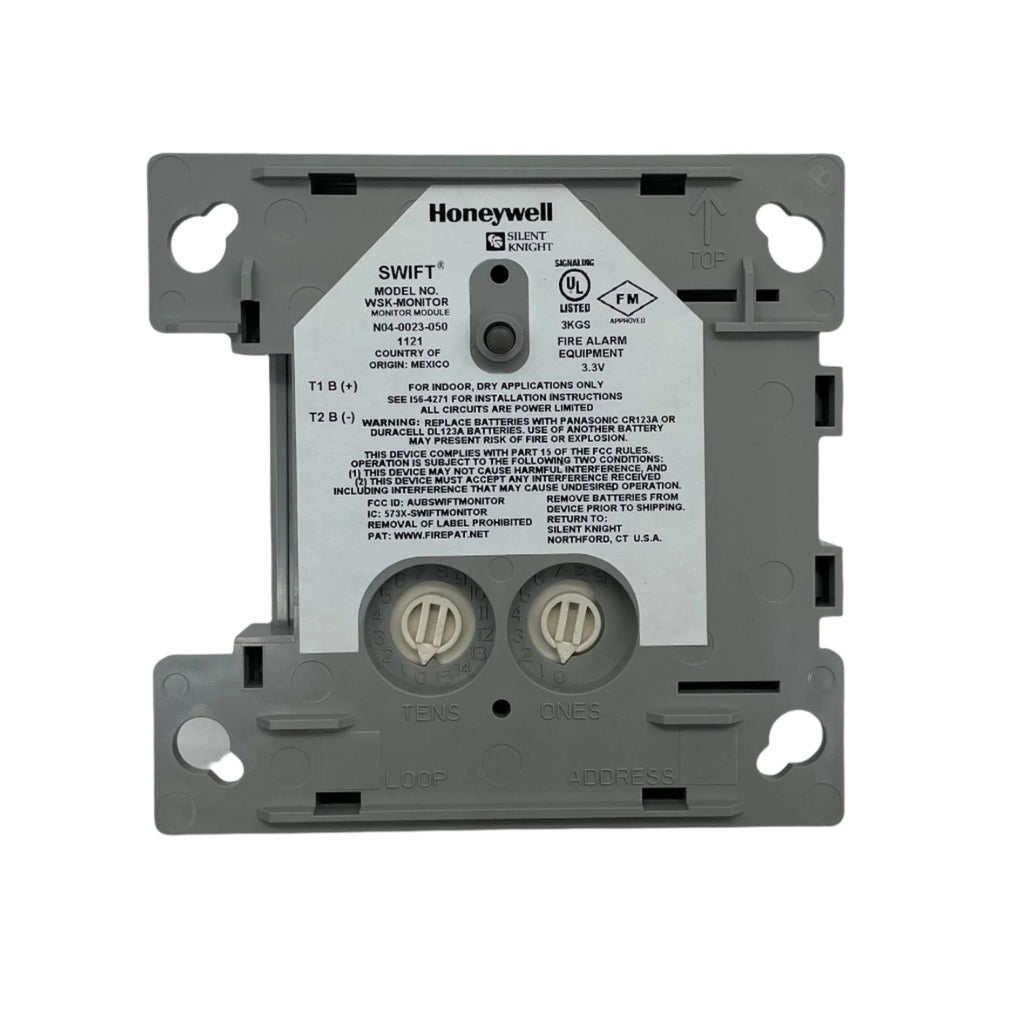

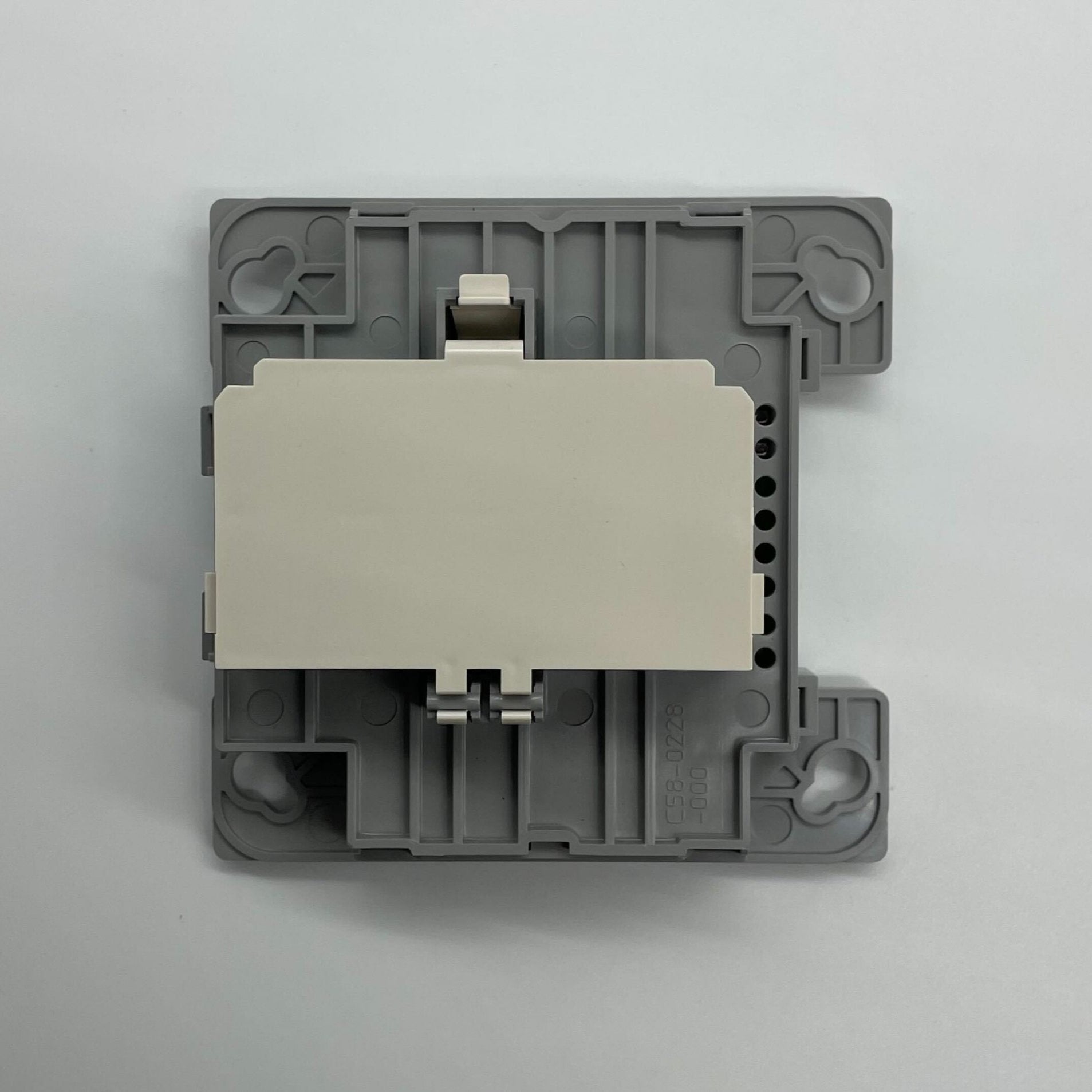

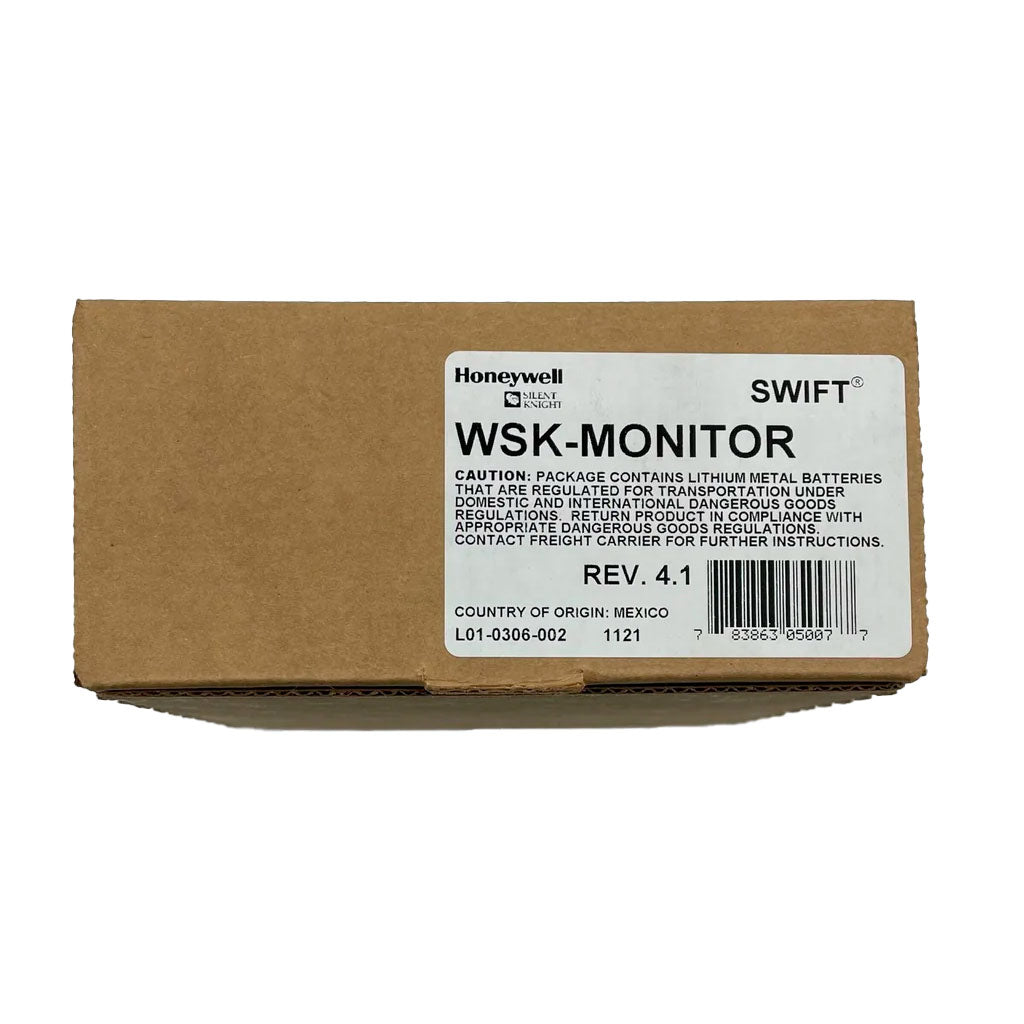

Silent Knight WSK-MONITOR — SWIFT wireless addressable monitor module for dry contact initiating devices.
It brings a contact device such as a waterflow switch, security contact or pull station onto a Silent Knight panel across the SWIFT mesh, so no cable is pulled back to the SLC. The input is non-latching and needs no reset. Each mesh needs one WSK-WGI gateway, which supports up to 49 SWIFT detectors or modules.
- Works with Silent Knight 6700, 6808, 6820 and 6820EVS panels via a WSK-WGI gateway
- Powered by four CR123A lithium cells, included, with about two years of life
- 902 to 928 MHz Class A mesh radio, transmit power 17 dBm
- End of line resistance 3.9 kΩ, maximum IDC wiring resistance 10 Ω, IDC voltage 3.2 V, average IDC current 5.5 µA

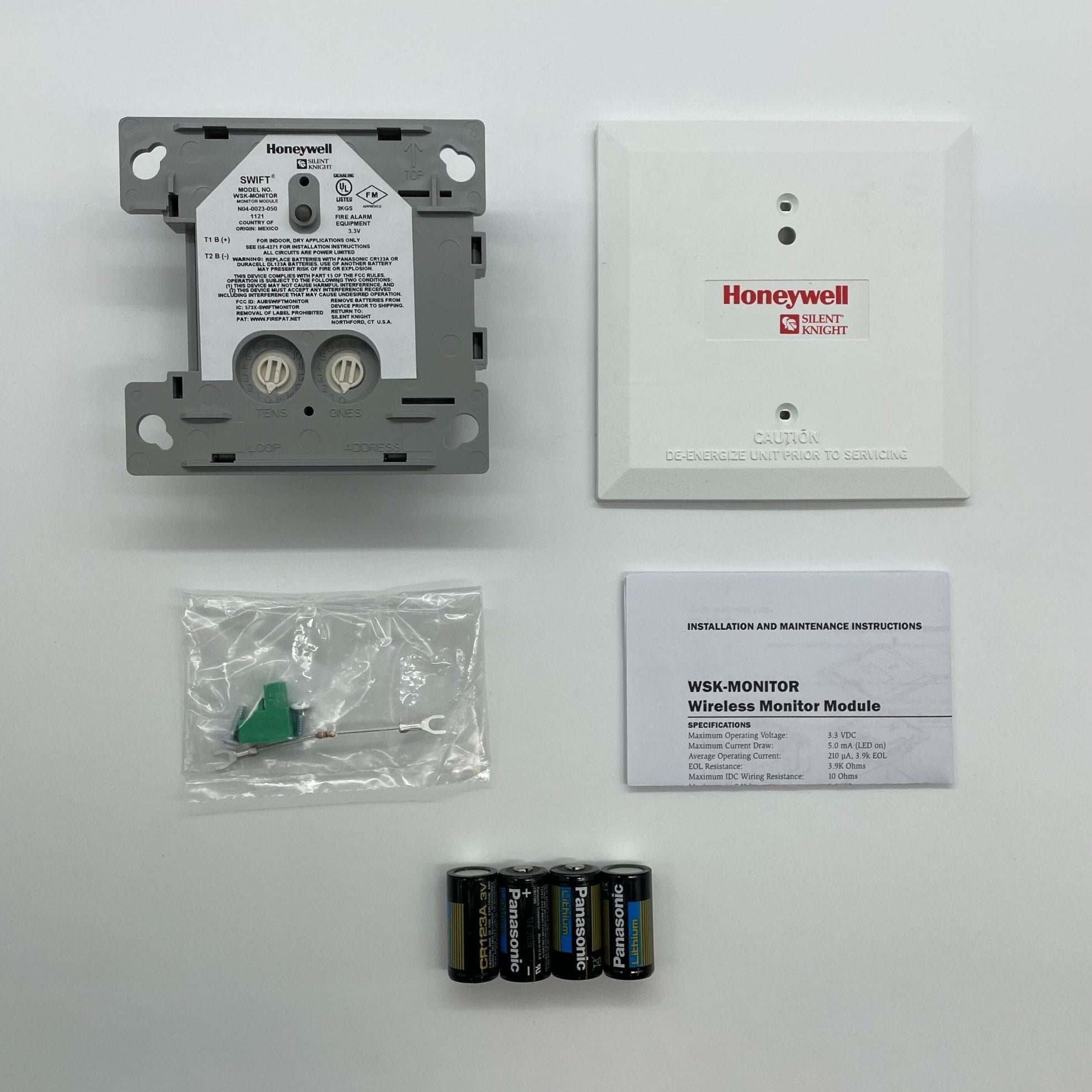

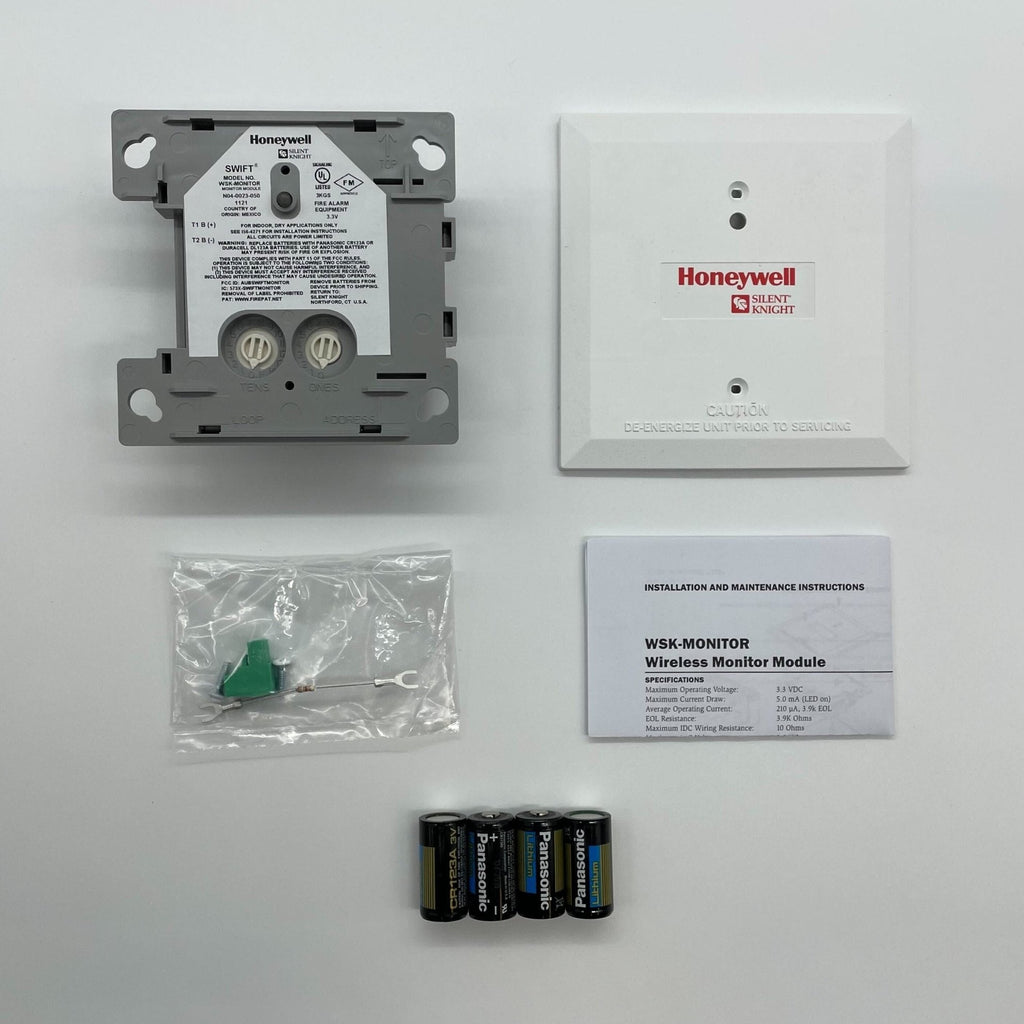

- Supplied with a cover carrying a built-in tamper magnet; SMB500-WH backbox recommended
- 4-1/2" × 4-1/2" × 1-1/2", 7.9 oz (224 g) with batteries; UL certified S3511
Keep it within 3 feet of the monitored device with field wiring, or 20 feet in non-metallic conduit. The near twin WSK-RELAY is a Form-C output, not an input, and WSK-PULL-DA is a pull station.
