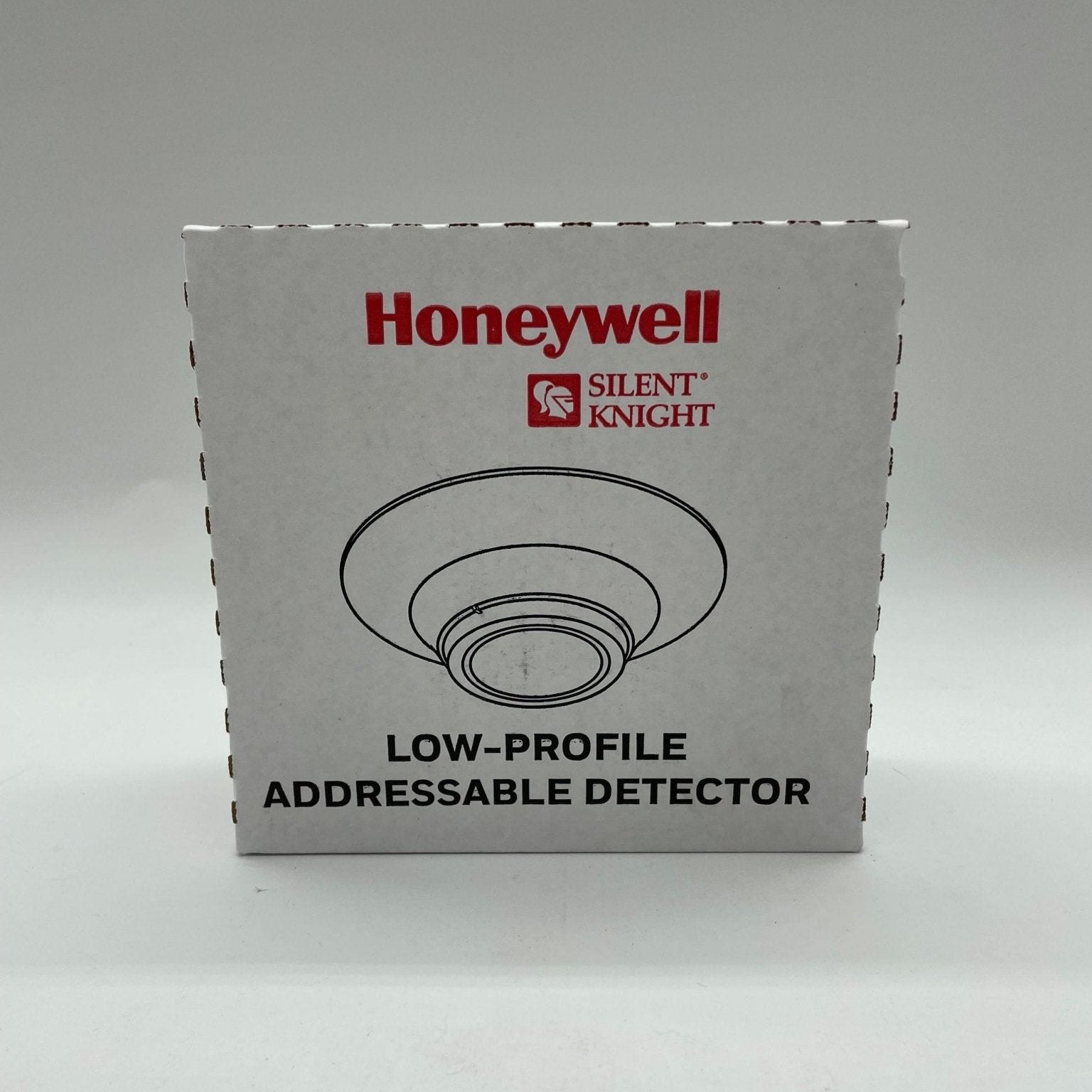

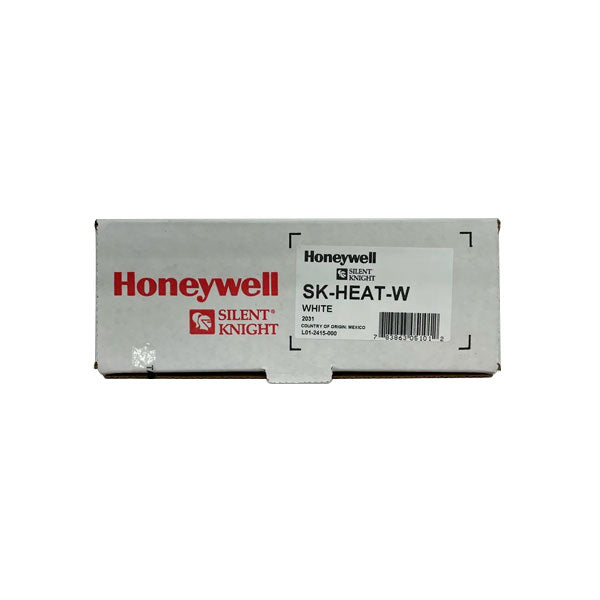

Silent Knight SK-HEAT-W is an intelligent addressable heat detector with a 135 °F (57 °C) fixed temperature set point, in a white, low-profile housing. The SK-HEAT-W Series is a direct replacement for the SK-HEAT Series heat detectors.
The point ID address is set with rotary decimal switches, so each detector reports its exact location. Two bi-color LEDs give 360° visibility: they blink green in normal condition and turn on steady red in alarm.
Specifications
| Thermal rating |
135 °F (57 °C) fixed temperature |
| Voltage range |
15–32 VDC peak |
| Standby current |
200 µA at 24 VDC (one communication every 5 seconds, LED enabled) |
| LED current |
4.5 mA at 24 VDC maximum |
| Operating temperature |
-4 to 100 °F (-20 to 38 °C) |
| Humidity |
10% to 93% non-condensing |
| Spacing |
UL 50 ft (15.24 m) center to center; FM 25 x 25 ft (7.62 x 7.62 m) |
| Height |
2.0 in.; diameter set by base (B300-6: 6.1 in.; B501: 4 in.) |
| Certifications |
UL S6228; FM approved; CSFM 7270-0559:0511 |
| Standard |
Designed to meet UL 268 7th Edition |
Features
- Two-wire SLC connection with rotary decimal addressing
- Remote test from the panel and built-in test switch activated by an external magnet
- Walk test with address display
- Built-in tamper-resistant feature

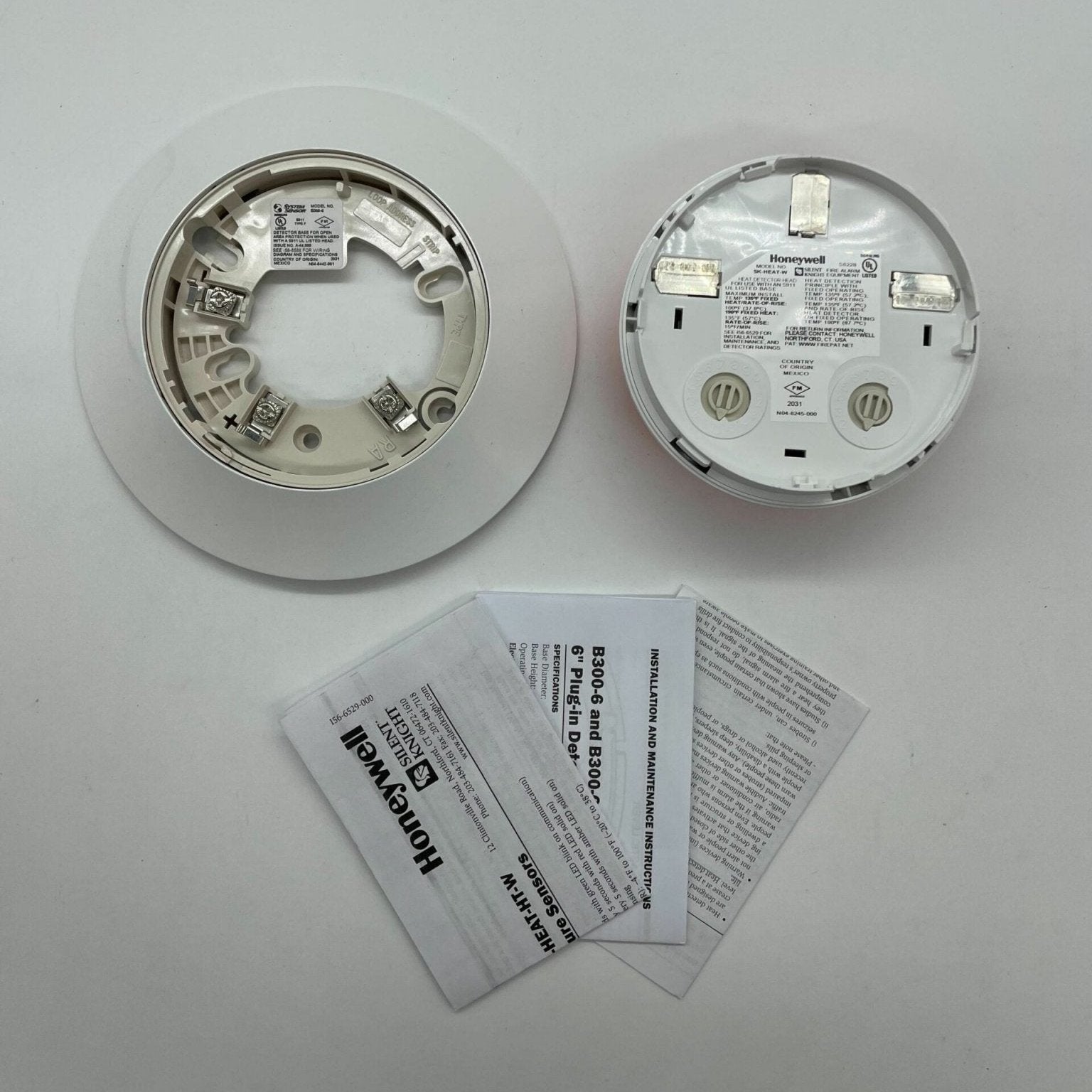

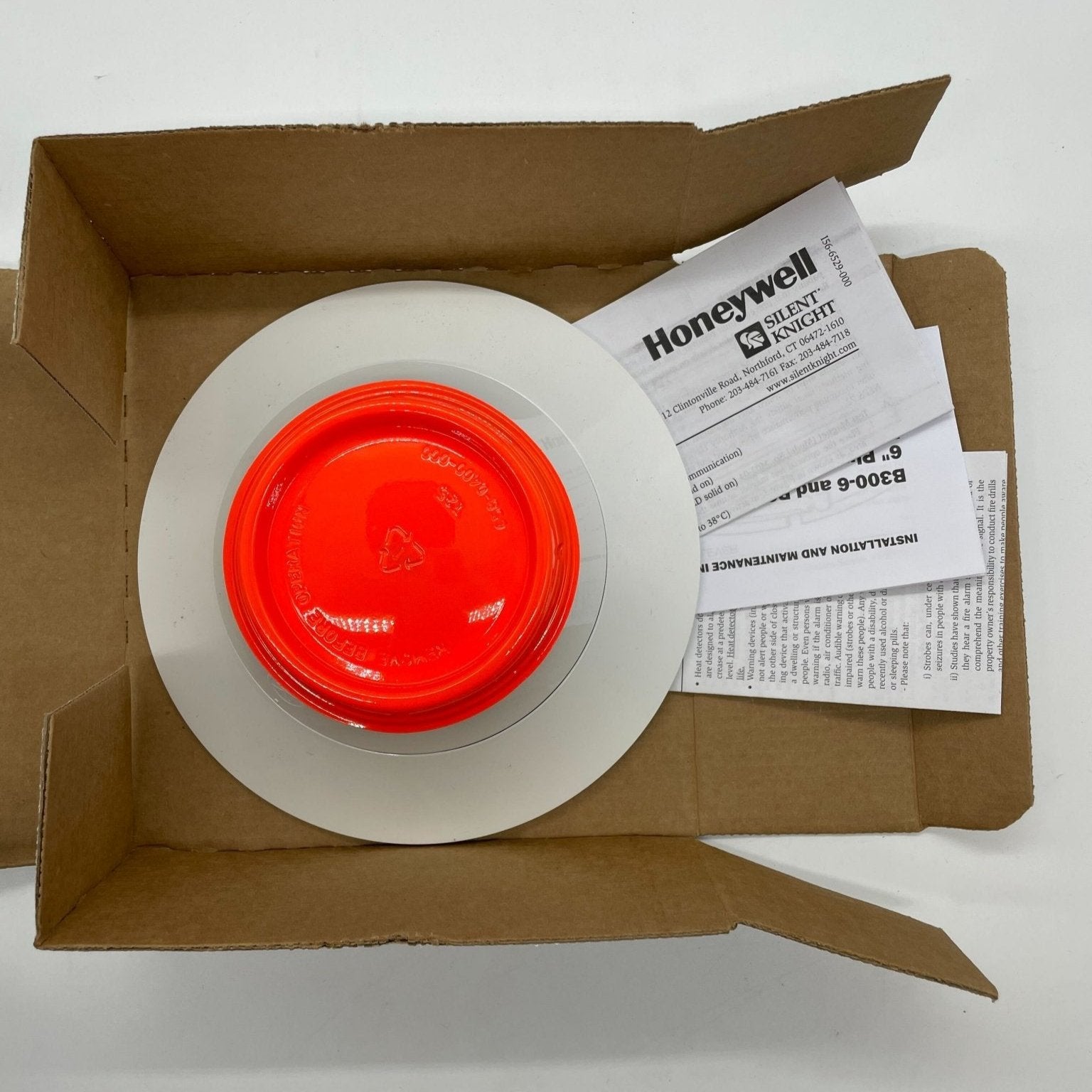

- Plugs into a separate base; optional sounder, relay and isolator bases
- Mount bases on an electrical backbox at least 1.5 in. deep
Related models
- SK-HEAT-ROR-W: 135 °F fixed and rate-of-rise (15 °F per minute)
- SK-HEAT-HT-W: 190 °F fixed high temperature
- B300-6 and B501-WHITE mounting bases; B200S-WH sounder base; B224BI-WH isolator base
Documents
FAQ
Which Silent Knight detectors does the SK-HEAT-W replace?
The SK-HEAT-W Series is a direct replacement for the SK-HEAT Series heat detectors.
Which bases can it use?
The data sheet lists the B300-6 and B501 mounting bases, B200S sounder bases, B224RB relay bases and B224BI isolator bases.
What heat rating does it have?
A 135 °F (57 °C) fixed temperature set point. For rate-of-rise use the SK-HEAT-ROR-W; for 190 °F use the SK-HEAT-HT-W.
How far apart can detectors be spaced?
UL approves 50 ft (15.24 m) center to center; FM approves 25 x 25 ft (7.62 x 7.62 m).
