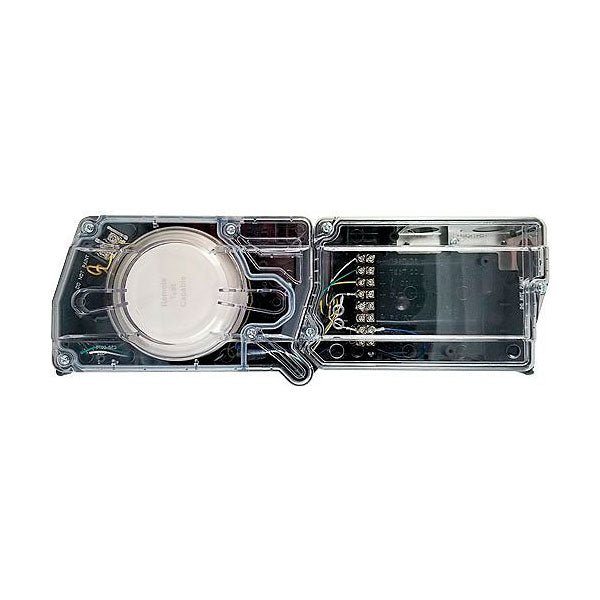

Silent Knight SK-DUCT-W Intelligent Photoelectric Duct Smoke Detector
The Silent Knight SK-DUCT-W is an intelligent photoelectric duct smoke detector supplied with its smoke detector housing and the SK-PHOTO-R-W detector. The SK-DUCT-W and DNRW use photoelectric technology to detect smoke and combustion particles present in air moving through an HVAC air handling system.
These units sense smoke in the most challenging conditions, operating in airflow speeds of 100 to 4,000 feet per minute (0.5 to 20.32 m/s), temperatures of -4°F to 158°F (-20°C to 70°C) and a humidity range of 0 to 93 percent, non-condensing.
Features
- Photoelectric, integrated low-flow technology
- Air velocity rating from 100 ft/min to 4,000 ft/min (0.5 m/s to 20.32 m/s)
- Versatile mounting options: square or rectangular configuration
- Broad operating ranges: -4°F to 158°F (-20°C to 70°C) and 0% to 93% humidity, non-condensing
- Sampling tube installs from the front or back of the detector with no tools required
- Cover tamper signal
- Increased wiring space with a newly added 3/4" conduit knockout
- Easily accessible code wheels on the sensor head (included with SK-DUCT-W)
- Clear cover for convenient visual inspection (SK-DUCT-W only)
- Remote testing capability
Specifications
| Model |
SK-DUCT-W |
| Detection |
Photoelectric, integrated low-flow |
| Included detector |
SK-PHOTO-R-W |
| Air velocity |
100 to 4,000 ft/min (0.5 to 20.32 m/s) |
| Temperature |
-4°F to 158°F (-20°C to 70°C) |
| Humidity |
0% to 93%, non-condensing |
Related models
The Silent Knight SK-DUCT is the related intelligent duct detector supplied with the SK-PHOTOR detector.
Questions
What airflow range does the SK-DUCT-W cover? 100 to 4,000 feet per minute (0.5 to 20.32 m/s).
Does it have a cover tamper signal? Yes, and it also offers remote testing capability.
