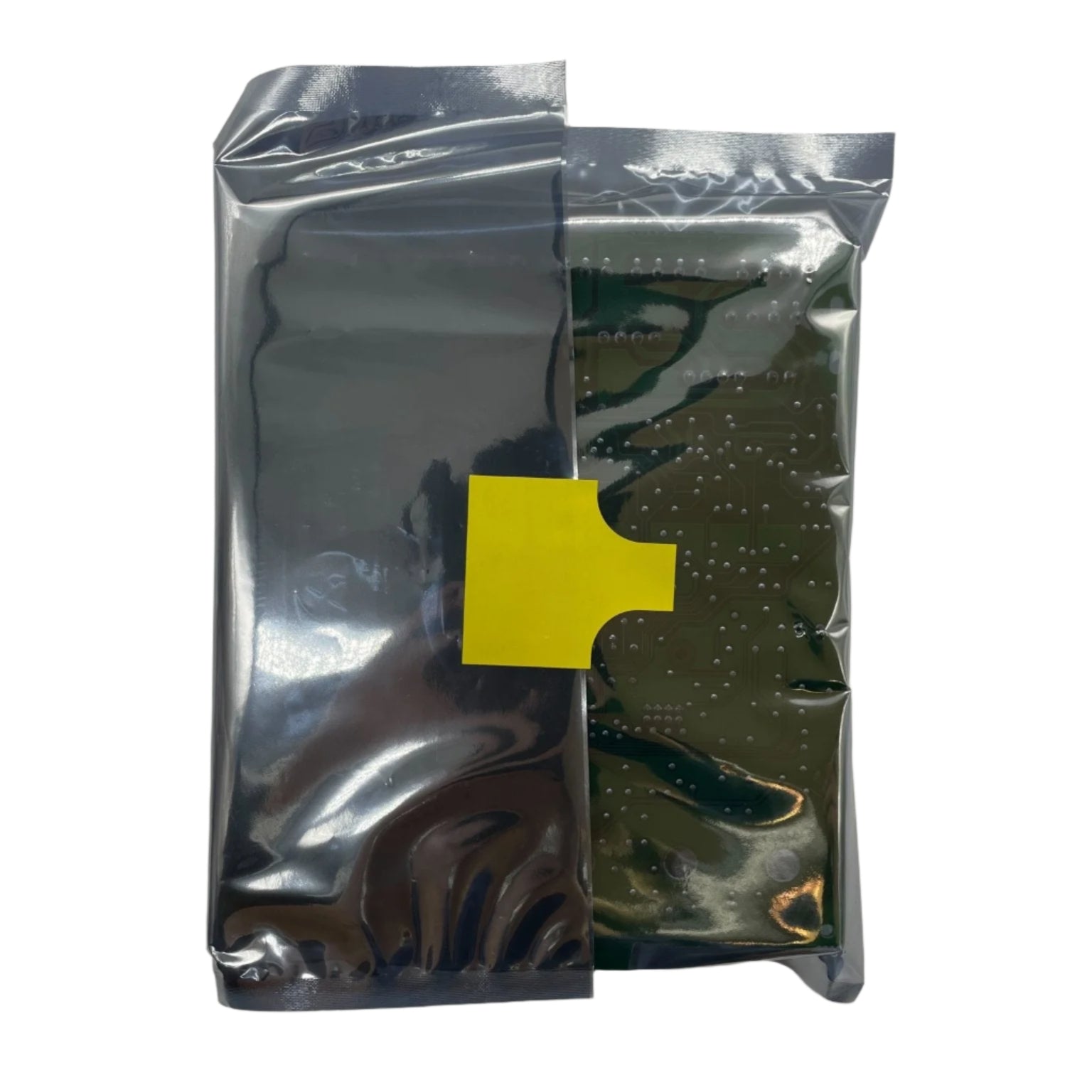

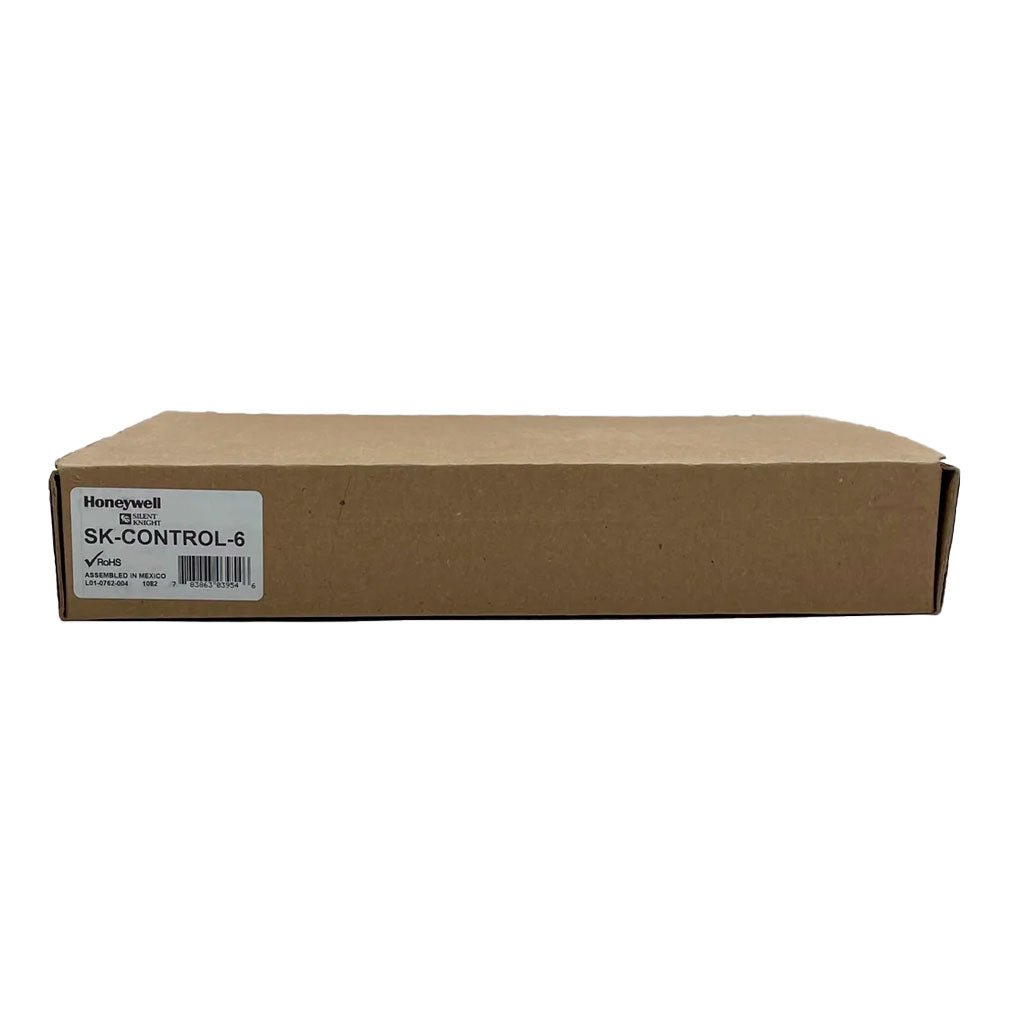

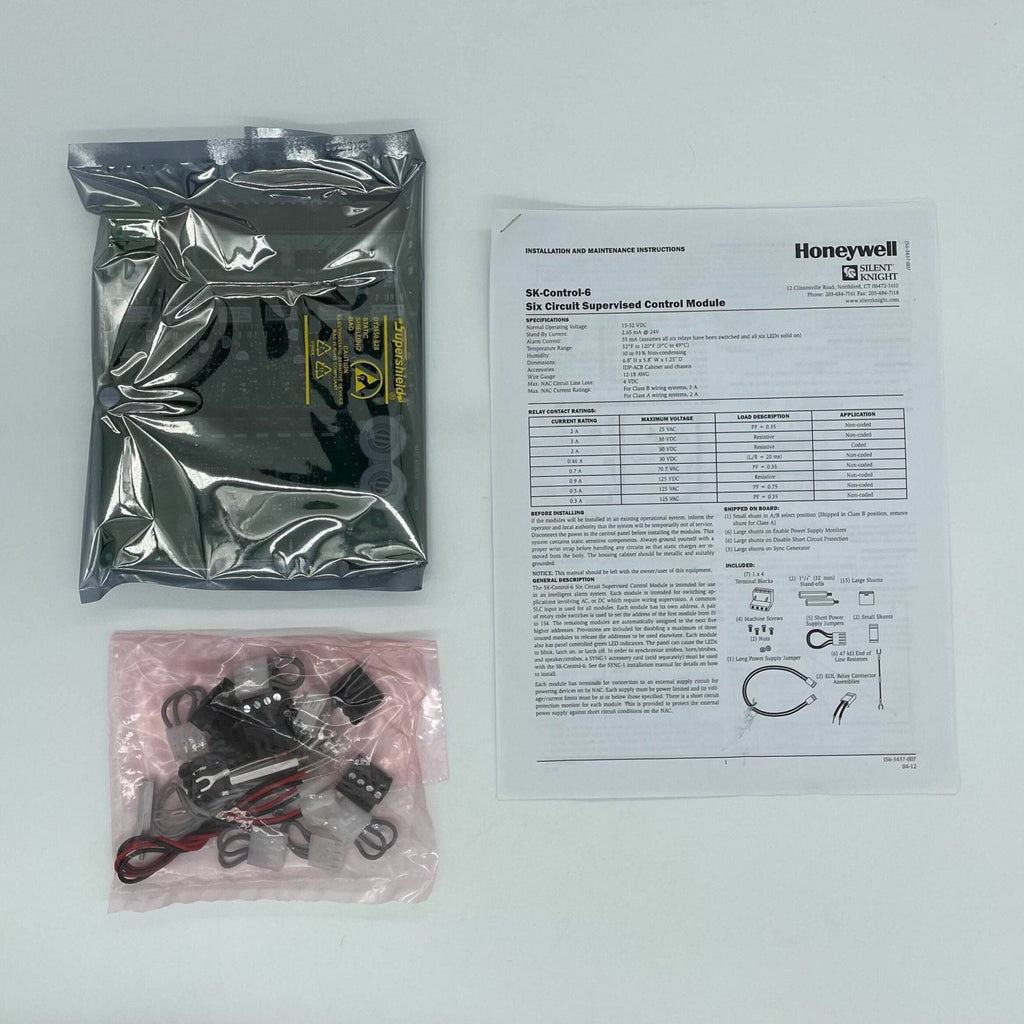

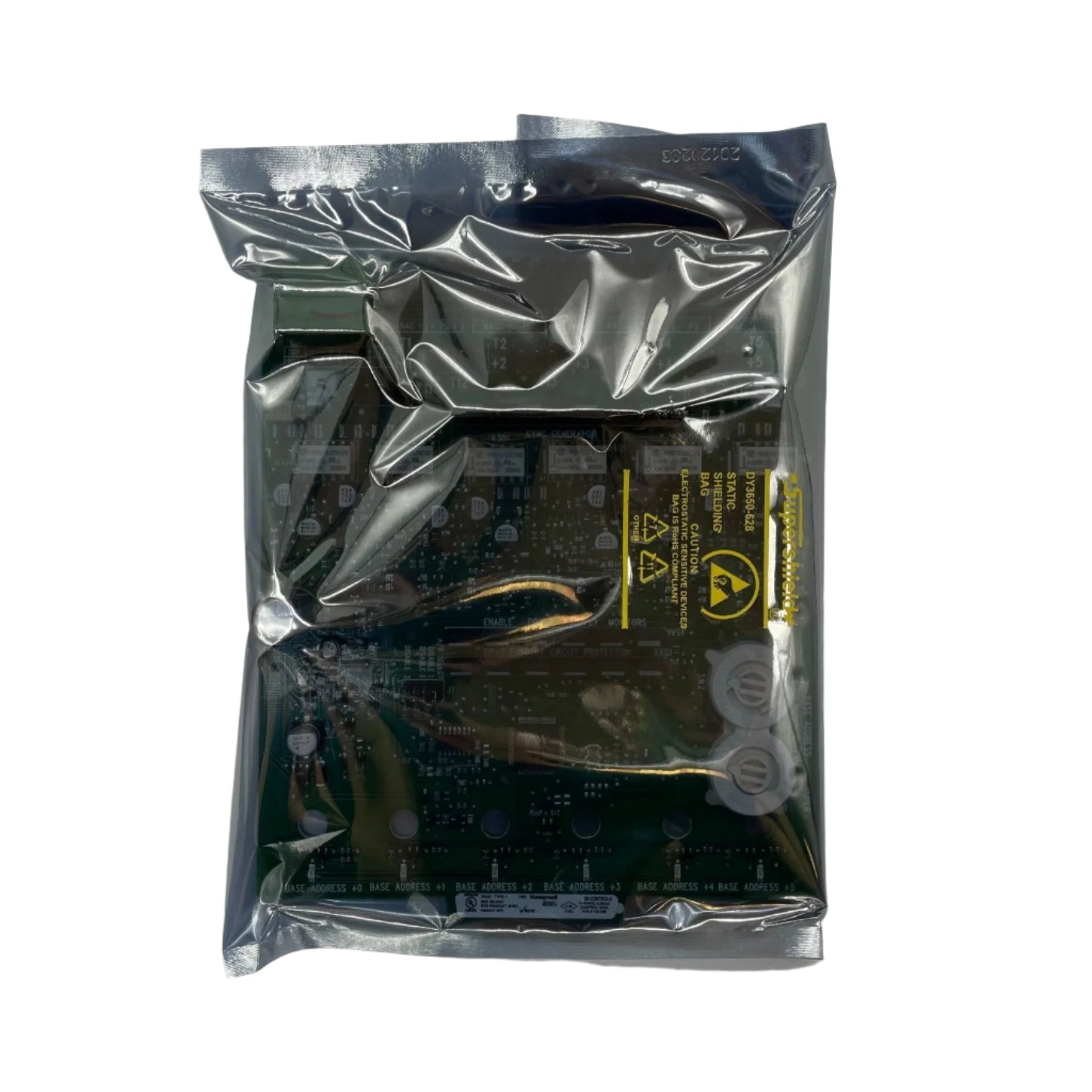

Silent Knight SK-CONTROL-6 — six-circuit supervised control module adding addressable notification circuits to an IntelliKnight SLC loop.
Where the SK-Relay-6 offers dry contacts, the SK-Control-6 switches an externally powered, supervised NAC: on command it drops supervision and connects the external supply across the horns or strobes — which is how the panel knows the relay transferred.
- Six supervised circuits, Class B (Style Y); Class A (Style Z) via the J1 shunt yields three circuits max
- Rotary code switches set the first module's address only; the other five take the next five higher addresses automatically
- IntelliKnight panels 5700, 5808, 5820XL, 5820XL-EVS
- 15–32 VDC; standby 2.2 mA max, alarm 35 mA
- Contacts 3 A @ 30 VDC resistive, noncoded
- Removable 12–18 AWG plug-in terminal blocks; UL Certified
It switches power, it does not supply it — budget an external supply or amplifier. Do not set the base address so high that the auto-assigned addresses fall outside the panel's range.
