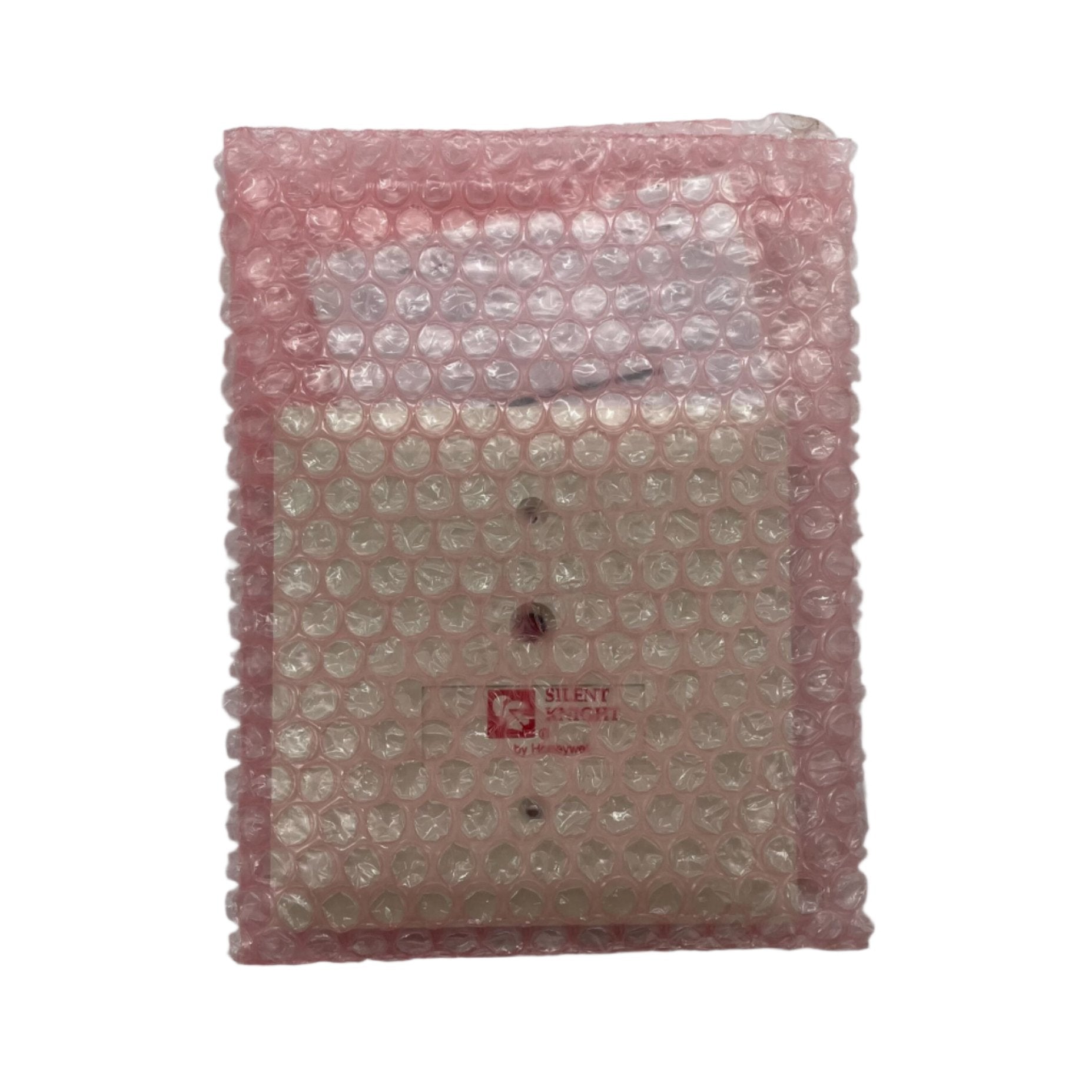

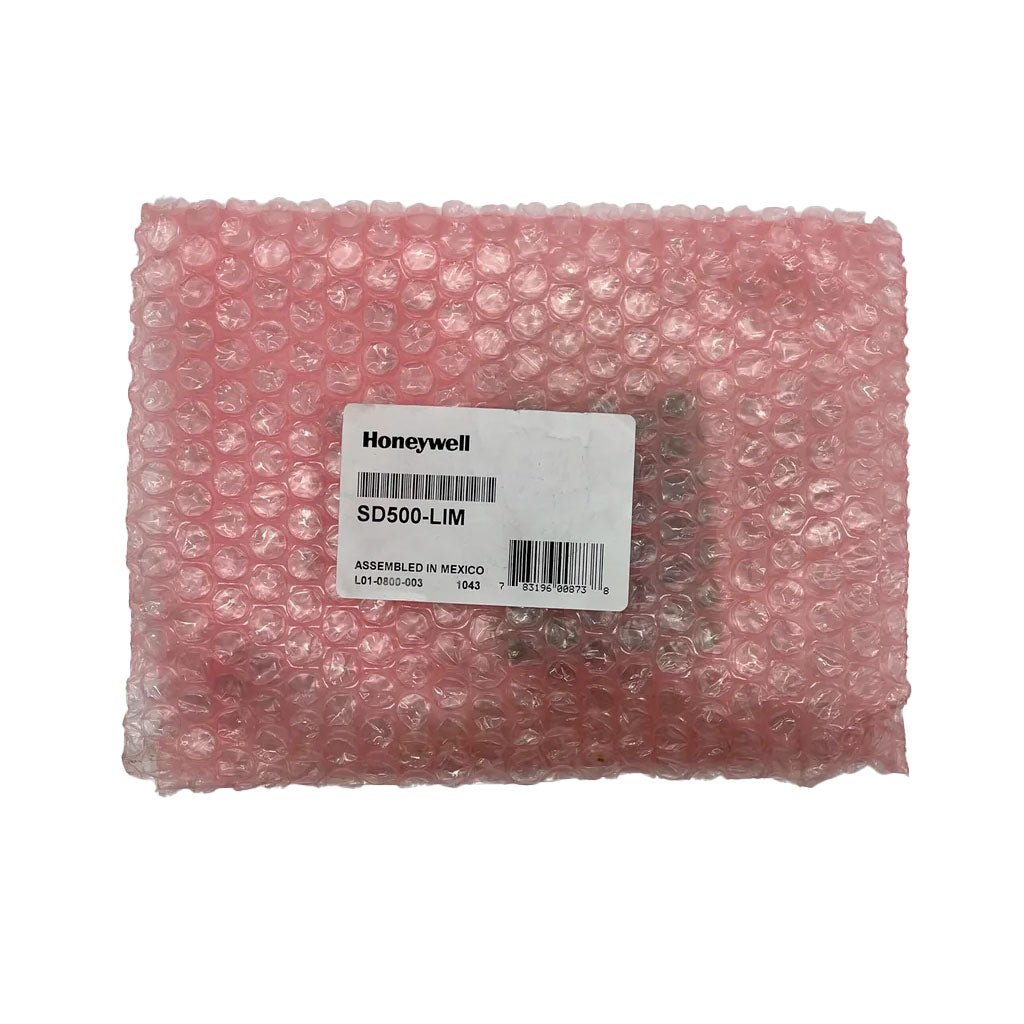

Silent Knight SD500-LIM — SLC line isolator that cuts out a shorted section of loop so the rest keeps communicating.
Without isolators, one short on an SLC loop can disrupt communication across the whole loop. Dropping SD500-LIMs in segments it: the panel still annunciates the fault as a trouble, but every device outside the isolated section keeps operating. On Class B each isolator protects the branch behind it, keeping a shorted T-tap from taking out a floor.
- 32 VDC; 92 µA battery draw during AC loss (alarm and standby)
- Max SLC loop resistance 50 Ω
- Class B branch: 0 to 50 devices, to 10 Ω per branch
- No more than 127 isolator devices per SLC loop
- 4-7/8" L × 4-7/8" W × 7/8" D; standard dual-gang or 4" square box
- 32° to 120°F (0° to 49°C), indoor only
- Listed for Silent Knight 5700, 5808, 5820XL(-EVS), 6700, 6808, 6820(EVS)
Confirm the panel model before ordering. The 127-isolator ceiling is shared between SD500-LIM modules and SD505-6IB isolator bases, so count both when laying out a loop.
