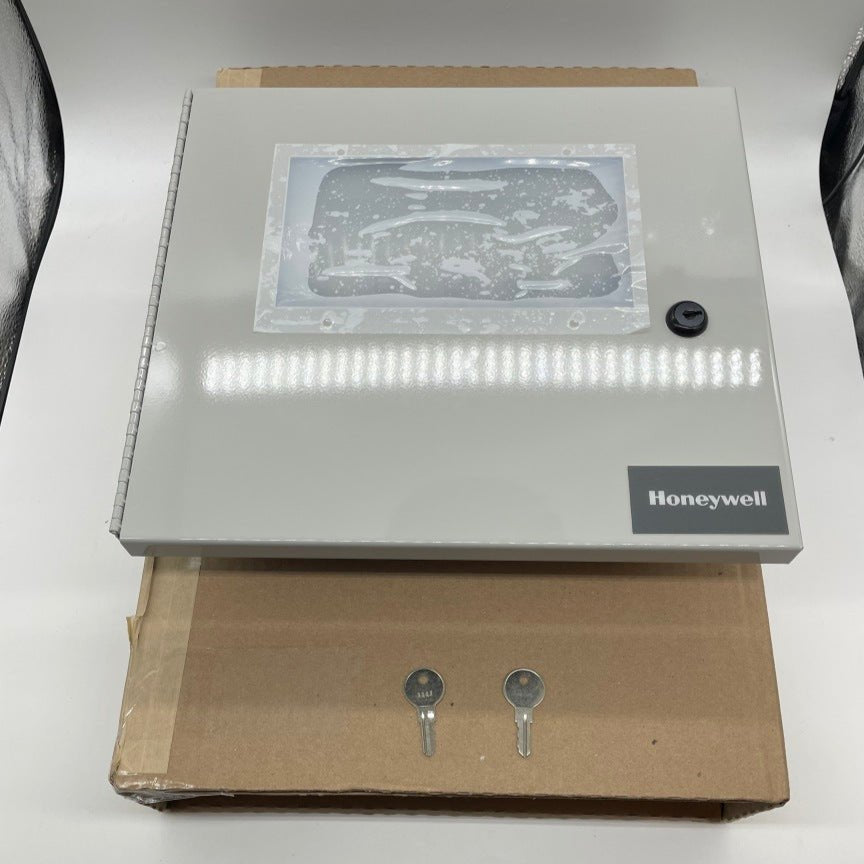

Silent Knight RA-2000GRAY — gray 4 × 40 character remote annunciator for compatible fire alarm control panels.

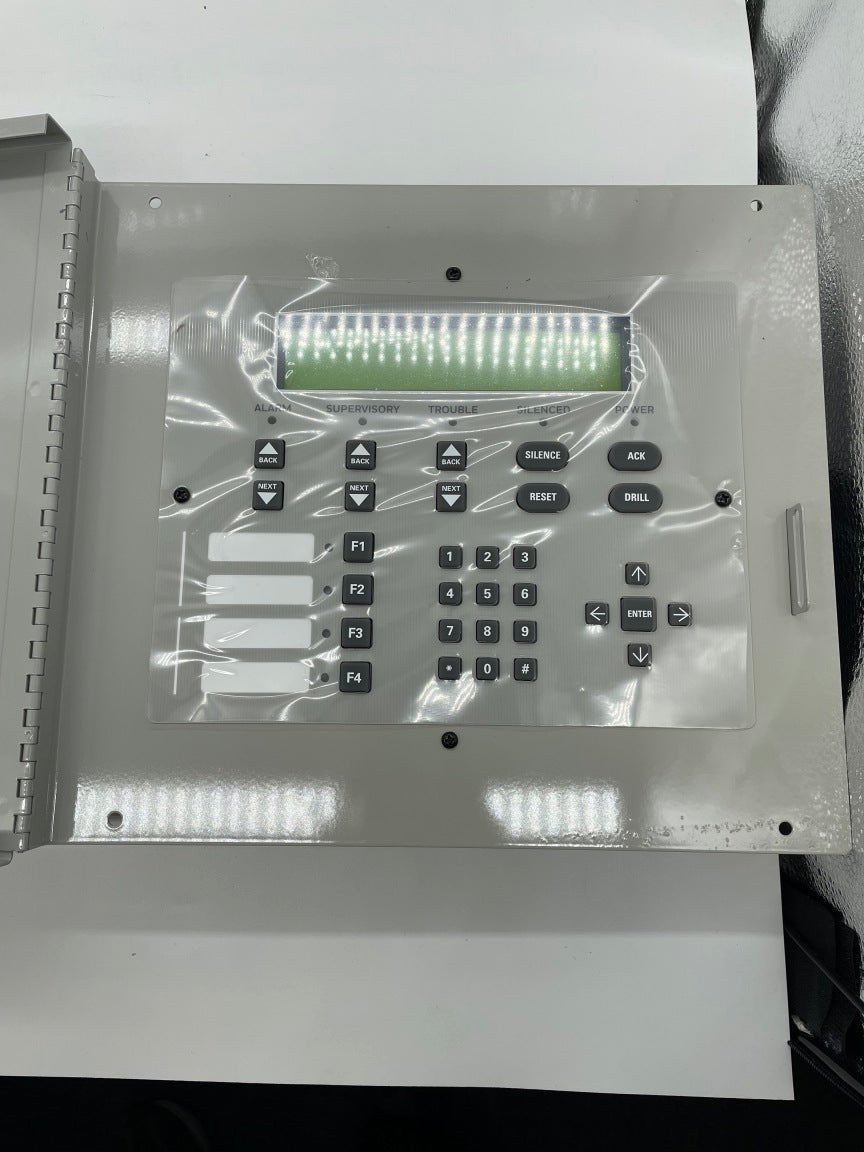

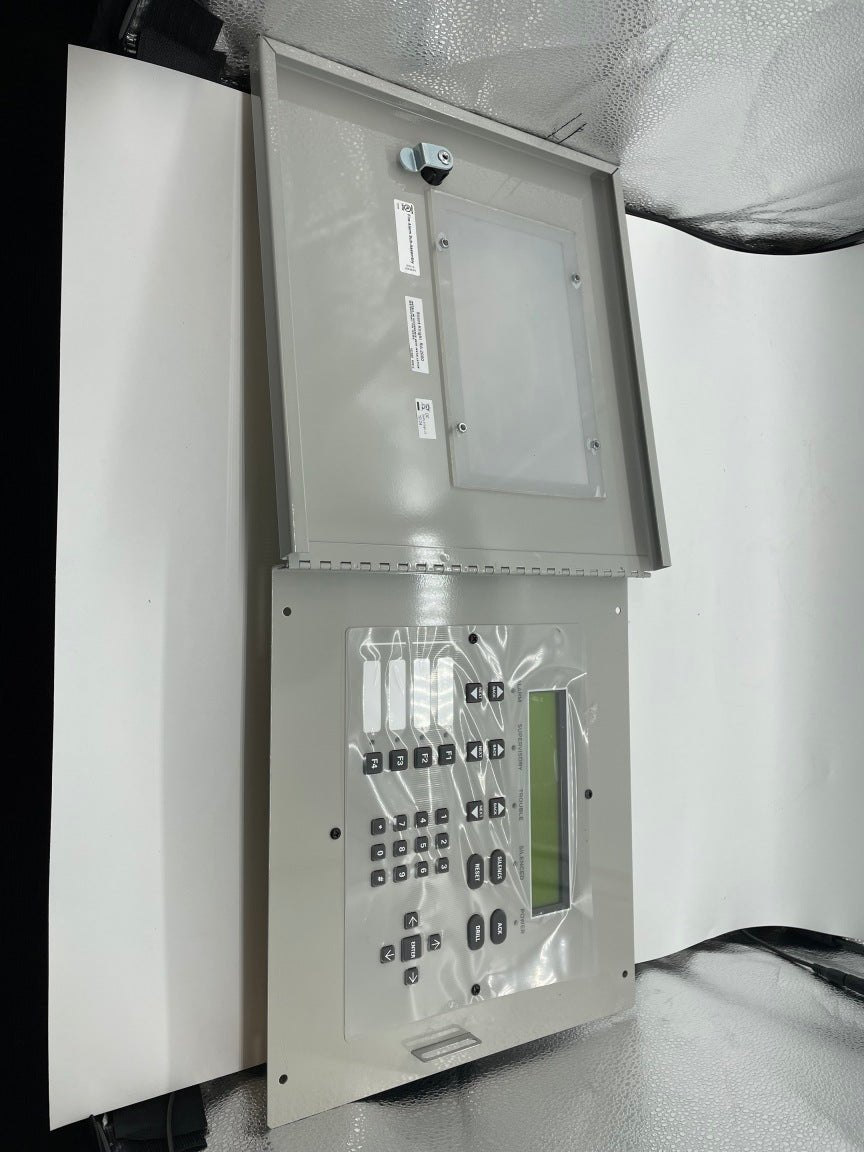

The RA-2000 duplicates the panel front: the same four-line by forty-character display and the same keys, so a lobby or security desk can read events and operate the system without opening the control panel. It hangs on the panel SBUS as a supervised, power-limited Class B connection, DIP switches on the back set its address, and the module is added by JumpStart or by hand in programming. It flush mounts in its backbox or surface mounts with a trim ring kit.
- 4 × 40 character display; RA-2000GRAY is the gray model and RA-2000 the red
- 24 VDC; 27 mA standby, 53 mA alarm
- 32°F to 120°F (0°C to 49°C)
- Flush mount overall 12.25 in. W × 11.5 in. H × 0.875 in. D
- Backbox 9.25 in. W × 8.375 in. H, minimum depth 2 in., with ten knockouts

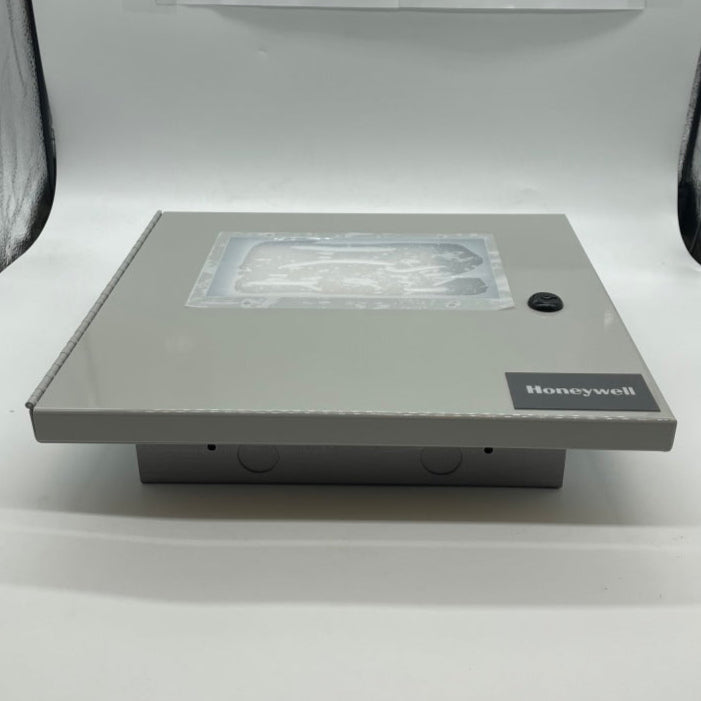

- Surface mount including trim ring 12.25 × 11.5 × 3.0 in.
Surface mounting needs a trim ring kit ordered separately, and it is color specific: RA-100TG is the gray kit for this model, RA-100TR the red kit for the RA-2000.
