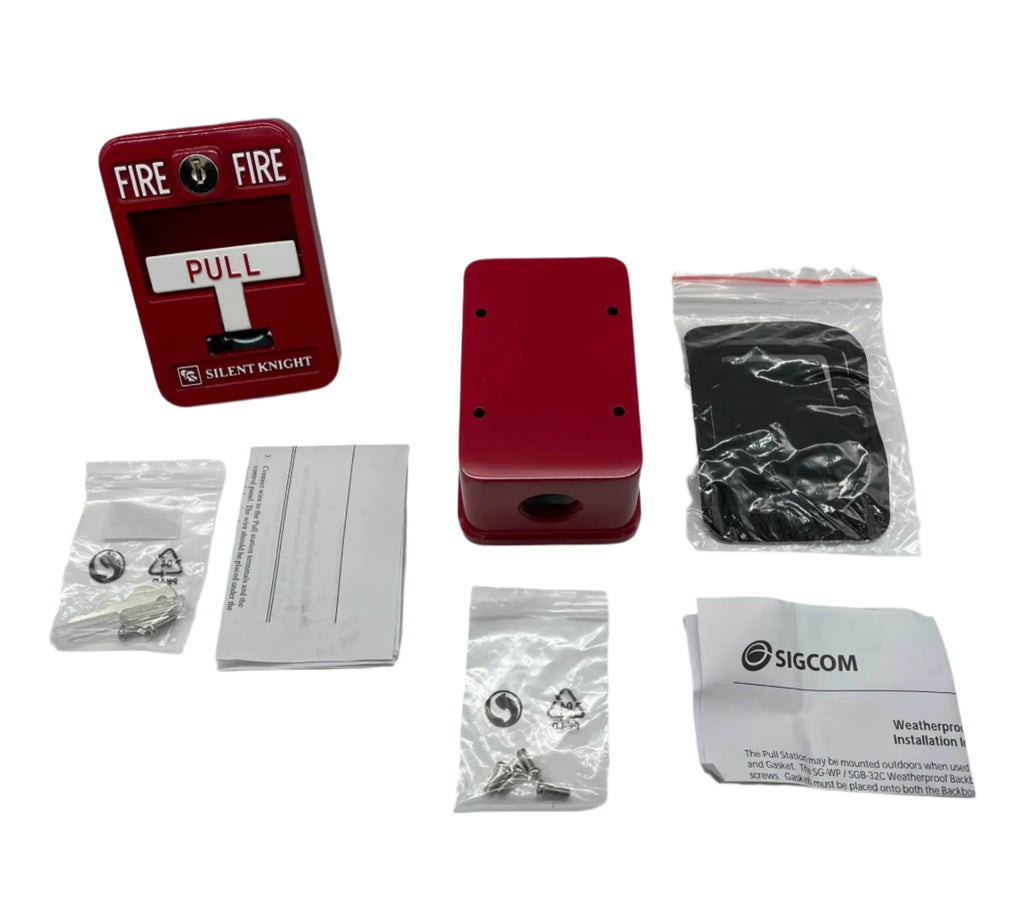

Silent Knight PS-SATK-WP — single-action die cast metal manual pull station supplied with a weatherproof die cast backbox for outdoor use.
Pulling the handle closes a normally open contact and signals the panel over a conventional initiating device circuit. This is the outdoor member of the die cast PS series, gasketed so the switch can be surface mounted where weather reaches it.
- Single action: the handle pulls down, locks in place and stays visible from up to 50 feet; reset with a key
- SPST switch; normally open contact rated 1 amp at 125 VAC or 30 VDC, gold-plated against corrosion
- Two terminals for connection to conventional fire detection loops
- Backbox tapped on one end for 1/2 in. conduit and supplied with a gasket
- Station 4-3/4 × 3-1/4 × 1-1/8 in.; backbox 4-3/4 × 3-1/4 × 2-1/4 in.
- UL certified, CSFM approved, MEA (BSA) approved, UL tested to the latest ADA requirements
PS-DATK is the dual action station, whose PUSH bar must rotate inward before the handle can be pulled. Plain PS-SATK is this same station without the weatherproof box; PS-WPB is that box alone, PS-BB the standard back box.
