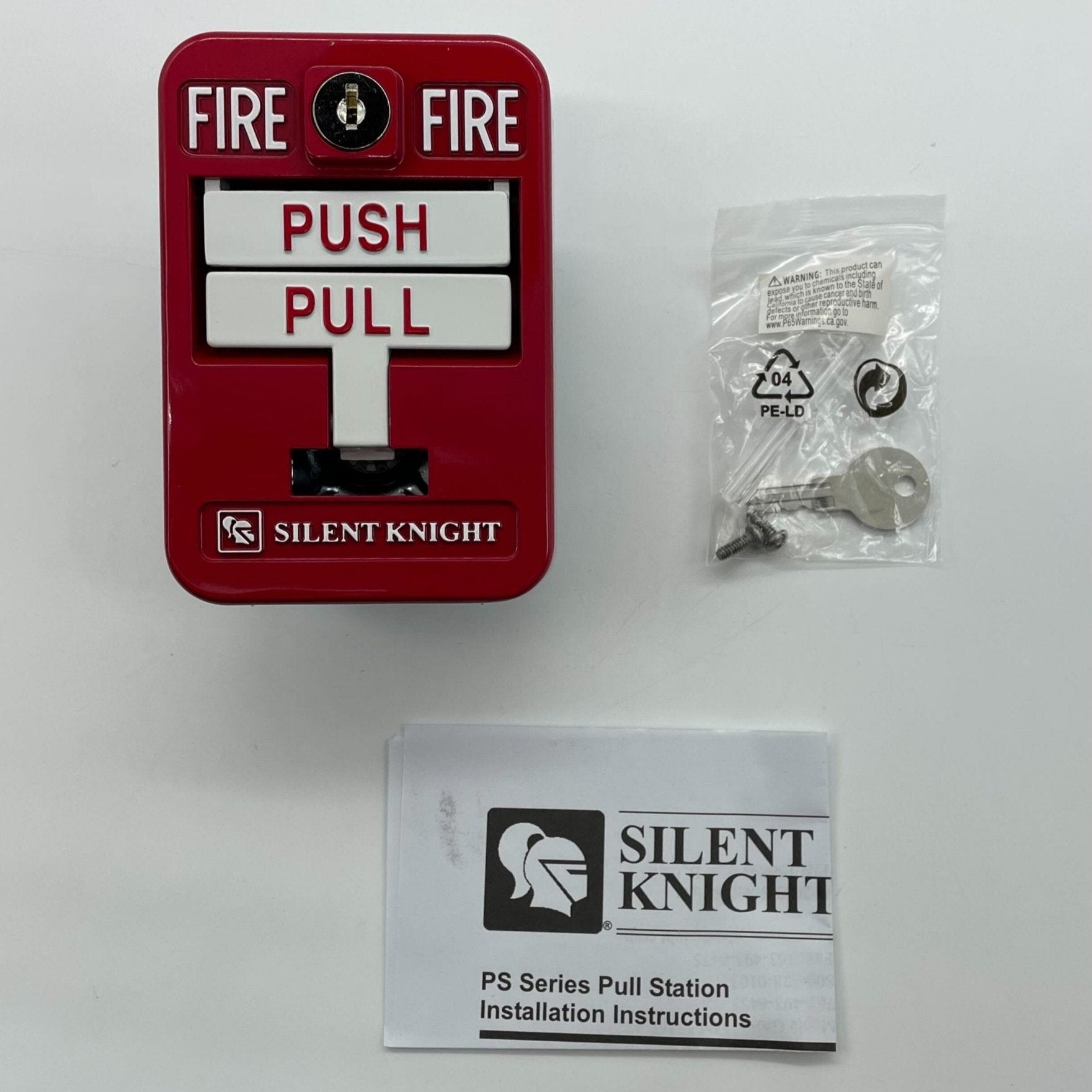

Silent Knight PS-DATK is a dual-action manual pull station in die-cast metal. Pushing the PUSH bar rotates it inward so the PULL handle can be grasped in a one-handed motion; once pulled, the handle locks down and is easily visible from up to 50 feet.
It has terminal strip connections and a gold-plated, normally open SPST contact rated 1 amp at 125 VAC or 30 VDC. A scored acrylic break rod is supplied, and the station is reset with a key.
Features
- Dual action with PUSH and PULL operation, die-cast metal construction
- Gold-plated contacts to avoid corrosion
- Key reset using the same keys as Silent Knight enclosures

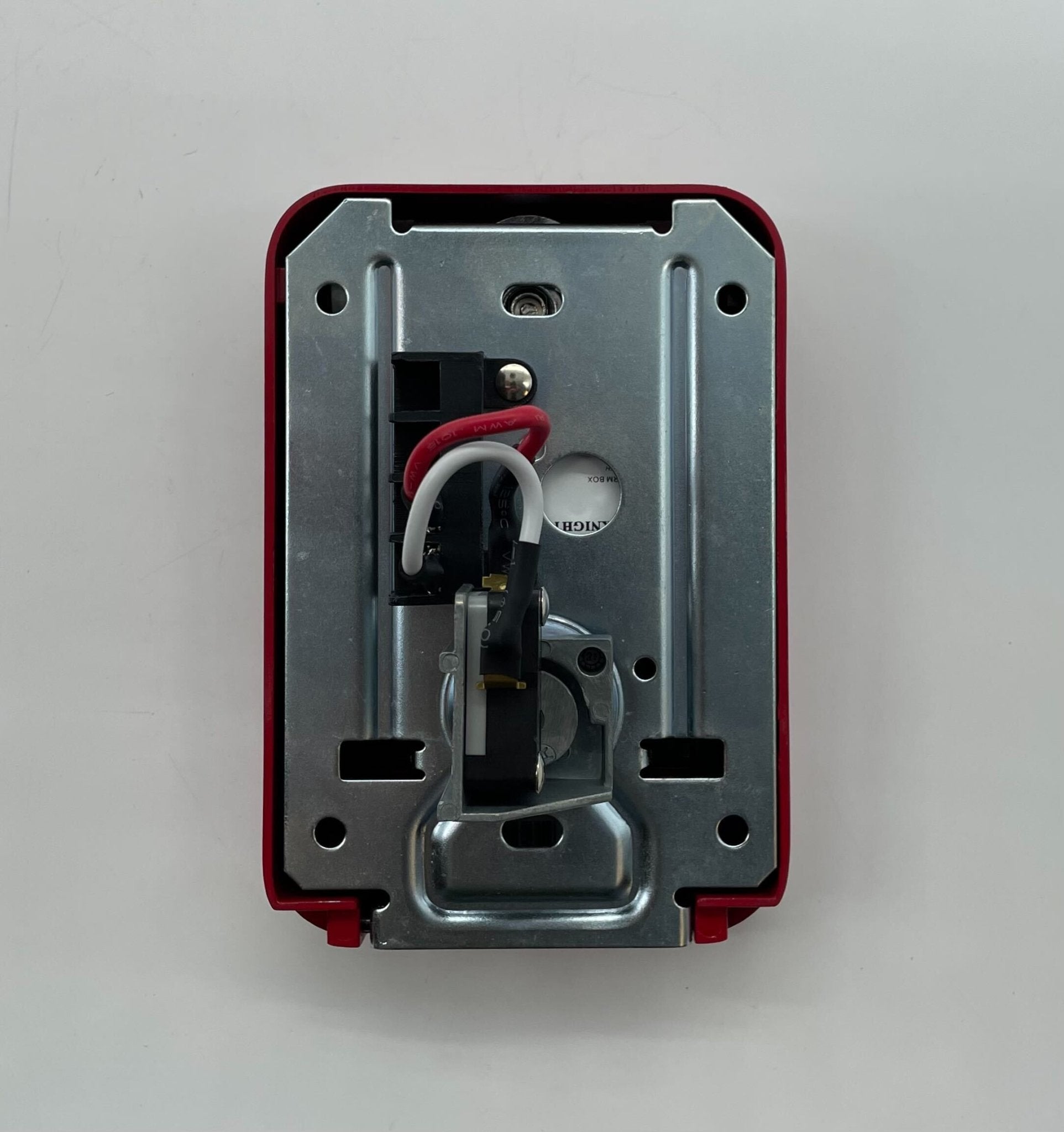

- Terminal strip connections; surface mount backboxes available
- Break rod supplied
- UL Certified, CSFM approved, MEA (BSA) approved and ADA compliant
Specifications
| Product Type |
Dual-action pull station |
| Material |
Die-cast metal |
| Contact |
Normally open SPST, 1 A at 125 VAC or 30 VDC |
| Print |
Fire, Pull, Push |
| Height |
4.8" |
| Width |
3.3" |
| Depth |
1.1" |
