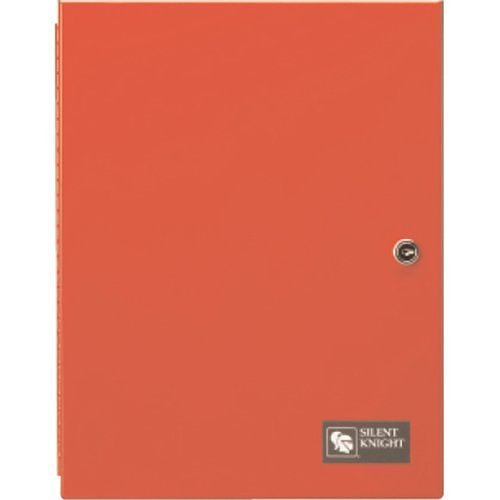

Silent Knight IDP-ACB — surface mounting cabinet for one or two IDP addressable interface modules.
IDP modules are the signaling line circuit boards that let a Silent Knight IFP series panel reach conventional zones, dry contacts, relays and notification circuits out in the building. The IDP-ACB is the enclosure those boards live in when mounted away from the panel, with a built-in chassis sized for them. It is a module cabinet, not a control panel enclosure.
- Built-in plate holds one or two IDP modules
- Accepts IDP-Monitor-10, IDP-Zone-6, IDP-Relay-6, IDP-Control-6
- Those modules serve Silent Knight IFP-50, IFP-100, IFP-1000 and IFP-2000
- Plate positions the boards so every status indicator stays visible
- 12-1/2 in. W × 15-1/4 in. H × 3 in. D, weight 6.25 lb
- Surface mount through four holes, dry indoor location
- UL Listed; module mounting hardware ships with the IDP modules
This is the accessory box, not the panel. Buyers after the enclosure that holds an IFP-50, IFP-100, IFP-1000 or IFP-2000 control panel need that panel cabinet instead, and the IDP modules that go inside are ordered separately.
