EVS-VCM is the Silent Knight voice control module for the 6820EVS and IntelliKnight 5820XL-EVS emergency voice fire alarm panels. It mounts on the dead front inside the panel enclosure, provides the supervised microphone for live paging, and has a built-in digital message repeater for the EVS voice messages. It is sold as a replacement module for an existing EVS Series system.
Specifications
| Part number |
EVS-VCM |
| Compatible panels |
Silent Knight 6820EVS and 5820XL-EVS |
| Functions |
Supervised microphone for live paging; interface for the emergency voice system; built-in digital message repeater (15 EVS messages on the 5820XL-EVS) |
| Quantity per panel |
1 maximum |
| Current draw |
Standby 70 mA; alarm 100 mA |
| Connections |

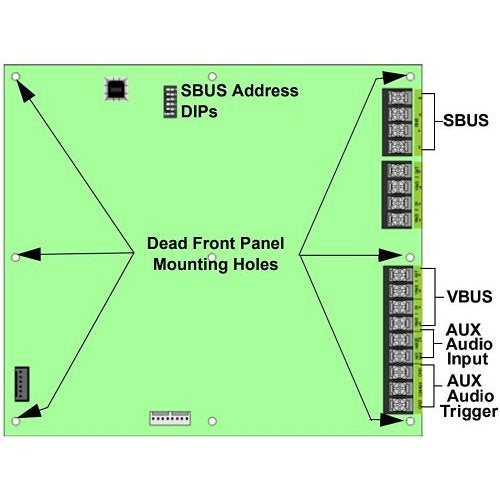

SBUS (supervised, power-limited, Class B), VBUS in/out, microphone connector, auxiliary audio input and trigger, EVS-SW24 connector |
| Bus |
SBUS; module ID set with on-board DIP switches |
Compatibility and installation notes
- Mounts on six studs in the middle section of the panel dead front; remove AC power and disconnect the batteries before installing.
- The microphone clips to the dead front, and its cord passes through the dead front with a strain relief clip.
- After installation, set the SBUS ID with the DIP switches and add the module to the panel module list.
- The panel menu includes EVS-VCM maintenance options for PC connection and local message recording.
- On the 5820XL-EVS, the system supports up to four EVS-RCU remote command units and up to four amplifiers (500 W per system).
Related models
Documents
Specifications from Silent Knight EVS-VCM installation document LS10067-001SK-E:C (2/22/2022) and installation manual LS10061-001SK-E Rev. H. Manufacturer specifications are subject to change.
FAQ
Which panels use the EVS-VCM?
The Silent Knight 6820EVS and IntelliKnight 5820XL-EVS emergency voice fire alarm panels. One module is allowed per panel.
What does the module do?
It provides the supervised microphone for live paging and the interface to the emergency voice system, with a built-in digital message repeater.
How is it addressed after installation?
Set the SBUS ID with the on-board DIP switches and add the module to the panel module list.
What is its current draw?
70 mA standby and 100 mA in alarm.
