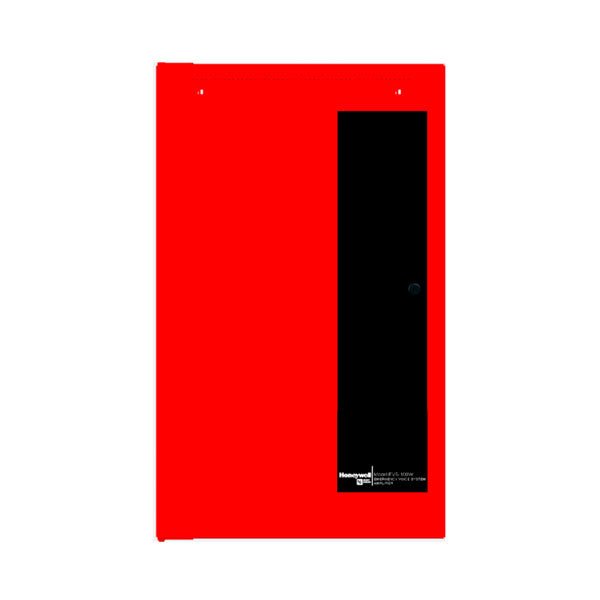

The EVS-100W is an intelligent 50/100 watt amplifier for use with Version 14.0 or newer 5820XL-EVS
The EVS-100W is used to amplify audio message for distribution throughout a facility.
The EVS-100W is capable of producing up to 100 watts of audio power and has the ability to provide an option for 50 watts of backup power.
Features
- Built in backup amplifier test feature allows you to physically test that the backup amplifier is operating properly
- Up to four amplifiers per 5820XL-EVS or 6820EVS distributed between up to 32 audio circuits
- Amplifier Bandwidth 400 Hz to 4000 Hz
- Six-wire connection to EVS system: Two-wires for the voice bus and four-wires for the SBUS connections
- Can be mounted up to 6000 feet away from 5820XL-EVS or 6820EVS control panel
- UL 864 and UL 2572
- UL certified for Continuous or ANSI 520Hz speaker tones that meet NFPA 72 Low Frequency Signal Requirements for Sleeping Areas. See the FACP manual for a list of compatible speakers
- 120 VAC or 240 VAC operation
Documents
FAQ
Which panels does the EVS-100W work with?
It is compatible with the Silent Knight 6820EVS and with version 14.0 or newer 5820XL-EVS panels. Up to four amplifiers can be used per panel, distributed between up to 32 audio circuits.
What amplifier configurations are possible?
50 watts with 50 watts as backup, 100 watts on a single channel, or 100 watts on a single channel with 50 watts of backup when the EVS-100WBU external backup amplifier is added.
Does it need its own batteries?
Yes. The EVS-100W has its own power supply with battery backup and a 7 to 35 AH charging capacity. The cabinet holds batteries up to 18 AH; use the RBB accessory cabinet for larger batteries up to 35 AH.
How is it wired to the panel?
With a six-wire connection: two wires for the voice bus and four for the SBUS. It can be mounted up to 6,000 feet from the 5820XL-EVS or 6820EVS.
