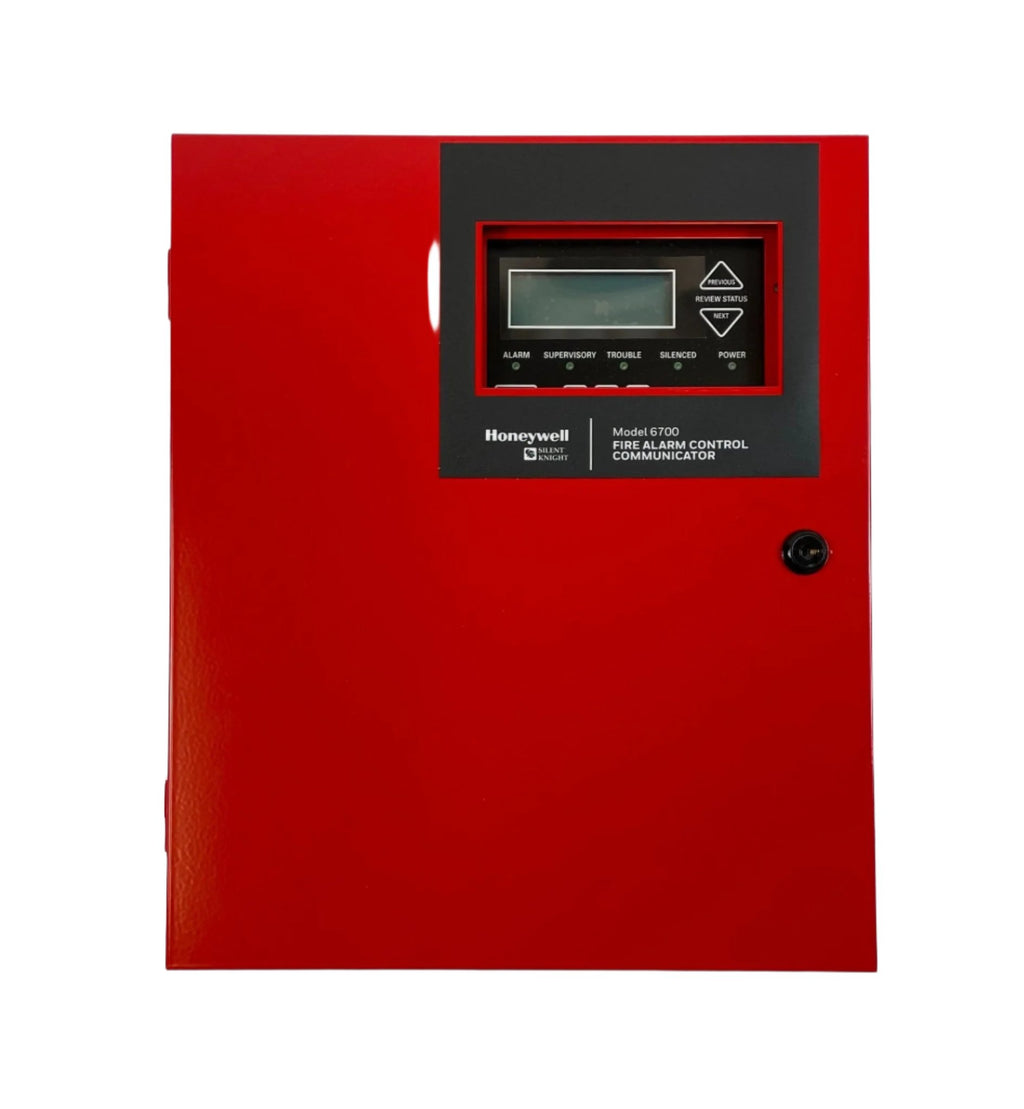

6700 — compact intelligent addressable fire alarm control panel with a built-in dual-technology (IP and POTS) communicator, rated for 100 SK points or 50 SD points.
The 6700 is the latest intelligent addressable FACP from Silent Knight and is a direct replacement for the 5700. It has one SLC loop for connecting addressable detectors, supporting 50 System Sensor SK sensors and 50 SK modules, or 50 Hochiki SD devices per loop; total point capacity is a maximum of 100 points per panel with IDP and SK devices, or 50 points per panel using SD devices. Two onboard Flexput circuits can be configured as notification outputs or auxiliary power, with four types of auxiliary power available — door holder, constant power, resettable power and sounder sync power. The panel also provides a form-C trouble relay and two programmable form-C relays, plus drift compensation, pre-trouble maintenance alert, a built-in sensor test to comply with NFPA 72 calibration testing requirements, and a calibration trouble alert. A common communications and annunciation link allows up to 17 panels to be connected via copper or fiber optic cable, with one designated panel acting as communicator for the whole link.
Specifications
| Intelligent signaling line circuits |
1 |
| Addressable device capacity |
100 (SK) or 50 (SD) |
| Devices per SLC loop |
50 SK sensors and 50 SK modules, or 50 SD devices |
| Programmable software zones |
125 |
| Output circuits |
2 (expandable) |
| SBUS devices |
16 (8 annunciators, 8 LED modules) |
| Display |
Four-line LCD, 20 characters per line |
| AC power |
120 VAC, 60 Hz, 1.5 A |
| Standby current |
165 mA |
| Alarm current |
310 mA |
| Flexput circuits |
Terminal block provides connections for two Class B or one Class A NACs or auxiliary power; power-limited, supervised circuitry. Maximum current per circuit 1 A @ 27.4 VDC. End-of-line resistor 4.7k ohm, ½ watt for Class B NAC |
| Total power output |
2.5 A max @ 27.4 VDC |
| Auxiliary power |
27.4 VDC |
| Communication loop |
Supervised and power-limited, Class A or Class B, 32 VDC, 100 mA |
| Relay contact rating |
2.5 A @ 27.4 VDC (resistive), Form C — two programmable relays and one fixed trouble relay |
| Battery |
Cabinet holds a maximum of two 7 AH batteries |
| Battery charger capacity |
7 to 35 AH |
| Dimensions |
12.71" W x 15.12" H x 3.33" D (32.28 cm x 38.41 cm x 8.46 cm) |
| Weight |
15 lbs. (6.8 kg) |
| Color |
Red |
| Notification cadence patterns |
13 preset patterns, including ANSI 3.41 |
| History file |
1,000 events |
| Operating environment |
Meets NFPA requirements for operation at 0 to 49°C (32 to 120°F) and 93% ± 2% RH non-condensing at 32°C ± 2°C (90°F ± 3°F) |
| Standards |
UL 864 10th Edition; complies with NFPA 13, NFPA 15, NFPA 16, NFPA 70, NFPA 72 |
| Agency listings |
UL Listed S2766; CSFM 7165-0559:0501; FDNY COA# 6298A; Seismic (CA) VMA-45894-05C |
| Country of origin |
USA |
Installation notes
-
Per-circuit and total Flexput ratings are different numbers: each Flexput circuit is limited to 1 A @ 27.4 VDC, while the panel's total power output is 2.5 A max @ 27.4 VDC. The headline "two Flexput circuits, 2.5 amps max" describes the combined panel output, not 2.5 A on each circuit.
-
Class A halves the circuit count: the terminal block yields either two Class B NACs or one Class A NAC.
-
SK and SD devices cannot be mixed in the same system, and the choice sets the ceiling: 100 points with SK, only 50 with SD. Refer to the Device Compatibility Document and SLC Wiring Manual.
-
Battery headroom is in the cabinet, not the charger: the charger is rated 7 to 35 AH but the cabinet only holds up to two 7 AH batteries, so larger standby calculations require an external battery enclosure.
-
End-of-line resistor: 4.7k ohm, ½ watt on Class B NAC circuits.
-
Wireless expansion: the panel supports up to four SWIFT wireless gateways, each of which can foster up to 49 wireless devices. SWIFT is compatible with System Sensor (SK) devices only, not Hochiki (SD).
-
Recommended ambient is narrower than the listed range: although the system meets NFPA requirements to 120°F, Honeywell recommends a normal room temperature of 15 to 27°C (60 to 80°F) to avoid shortening battery and component life.
-
Mounting: the cabinet can be surface or flush mounted.
Related models
-
5700 — the previous-generation panel the 6700 directly replaces
-
6820 — the larger platform in the same family, expandable to 1,110 SK points with six Flexput circuits
-
5895XL — 6 A power supply module with six Flexput circuits and two Form C relays, for adding notification power
-
6860 / 6855 / 5860 / 5860R — LCD remote fire annunciators; 5865-3 and 5865-4 LED annunciators
-
5880 — LED I/O module with 40 programmable LED outputs and eight supervised dry contact inputs
-
5883 — relay interface providing 10 Form C relays
-
5824 — serial/parallel printer interface module for printing system reports
-
WSK-WGI — SWIFT wireless gateway, up to four supported per panel
Specifications taken from the Honeywell Silent Knight data sheet "6700 Intelligent Fire Alarm Control Panel with Communicator," document 351607:C (3/8/2022). Manufacturer specifications are subject to change without notice.
