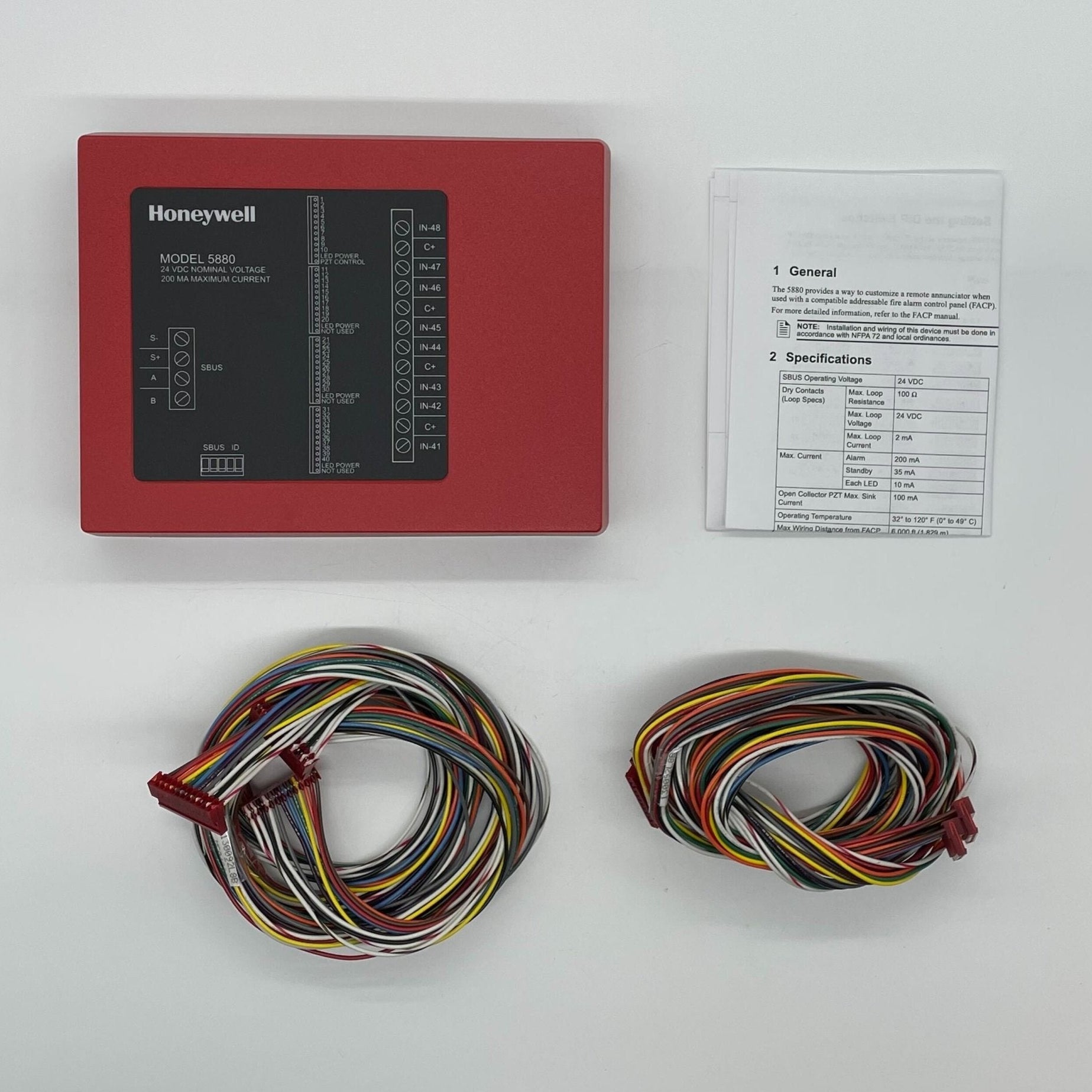

The Silent Knight 5880 LED driver module lets you build custom remote annunciation, such as graphic maps and zone displays, for a 5820XL panel. Each module has 40 programmable LED outputs and eight supervised dry-contact inputs. It is small enough to mount inside a remote graphic annunciator or an accessory cabinet.
Key Features
- 40 individually mapped, open-collector LED outputs
- 8 supervised inputs for dry contacts or a remote silence or reset switch
- No external resistors needed on the LED outputs
- DIP-switch addressable, with a 4-wire connection to the panel SBUS
- Up to eight 5880 modules per control panel
Specifications
-
Manufacturer: Silent Knight (Honeywell)
-
Part Number: 5880
-
Operating Voltage: 24 VDC
-
Current: 35 mA standby; 200 mA alarm; 10 mA per LED
-
Operating Temperature: 32°F to 120°F (0°C to 49°C)
-
Humidity: 10–85% non-condensing
-
Mounting: Inside an annunciator or accessory cabinet
-
Certifications: UL 864; FM approved; CSFM 7165-0559:0502; MEA 429-92-E Vol. 9
Compatibility
For use with the Silent Knight 5820XL. Also compatible with the 5820XL-EVS, 6820, 6820EVS, 6808, 6700, 5700 and 5808 addressable panels.
Documents
FAQ
How does the 5880 connect to the panel?

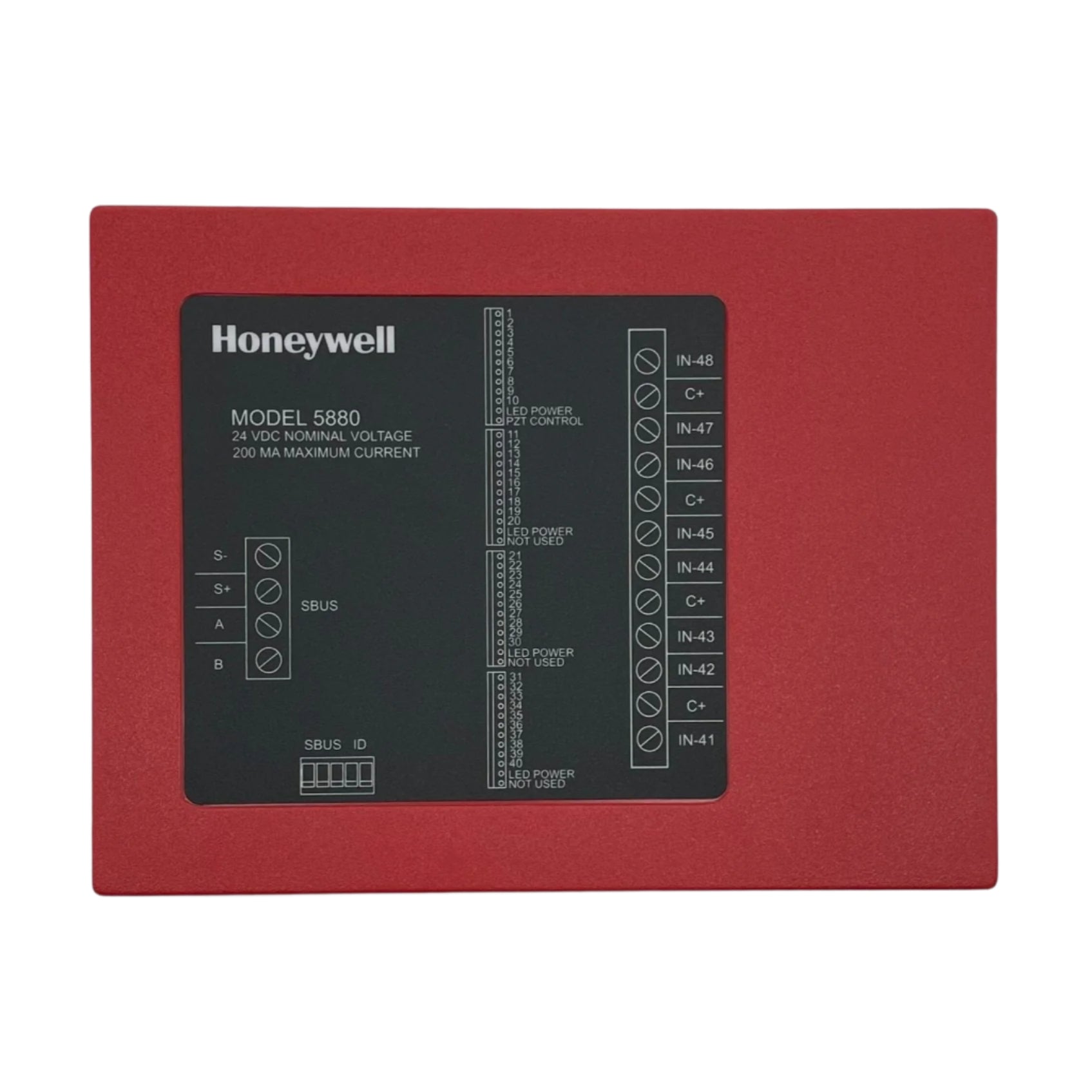

Over the FACP SBUS, using the A, B, + and – terminals. The SBUS wiring is supervised, power-limited Class B, and the module can be up to 6,000 ft (1,829 m) from the FACP.
Do the LED outputs need resistors?
No. Current is limited on each LED output, so no series resistor is required. The separate open collector PZT output does need an external current-limiting resistor.
What current does it draw?
35 mA standby and 200 mA maximum in alarm, with 10 mA per LED, on 24 VDC SBUS power.
Where is it mounted?

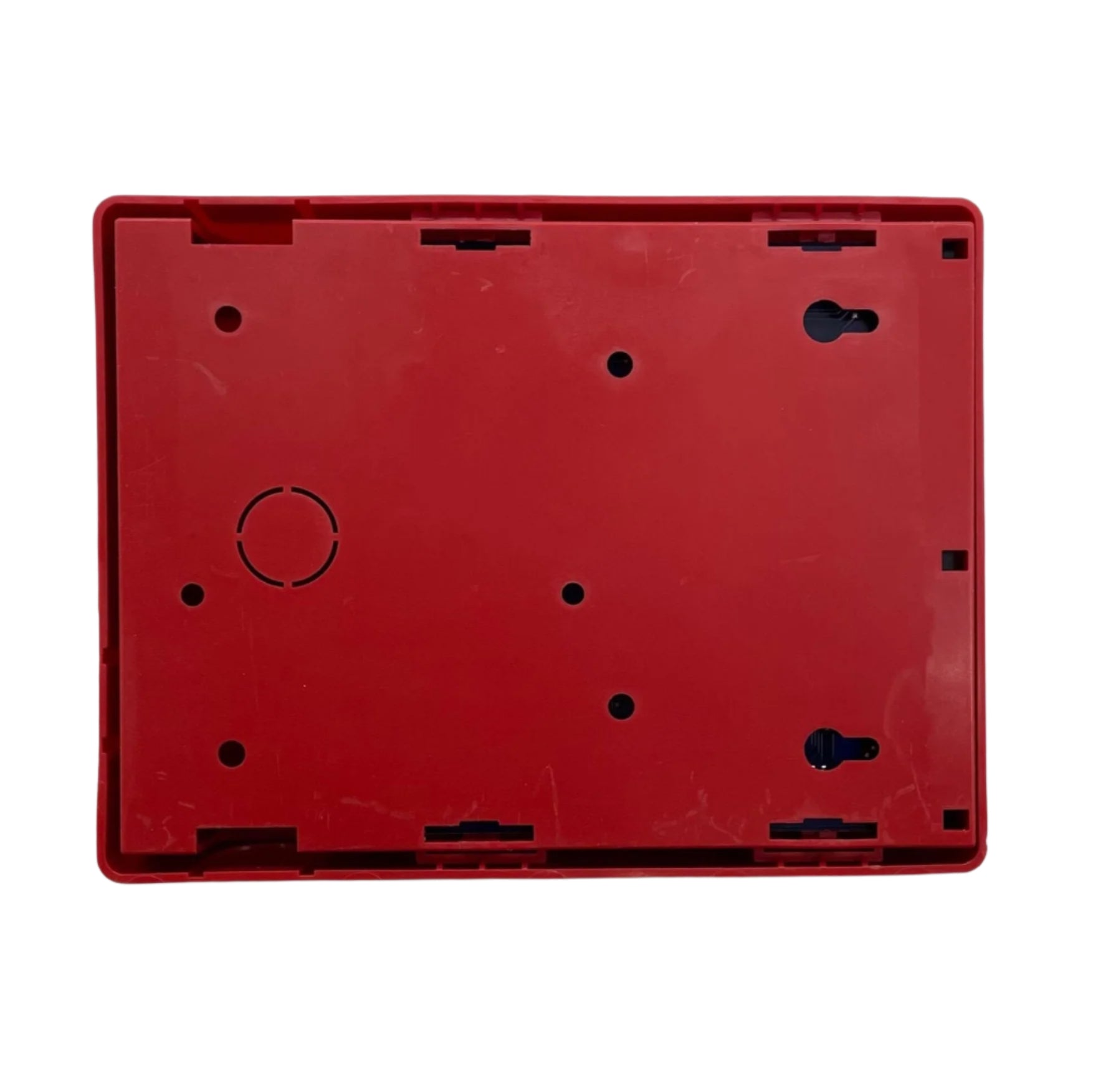

The 5880 comes in a plastic enclosure that must be mounted inside an annunciator or accessory cabinet, indoors in a dry location.
