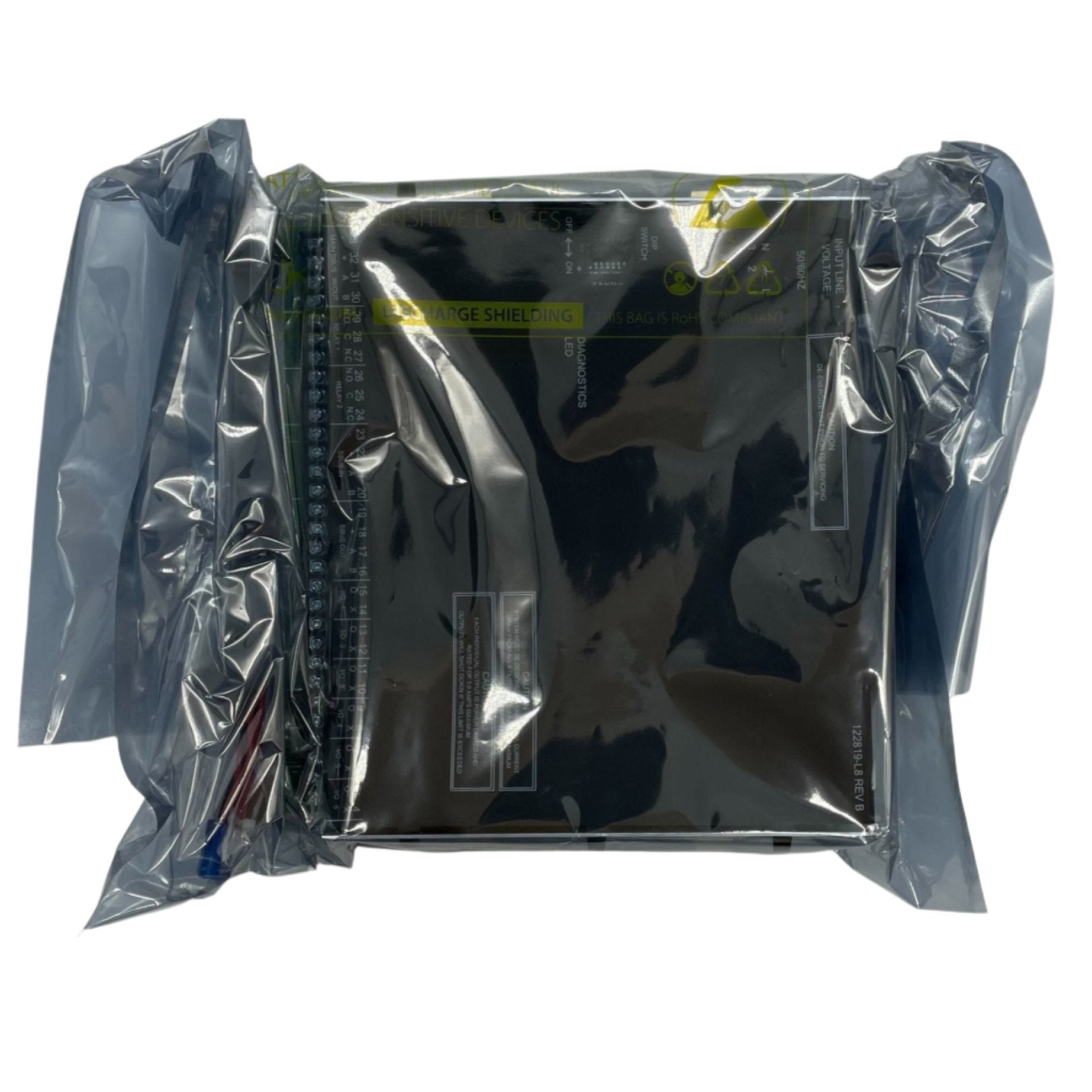

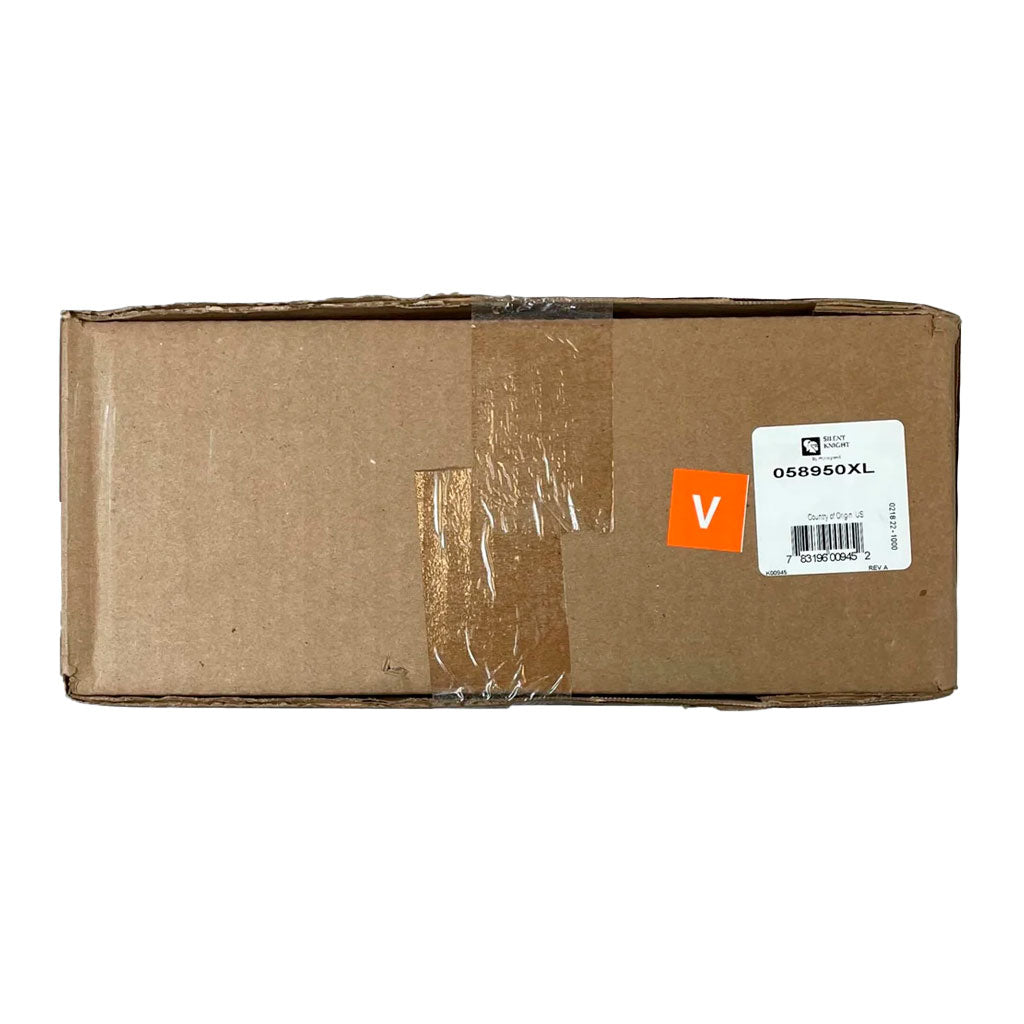

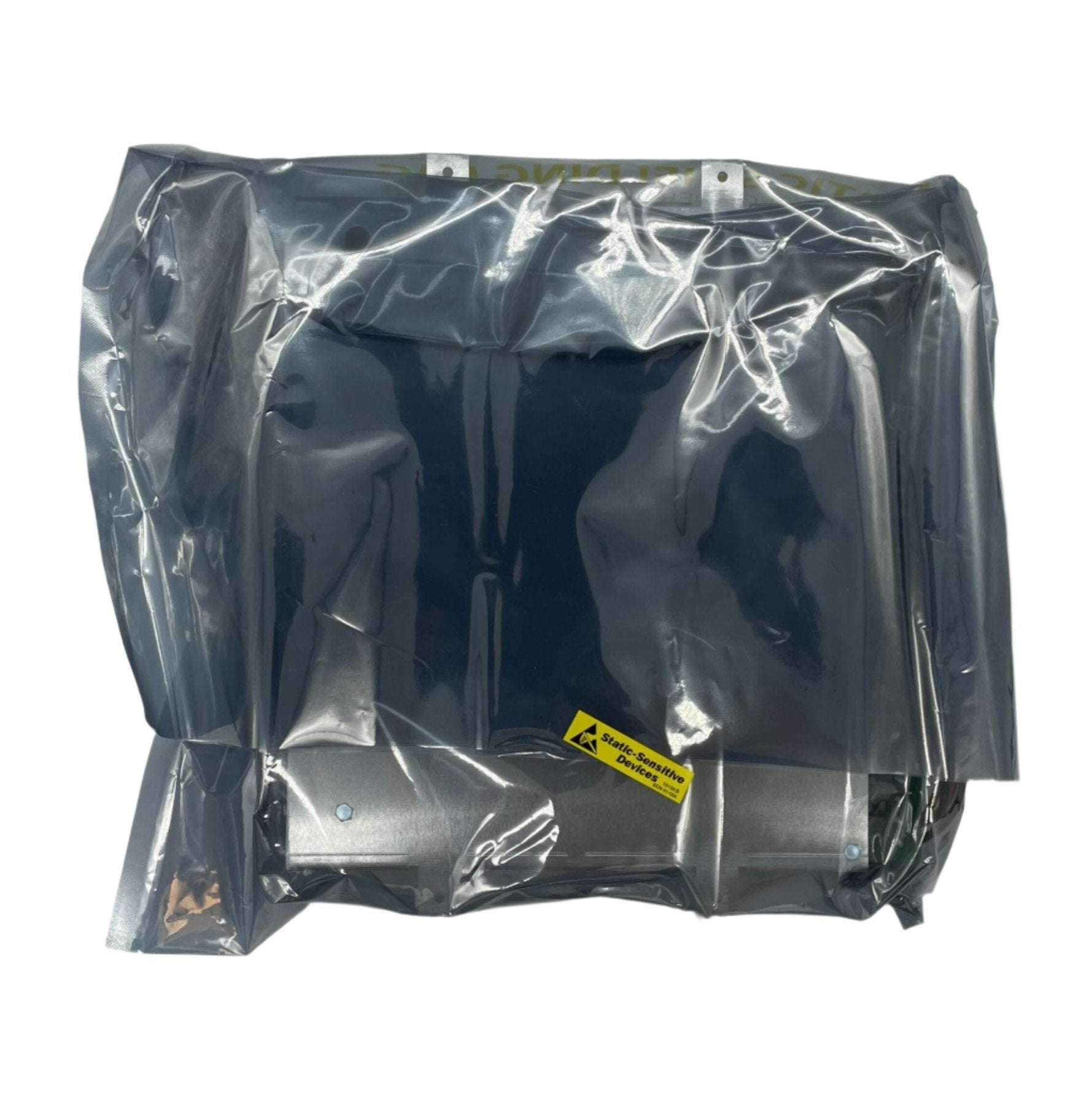

Silent Knight 058950XL — replacement printed circuit board for the Silent Knight 5895XL Intelligent Distributed Power Module.
The 5895XL is the power expander that adds six amps, six Flexput circuits and two relays to a Silent Knight addressable panel, and nearly all of that function lives on one board inside a large red cabinet that also holds the transformer and batteries. The 058950XL is what replaces that board, leaving the installed cabinet, wiring and batteries in place.
- PC board for use with Silent Knight 5895XL intelligent power modules
- Host module provides 6.0 A total accessory load at 24 VDC
- Six Flexput circuits at 3 A each: notification, conventional initiation or auxiliary power
- Two Form C programmable relays rated 2.5 A at 24 VDC
- Optically isolated RS-485 SBUS link to the panel, up to 6,000 ft of added wiring
- Module certifications: UL 864 10th Ed., UL 2572 2nd Ed., UL S35111, FM, FDNY
Check the code first: 005895XL is the complete module in its cabinet, RPS-1000HV the 240 VAC version, and 6815 and 5815XL are SLC expander boards for the same cabinet.
