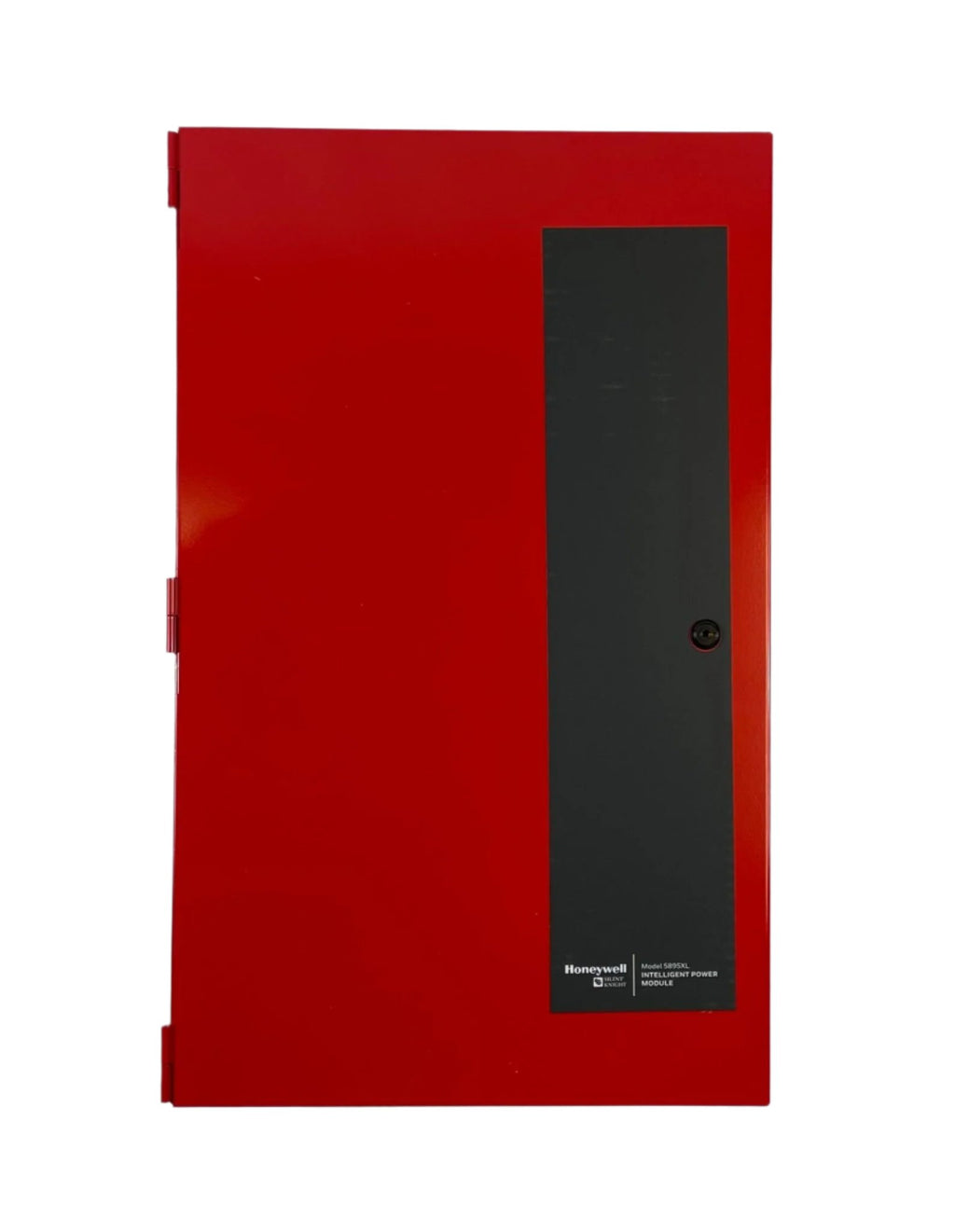

The Silent Knight 005895XL (Model 5895XL) is an intelligent power module that adds 6.0 A of output power, six Flexput I/O circuits and two Form C relays to an IntelliKnight 5820XL installation, distributing power where it is needed throughout a facility.
It connects to the panel over the RS-485 system bus (SBUS), carries its own AC connection, battery charger and backup batteries, and monitors AC power. Each 5895XL also has its own optically isolated RS-485 bus for 5860 remote annunciators, 5824 printer interface modules and 5815XL SLC expanders.
Specifications
| Output power |
6.0 A at 24 VDC total accessory load |
| Flexput circuits |
6, rated 3 A each: NAC, continuous, resettable or door holder power, or initiating circuits |
| Relays |
2 Form C, 2.5 A at 24 VDC |
| Primary AC |
120 VRMS at 60 Hz, 2.5 A; 240 VRMS at 60 Hz, 1.4 A |
| Current draw |
40 mA standby; 160 mA alarm |
| Battery charging |
Up to 35 Ah; cabinet holds two 18 Ah batteries |
| Wiring distance |
Up to 6,000 ft from the 5895XL |
| Dimensions |
14-1/2 x 24-3/4 x 3-7/8 in. (W x H x D) mounting; 16-1/8 x 26-3/8 x 4-1/8 in. overall |
| Operating environment |
32 to 120°F (0 to 49°C), 10 to 93% RH non-condensing |
| Certifications |
UL 864; CSFM; FM approved; MEA 429-92-E; OSHPD OSP-0065-10 |
Features
- Up to eight 5895XL modules per IntelliKnight system
- Optically isolated for ground loop isolation and transient protection
- SBUS repeater conditions the RS-485 signal for up to 6,000 ft of additional wiring
- Supports Class A configuration for SBUS and Flexput circuits
- Flexput inputs support 2-wire and 4-wire smoke detectors
- Built-in synchronization for AMSECO, Gentex, Faraday, System Sensor and Wheelock appliances

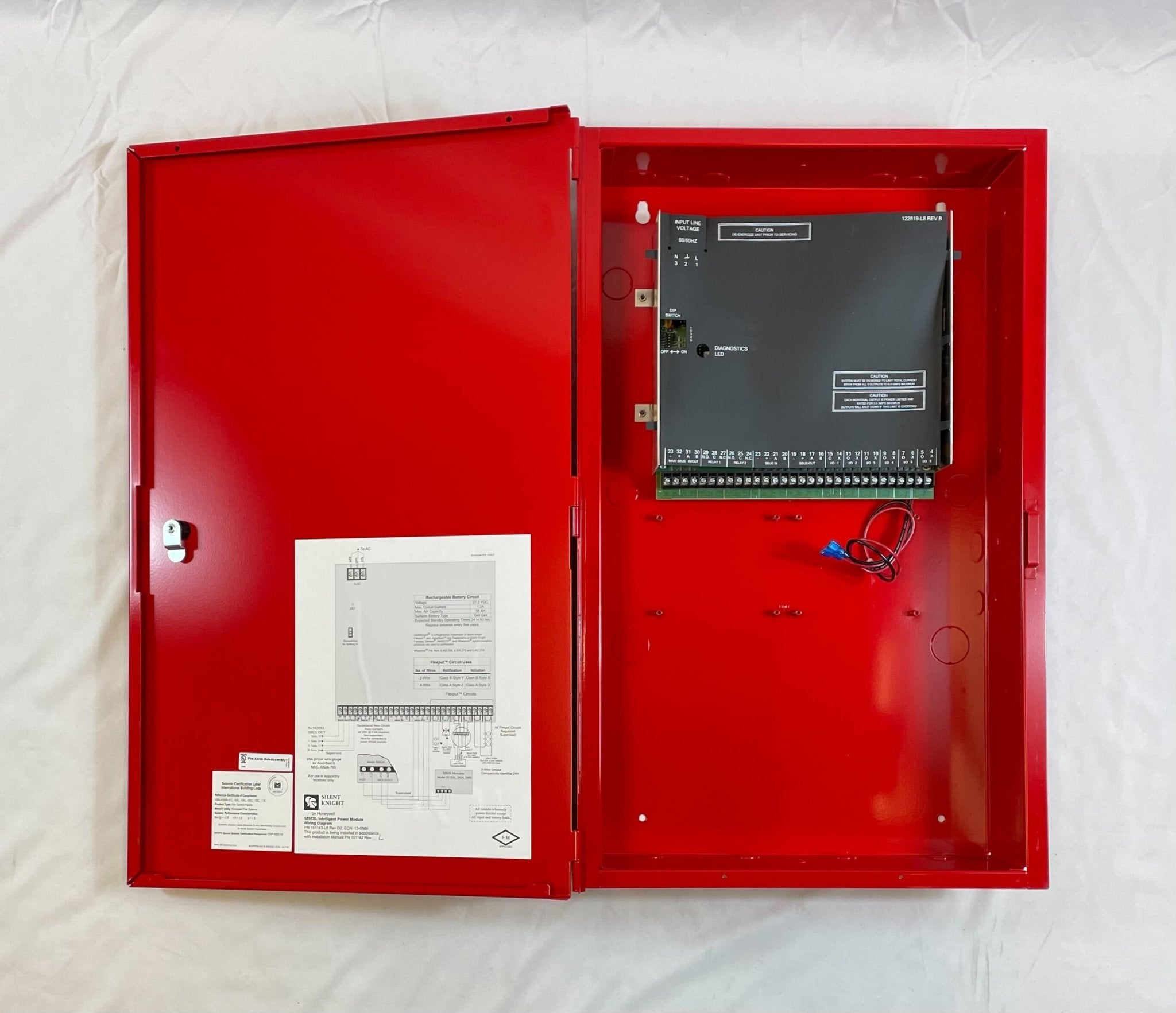

- Room in the cabinet for two 5815XL SLC expanders; RBB accessory cabinet for batteries larger than 18 Ah
- Flush or surface mount; green LED shows communication with the FACP
Related models
The SK-SCK seismic compliance kit is the accessory Silent Knight offers for the 5895XL. The 5496 is Silent Knight's separate intelligent power supply.
Documents
FAQ
Which panels does the 5895XL work with?
It is an IntelliKnight accessory for the 5820XL fire alarm control panel, connected over the RS-485 system bus. Up to eight modules can be used per system.
What can the Flexput circuits be used for?
Each of the six 3 A Flexput circuits can be a notification appliance circuit, continuous power, resettable power, door holder power, or an initiating circuit for 2-wire and 4-wire smoke detectors.
What batteries does it take?
The charger supports up to 35 Ah. The cabinet holds two 18 Ah batteries; larger batteries go in the RBB accessory cabinet.
Which strobe brands can it synchronize?
AMSECO, Gentex, Faraday, System Sensor and Wheelock.
