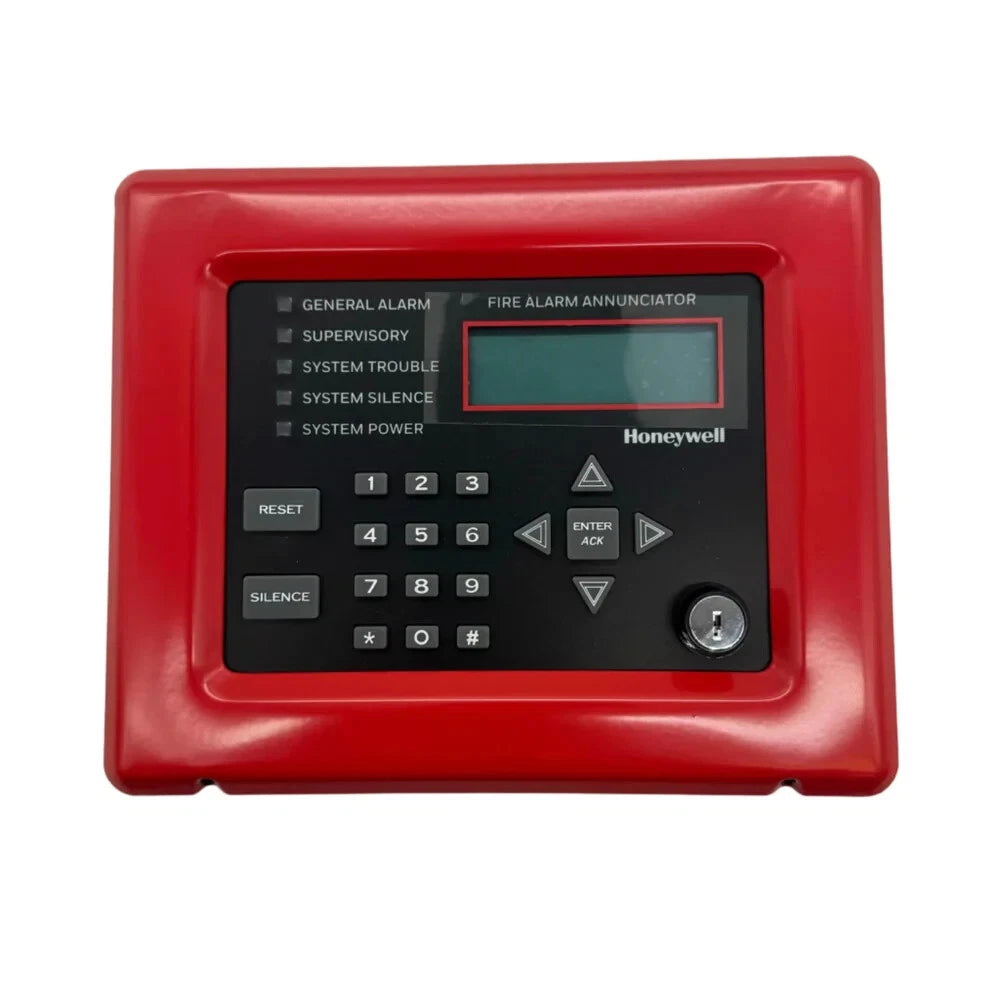

Silent Knight 005860R — remote fire annunciator with a four-line, twenty-character backlit LCD and a red bezel, catalogued by Honeywell as 5860R.
Installation document 151042:F calls the 5860 in gray and 5860R in red optional 4x20 remote annunciators. The IntelliKnight 5700 datasheet adds what makes them more than a repeater: the same 80-character backlit LCD keypad and firefighter key switch as the panel front, from which the system can be fully programmed and operated.
- Connects over the SBUS communication circuit, supervised, power-limited, Class B
- 24 VDC; 58 mA standby, 68 mA in alarm; 32 to 120 °F
- Address on DIP switches 1 to 6, any value 01 to 63; switch 8 sets end-of-line termination
- Bezel 9.125 in. W × 7.375 in. H; backbox 8.125 in. W × 6.44 in. H × 1.25 in. D
- Surface or flush mount; flush cutout 8.25 in. W × 6.625 in. H
It is an operator position rather than a controller: the panel runs without it. Trim ring kits 5860TR red and 5860TG gray are the surface-mount accessory, ordered separately, and the 5860 is the same annunciator in gray.
Documents
FAQ
Which panels is it compatible with?
Silent Knight 6820/6820EVS, 6808, 6700, 5820XL/5820XL-EVS, 5808 and 5700 fire alarm control panels.
How does it connect to the panel?
Over the RS-485 system bus (SBUS). The address is set on DIP switches, 01 to 63.
Can it be surface mounted?
Yes. It mounts flush or surface; the optional trim ring is used for surface mounting, 5860TR for the red model.
What is the difference between the 5860 and 5860R?
The 5860 is gray and the 5860R is red; both are 4x20 backlit LCD remote annunciators.
