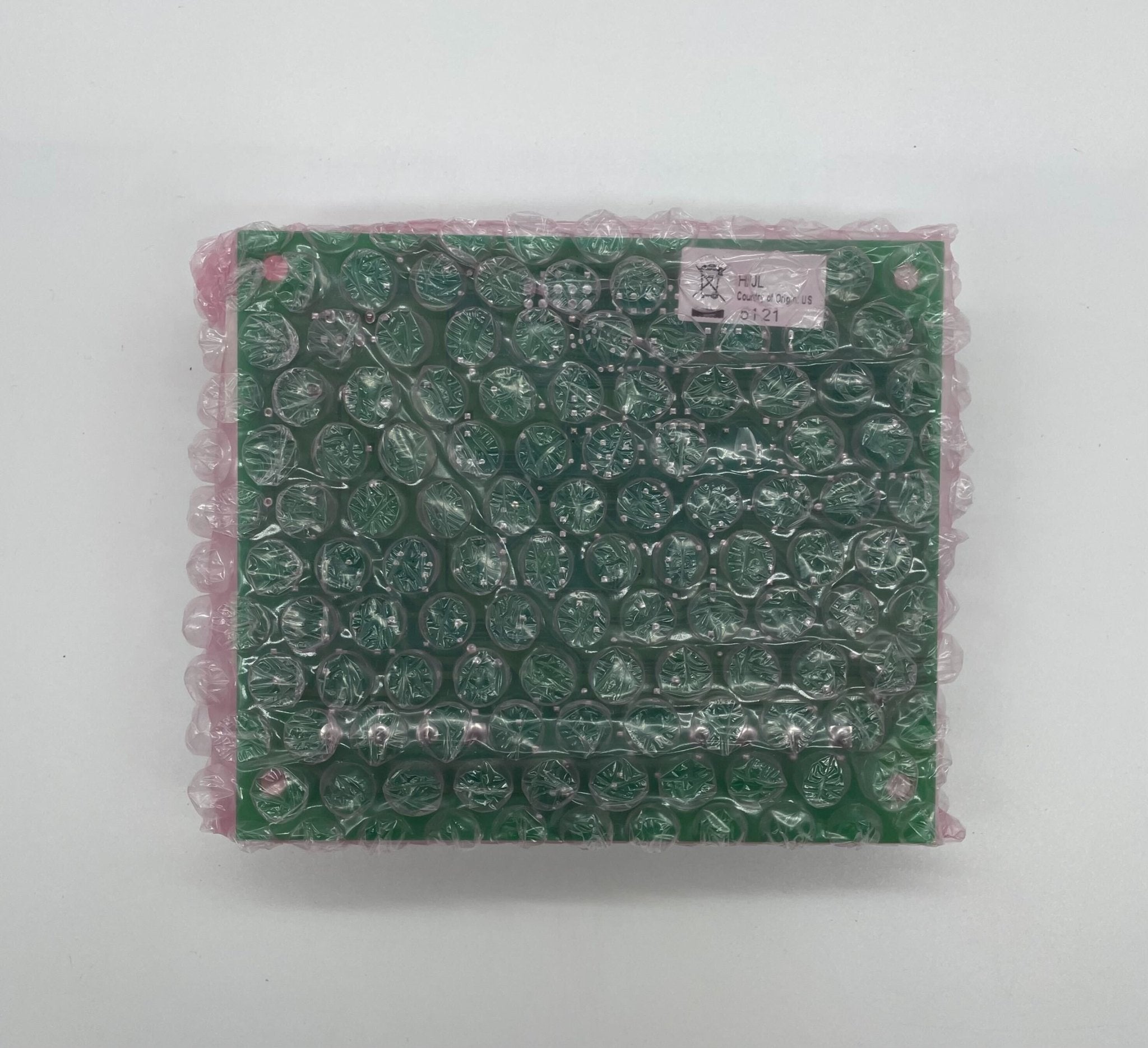

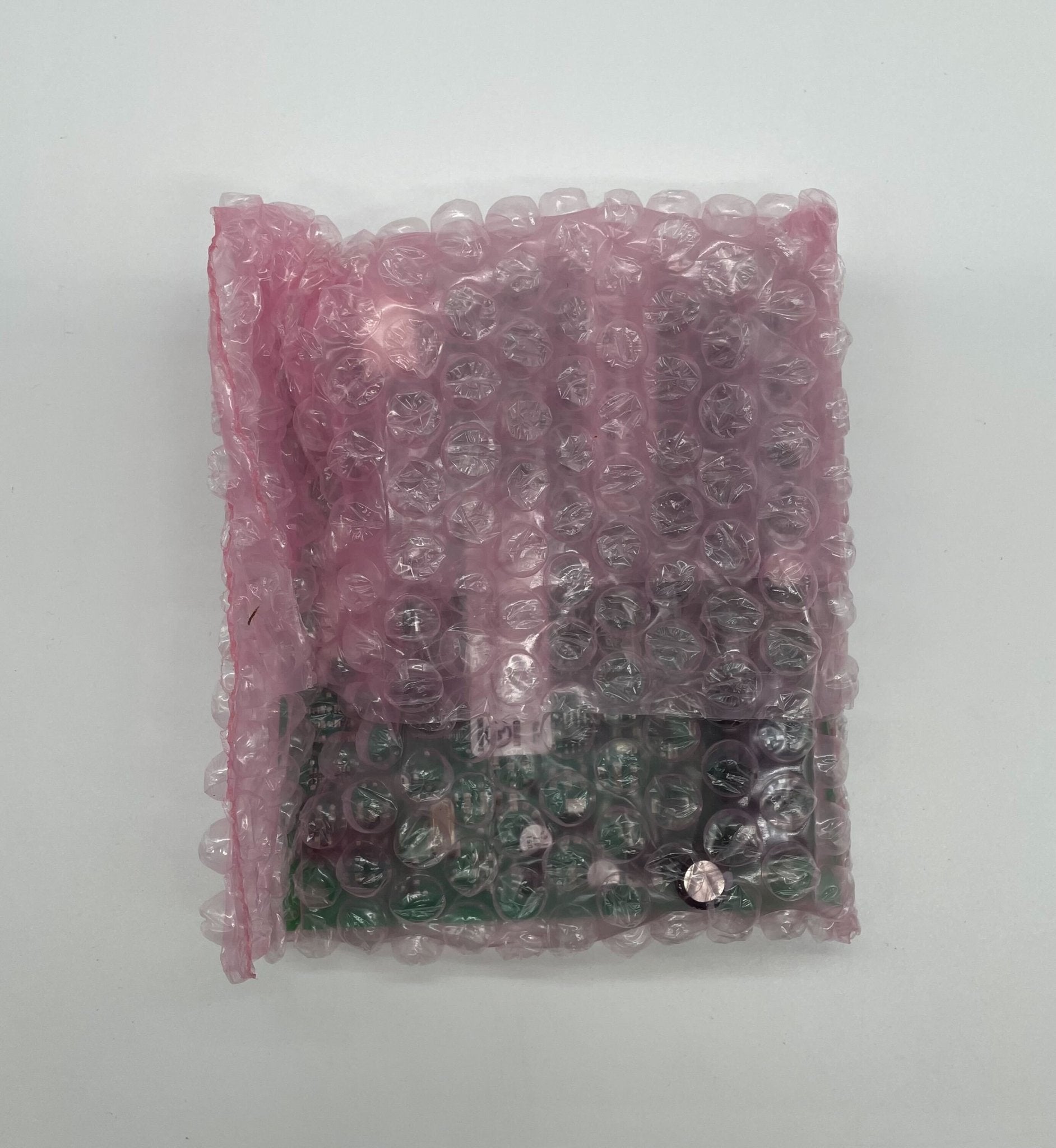

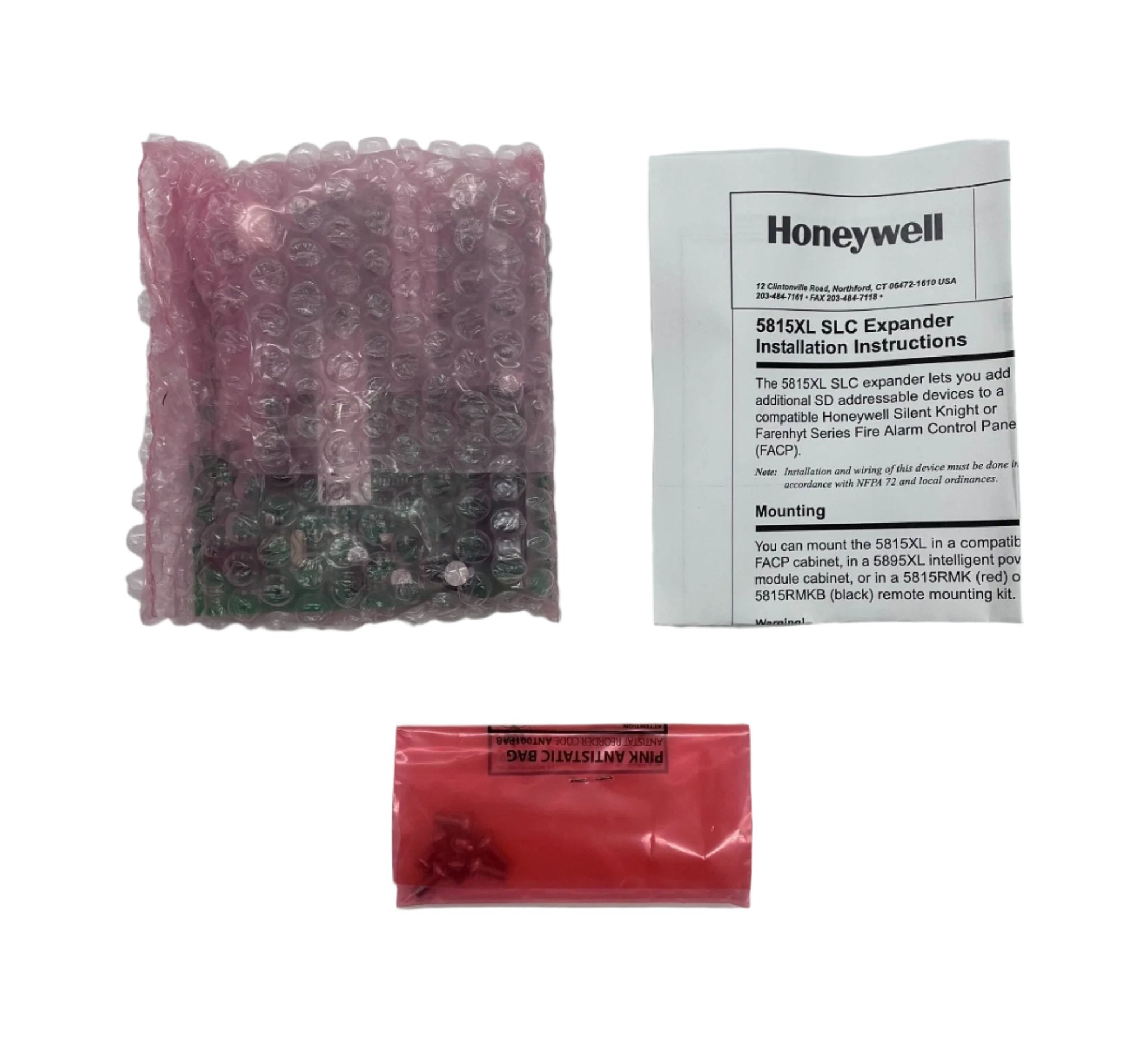

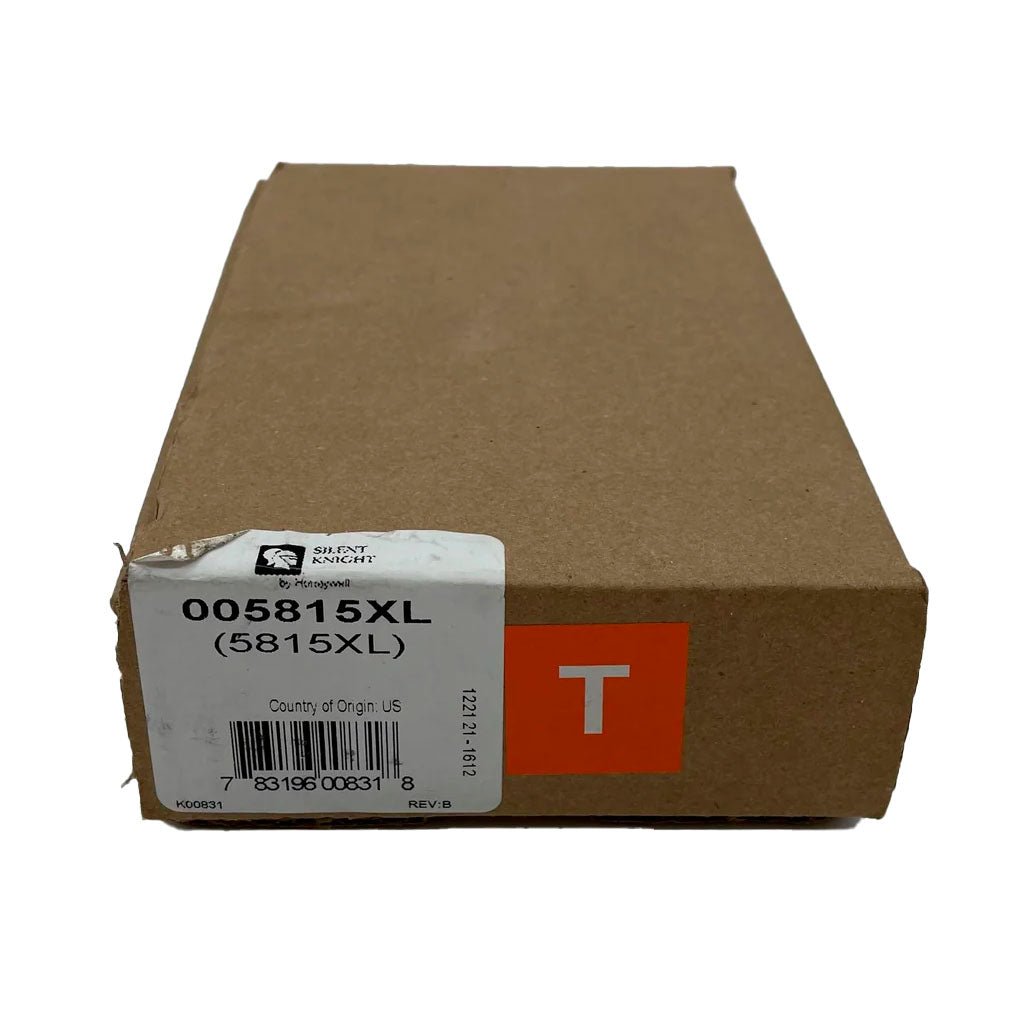

Silent Knight 005815XL — the 5815XL signaling line circuit expander, which adds an SLC of Hochiki SD addressable devices to a Silent Knight fire alarm control panel.
The board is an add-on, not something the panel needs to run. It hangs off the panel SBUS on RS-485, takes an ID from onboard DIP switches and is added in programming, after which its loop behaves like the SLC built into the panel, Class A included.
- Supports 127 SD addressable devices per expander
- Compatible with the Silent Knight 6820 and 6820EVS control panels
- Communicates over the RS-485 system bus; a green LED blinks when it is healthy
- Standard wire is acceptable for the SLC — twisted pair and shield are not required
- 24 VDC; 4.2 in. high by 4.8 in. wide; 32°F to 120°F
- UL 864 10th Edition and UL 2572 2nd Edition; UL certified S2766, FDNY, CSFM and FM
Two boards fit a compatible panel cabinet, a 5895XL power supply module cabinet, or the 5815RMK remote mounting kit. Earlier revisions of this data sheet also listed the 5820XL and 5820XL-EVS IntelliKnight panels; the current revision does not.
Documents
FAQ
Which panels does the 5815XL work with?
The current data sheet lists the Silent Knight 6820 and 6820EVS fire alarm control panels using SD SLC devices.
How many devices does each expander add?
Up to 127 Hochiki SD addressable devices per 5815XL. The panel supports up to 635 points with SD devices.
Where can the board be mounted?
Up to two 5815XL modules fit in the compatible panel cabinet, the 5895XL power supply cabinet, or the 5815RMK remote mounting kit.
Does the SLC need twisted or shielded wire?
No. The 5815XL SLC uses standard wire; twisted pair or shielded cable is not required.
