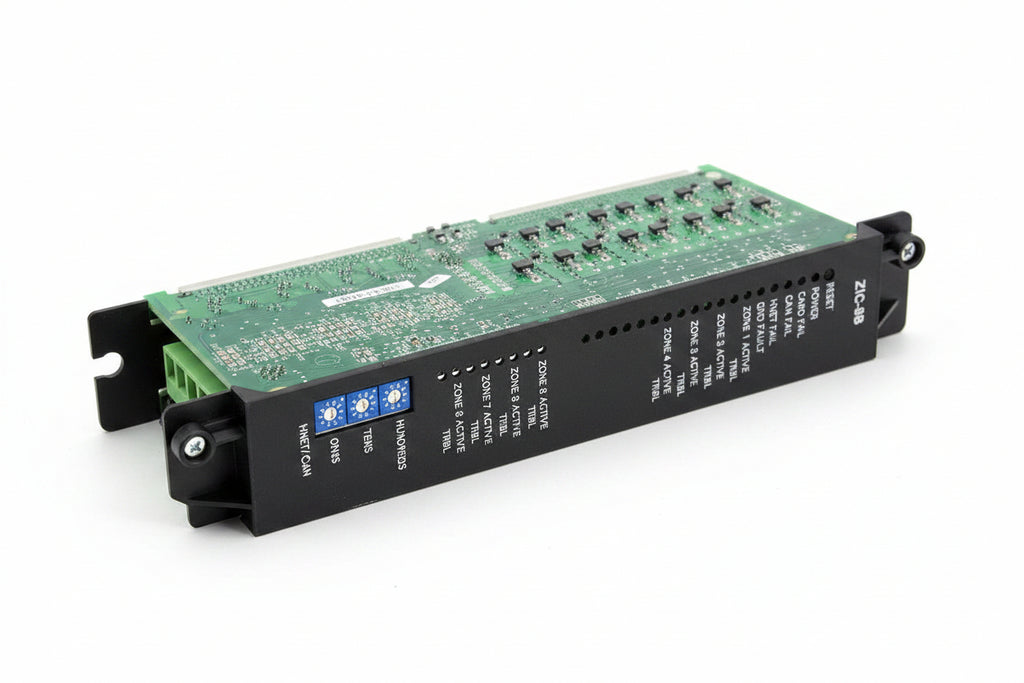

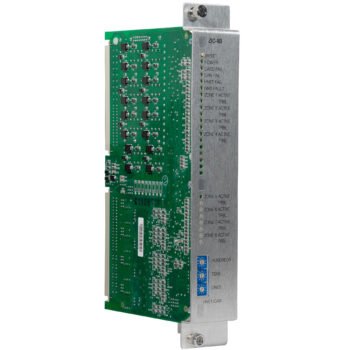

Siemens ZIC-8B (575-050569) is a zone indicating card that provides eight fully supervised, programmable Class B (Style Y) output circuits for a FireFinder XLS fire alarm control panel. Each circuit is power limited to 2.0 A and can drive audible or visual notification appliances or 25 or 70 VRMS emergency audio speakers.
The card plugs into one slot of a CC-5 or CC-2 card cage. An on-board microprocessor keeps the outputs working in a degrade mode if the main XLS processor or the local network link fails, responding to alarms from initiating devices in the same enclosure. The ZIC-2C mounts on the ZIC-8B for two-channel voice operation.
Specifications
| Outputs |
Eight Class B (Style Y) circuits |
| Rating |
2.0 A at 24 VDC per circuit, power limited per NEC 760 |
| Audio |
25 or 70 VRMS speakers; one or two channel voice with ZIC-2C |
| Coding |
ANSI Temporal, March Time 120/60/30 PPM, Canadian two-stage, custom |
| Mounting |
One slot, CC-5 or CC-2 card cage |
| Approvals |
UL 864 9th Ed., ULC; FM 3010, NYCFD 6160 |
Features
- Each circuit programmable as steady, coded, synchronized horn/strobe, strobe only or unsynchronized strobe
- Built-in strobe synchronization and ground-fault detection
- Circuits can be armed or disarmed from the PMI keypad
- LEDs for power, communication, operation, ground fault, activation and trouble
- With an EBA2004-A1 booster amplifier it can send audio to more speaker zones
Related models
ZIC-4A is the four-circuit zone indicating card, and ZAM-180 can feed high-level audio to the ZIC-8B.
