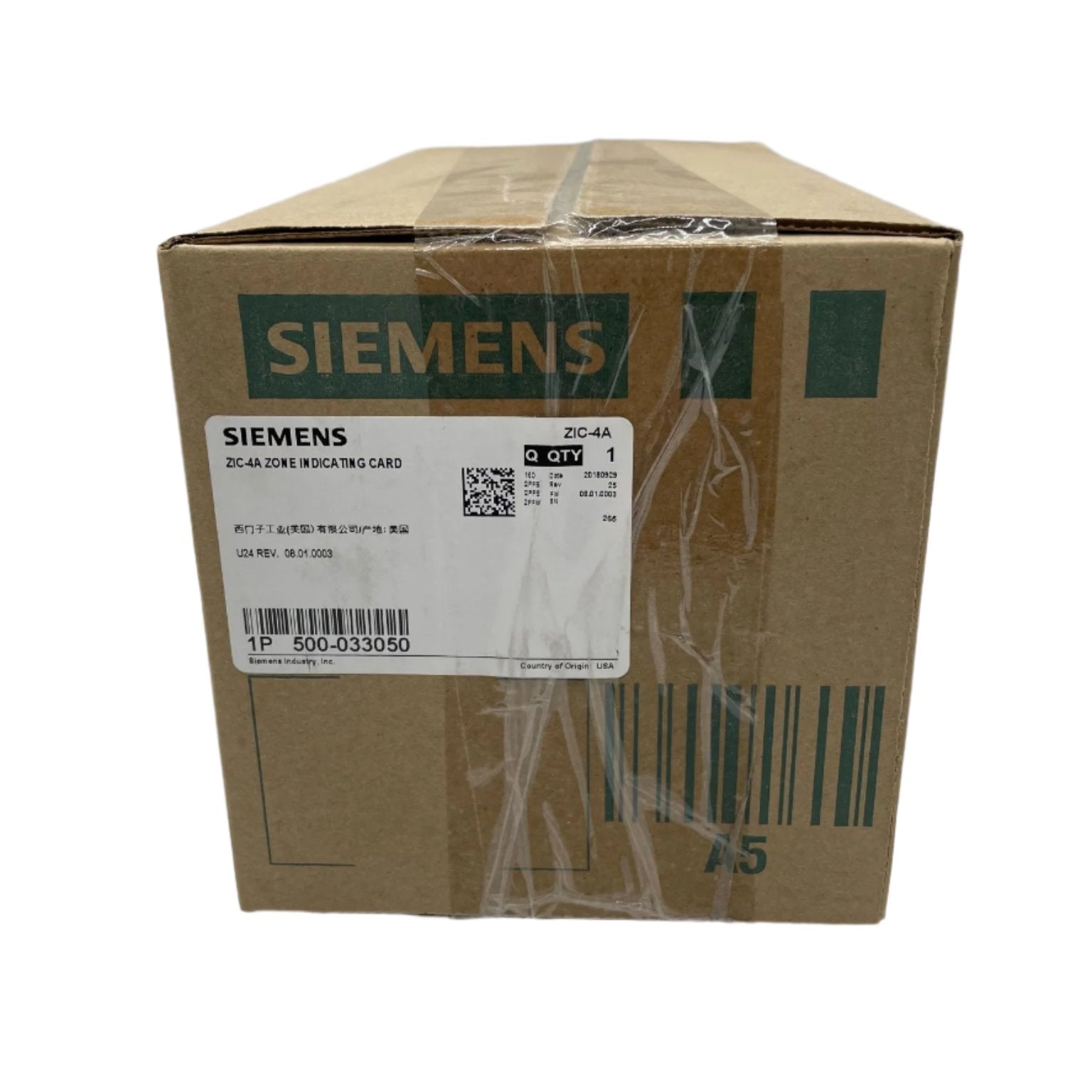

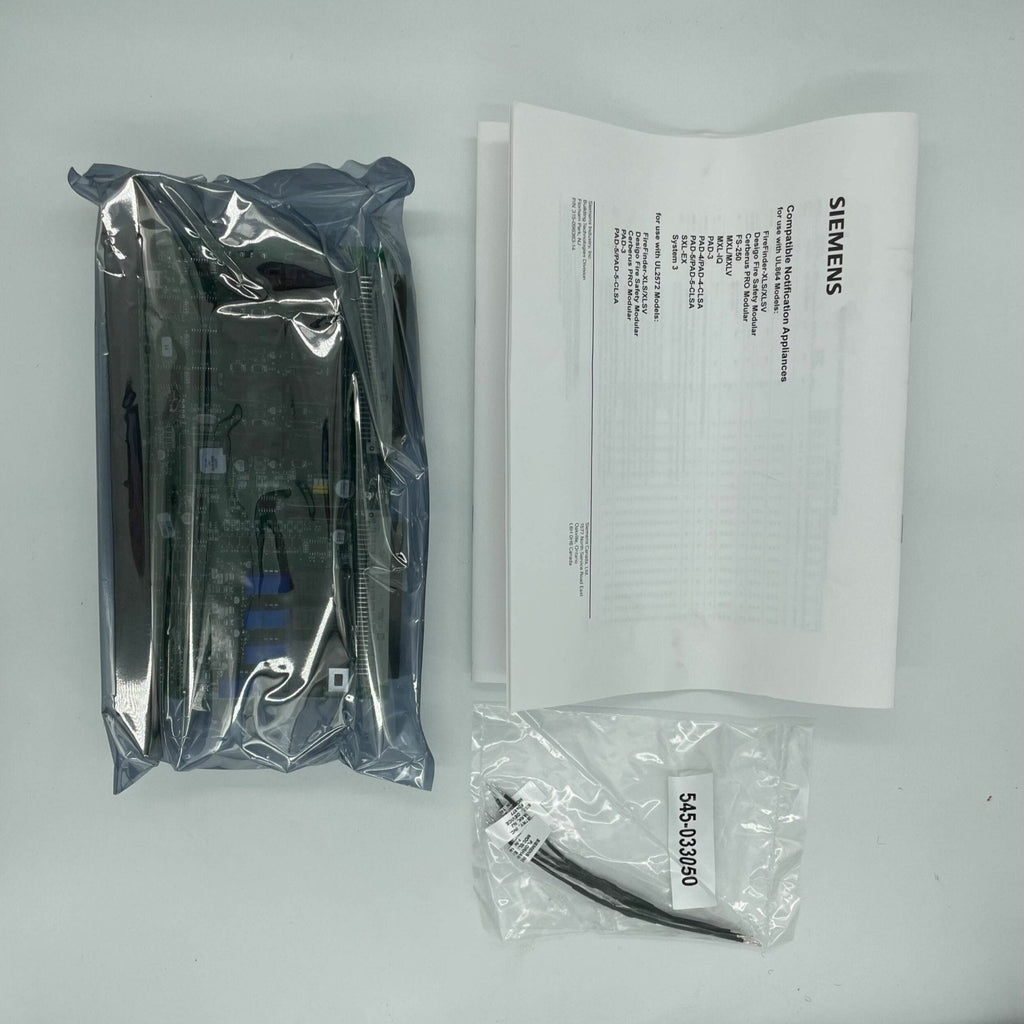

Siemens ZIC-4A — zone indicating card providing four notification appliance circuits for FireFinder-XLS, Desigo Fire Safety Modular and Cerberus PRO Modular systems.
The card occupies one slot in the CC-5 card cage and drives horns, speakers, bells and strobes. Each zone is configured independently in the Zeus tool and can serve as a standard or coded NAC, a speaker zone, a releasing circuit per NFPA 13 and 2001, a municipal tie or a leased line monitoring circuit. Zone inputs are isolated, so zones may be fed from different supplies.
- Four outputs, each configurable for Class A or Class B
- 3 A per circuit at 24 VDC; card standby current 89 mA
- Outputs supervised for open and short circuit; zone input voltage supervision
- Card level ground fault detection with diagnostic LED
- Thirteen LEDs, reset switch and three rotary H-Net address switches
- Strobe sync across all four zones of one card, but not between cards
Compare the ZIC-8B: eight outputs, Class B only, and it synchronizes automatically across cards. The ZIC-2C is not a zone card but a two-channel audio card that installs on a ZIC-8B.
Documents
FAQ
How many circuits does the ZIC-4A provide?
Four fully supervised, programmable output circuits, each Class A or Class B and power limited to 3.0 A at 24 VDC.
Where does it install?
It plugs into one slot of the CC-5 or CC-2 card cage and has on-board LEDs for power, communication, ground fault and circuit status.
Can it be used for releasing?
Yes. Circuits can be programmed as releasing circuits for NFPA 13 pre-action and deluge and NFPA 2001 agent systems, and the card is FM approved for single and double interlock pre-action operation.
Does it keep working if the main processor fails?
Yes. Its on-board microprocessor allows the outputs to run in a degrade mode if the main processor or local network link has failed.
