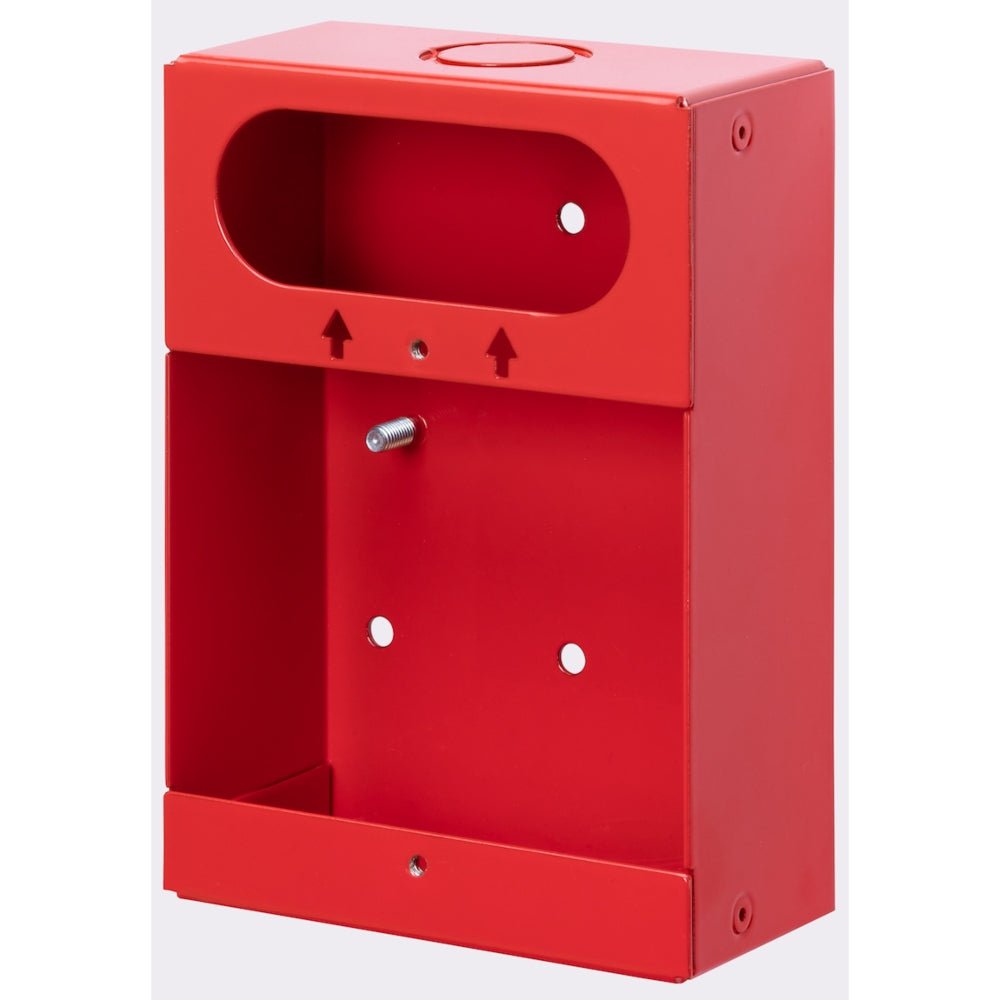

Siemens SMBOX-XMP — surface mounting backbox that carries an X-Series manual pull station on a finished wall instead of inside a recessed electrical box.
Siemens Datasheet 6364 lists it in Order Details as part number S54321-F20-A1, the surface mounting backbox for X-Series manual stations. XMS-Series stations normally sit in a 2-1/2 in. deep single-gang box; where nothing can be sunk into the wall, this steel enclosure takes the station on the surface. It ships alone, as an accessory: the pull station is a separate catalogue number.
- Siemens part number S54321-F20-A1
- 4 in. W × 5.54 in. H × 1.62 in. deep
- Steel, painted RAL 3020 red
- Carton holds the box and its installation instructions
- Wiring and programming follow the XMS-S/-D/-M instructions, Document ID A6V11439600
Two accessories in the same Siemens instruction sheet are easily confused with it, and neither is an enclosure: APLT-XMP (S54321-F21-A1) is a 0.075 in. steel plate adapting an X-Series station to an existing SB-5R surface box, and 4DGBOX-XMP (S54321-F22-A1) adapts one to a 4 in. square or double-gang box.
