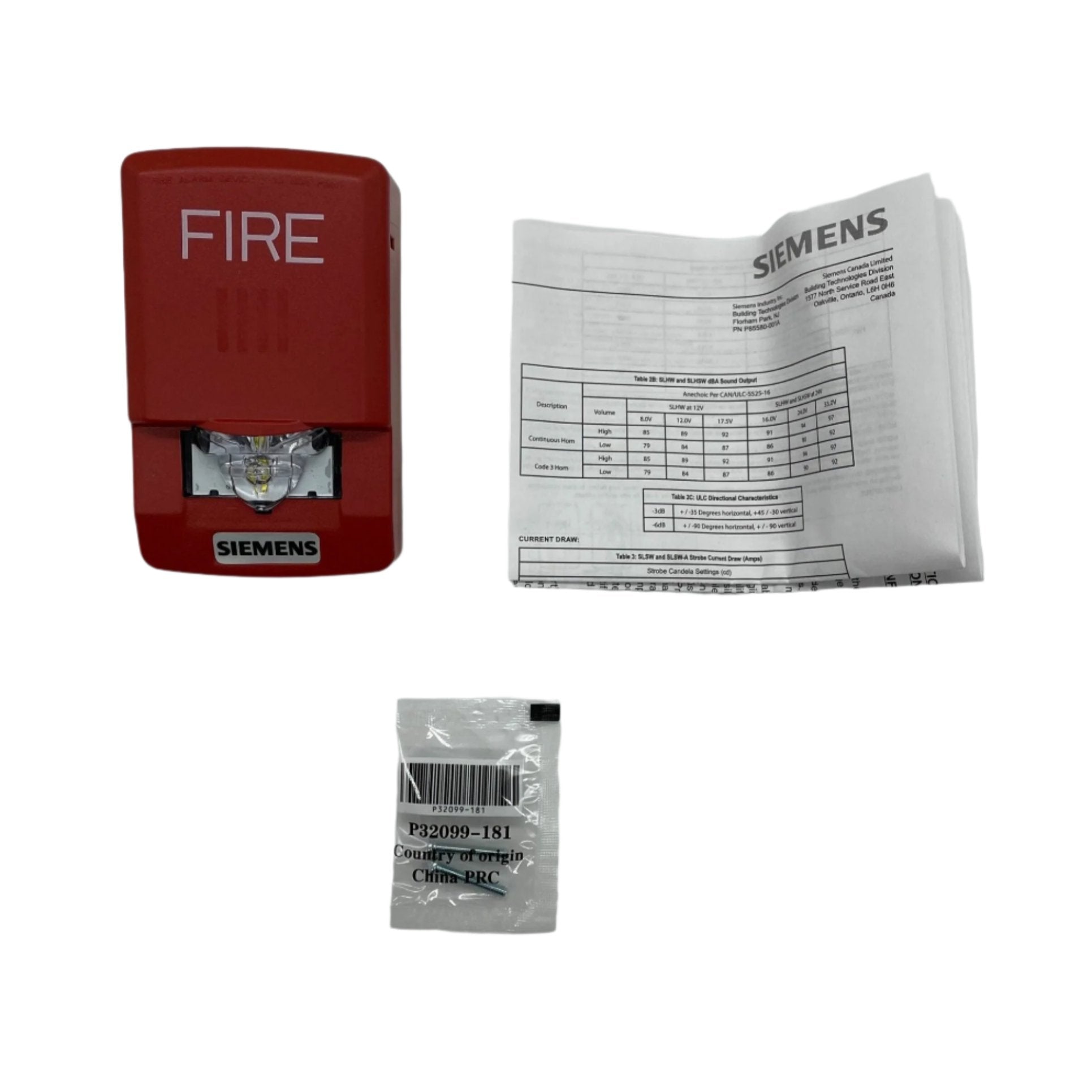

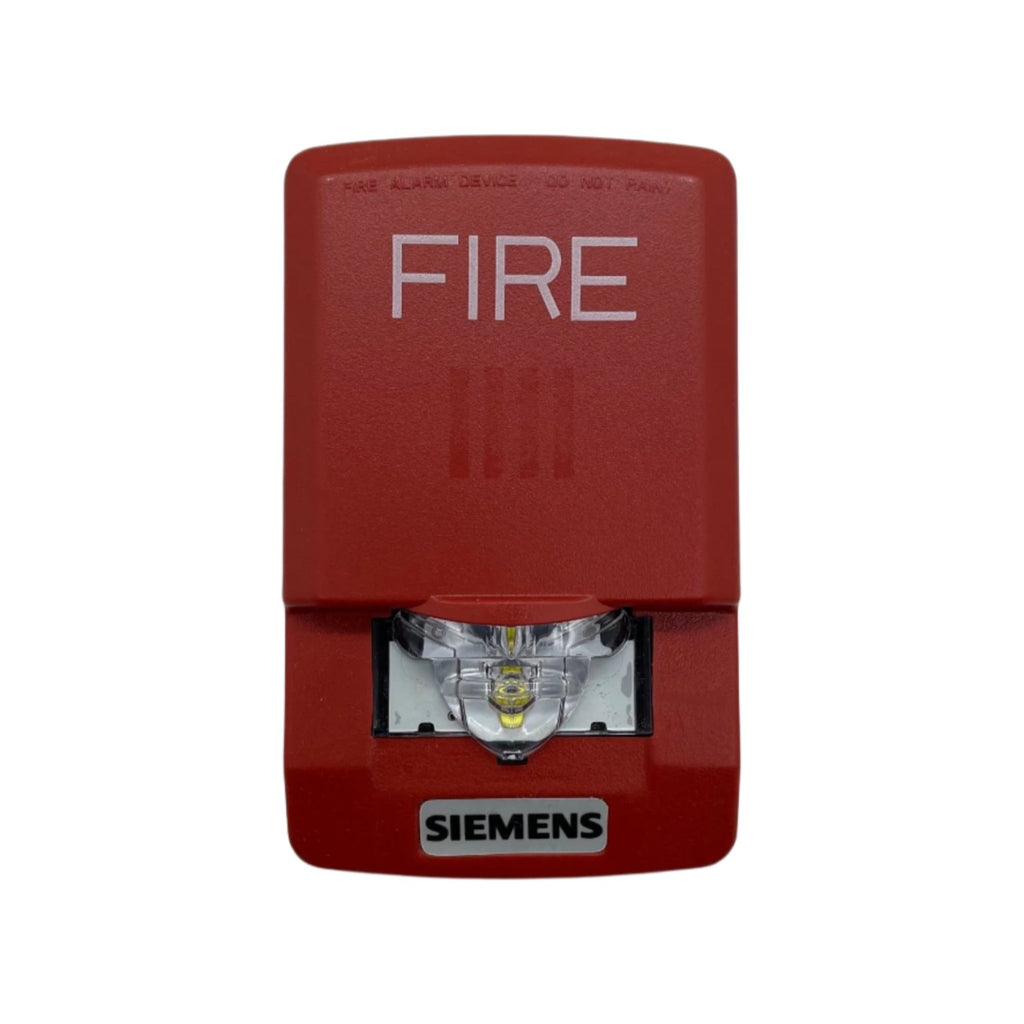

Siemens SLSWR-F (S54329-F25-A1) is a wall-mount SL-series LED strobe with a clear lens and a red faceplate marked FIRE. Four candela settings are selectable on one device, so a single model covers most wall-mount strobe layouts.
Specifications
| Part number |
S54329-F25-A1 |
| Mounting |
Wall, indoor |
| Lens / faceplate |
Clear lens, red, FIRE lettering |
| Candela settings |
15 / 30 / 75 / 110 cd, field selectable |
| Voltage |
Regulated 24 VDC / 24 VFWR (16-33 V) |
| Current (RMS, 24 V) |
0.030 / 0.040 / 0.102 / 0.201 A at 15 / 30 / 75 / 110 cd |
| Flash rate |
1 flash per second |
| Temperature range |
32 to 122 F (0 to 50 C) |
| Dimensions |
4.53 H x 2.76 W x 1.27 D in; trim plate 5.25 x 4.58 x 0.32 in |
| Weight |
0.35 lb |
Features
- Slide switch sets candela with no tools; no visible mounting screws
- LED strobe meets the 20 ms pulse duration of NFPA 72 and can share a field of view with Xenon strobes
- Mounts to a single-gang backbox (SLSBB) or a 4 in square box with an SLSGP adapter kit
- UL 1971 and ULC-S526 certified; wiring #12 to #18 AWG
Works with Siemens addressable panels, Modular FACPs, PAD-series NAC extenders, FireFinder XLS/XLSV and dual-sync (DSC) modules.
