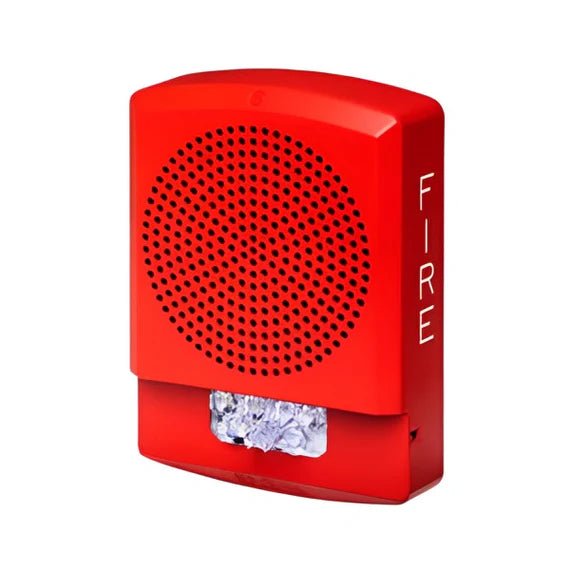

Siemens SL2SPSWR-F — SL2 Series 8-watt high-fidelity speaker strobe, wall mount, clear lens, red faceplate lettered FIRE, part number S54329-F172-A1.
One appliance on two circuits: a speaker on a 25 or 70.7 VRMS audio riser for voice evacuation and tone signalling, and an LED multi-candela strobe on a regulated 24 V notification circuit. Data sheet 2604 confirms the panel compatibility claimed here.
- Six wall candela settings: 15, 30, 75, 110, 135 and 185 cd
- Strobe 16 to 33 V DC or FWR, 0.022 A at 15 cd to 0.185 A at 185 cd
- Seven taps from 1/8 W to 8 W, 25 or 70.7 VRMS; ships set to 70.7 V, 1/2 W, 15 cd
- 74 to 90 dBA reverberant at 10 ft per UL 1480 on the 70 V tap; 300 to 8000 Hz
- UL 1480, UL 1638, UL 1971, ULC-S541-16 and ULC-S526-16 certified; FM approved
- Indoor only, 32°F to 122°F; SL2SPBB backbox or a 4 in. square box
SL2SPSWW-F is the white twin and SL2SPSWR-N drops the lettering. SL2SPSCR-F is the ceiling model, topping out at 150 and 177 cd. SL2SPWR-F is a speaker with no strobe, and SL2MTSWR-F is a multi-tone strobe on a 24 V notification circuit rather than a speaker riser.
