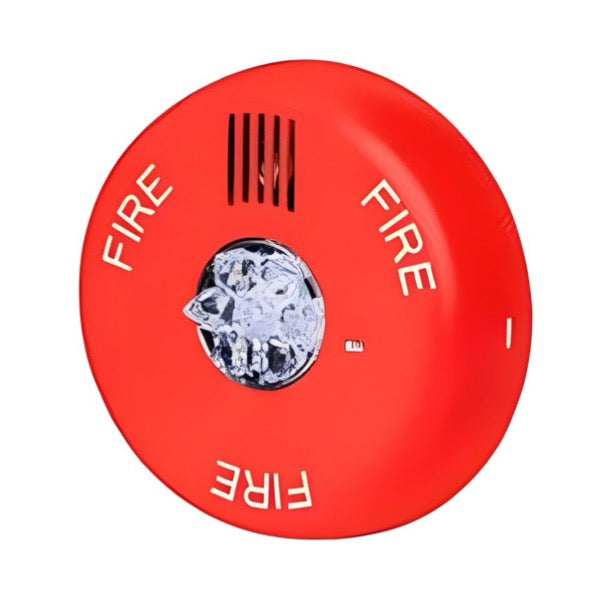

The Siemens SL2HSCR-F (S54329-F89-A1) is a ceiling-mount horn strobe from the SL2 series of LED-based notification appliances, finished in red with "FIRE" lettering and a clear lens. It is used in commercial buildings where audible and visible alarm notification must come from a low-profile ceiling device, and it works for both new installations and retrofits.
Key Features
- LED strobe technology significantly reduces current draw compared with xenon designs
- Six field-selectable candela settings (15, 30, 75, 110, 150, 177 cd) set with a tool-free slide adjuster
- Horn selectable for temporal or steady output with high or low dBA settings
- Meets the 20 ms light-pulse-duration requirement of the 2016 edition of NFPA 72, so it can share a field of view with existing Siemens xenon strobes
- Low-profile design with no visible mounting screws
Specifications
-
Manufacturer: Siemens
-
Part Number: SL2HSCR-F (S54329-F89-A1)
-
Mounting: Indoor, ceiling only; mounts to a single-gang or 4" square backbox, or surface mounts with the SLSPBBC backbox
-
Color / Marking: Red housing, "FIRE" lettering, clear lens
-
Operating Voltage: 24 VDC / VFWR (16.0–33.0 V regulated range)
-
Candela: 15 / 30 / 75 / 110 / 150 / 177 cd, field-selectable
-
Flash Rate: One flash per second
-
Dimensions: 6.27" x 6.27" x 1.69" (15.9 x 15.9 x 4.29 cm)
-
Operating Temperature: 32°F to 122°F (0°C to 50°C), indoor use only
-
Wire Size: 12–18 AWG
-
Certifications: UL 1638, UL 1971, UL 464; ULC-S525-16, ULC-S526-16; FM and CSFM approved
Compatibility
Strobe synchronization is supported by Siemens addressable panels, Siemens PAD-series NAC extenders, FireFinder XLS/XLSV FACPs and Siemens dual-sync (DSC) modules.
Documents
FAQ
How much current does the SL2HSCR-F draw?
At 24 V on high dB continuous, current ranges from 0.037 A at 15 cd to 0.208 A at 177 cd. Low dB settings draw slightly less, 0.030 A to 0.201 A.
Can it be used next to existing xenon strobes?
Yes. The LED strobe meets the 20 ms light-pulse-duration requirement of the 2016 edition of NFPA 72, so existing xenon and new LED devices can share a field of view.
What box does it mount on?
A single-gang or 4 in. square back box for flush mounting, or the SLSPBBC back box for surface mounting.
What synchronizes the strobes?
Siemens addressable panels, PAD-series NAC extenders, FireFinder XLS/XLSV panels and Siemens dual-sync control (DSC) modules.
