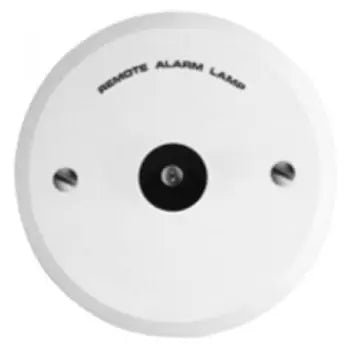

The Siemens ─ Fire Safety Division Intelligent Remote Lamps (Model RLI-1 for ceiling-mount; Model RLI-2 for wall-mount) are designed for use with initiating devices that are concealed or otherwise not easily within view (e.g. ─ above suspended ceilings, under
sub-floors, in unexposed ventilating ducts, normally locked vaults or closed rooms, etc.)
Both of these intelligent lamps operate with the Siemens MXL family of fire alarm control panels.
Model RLI-1 is mounted on a 4” (10.2 cm.) octagon outlet box, and Model RLI-2 is mounted on a singlegang electrical box. Although there is no mounting limitation, Model RLI-1 is often ceiling mounted, and Model RLI-2 is wall mounted.
Specifications
Model RLI-1 shall mount on a standard 4-inch, (10.2 cm.) octagon conduit box, and Model RLI-2 on a standard, single-gang switch box. The wiring between the remote alarm lamp and the initiating device shall be #18 American Wire Gauge (AWG) thermoplastic-fixture wire enclosed in conduit, or #18 AWG limited-energy, shielded cable without conduit (if permitted by local building codes).
Installation wiring shall be as indicated in system drawings.
