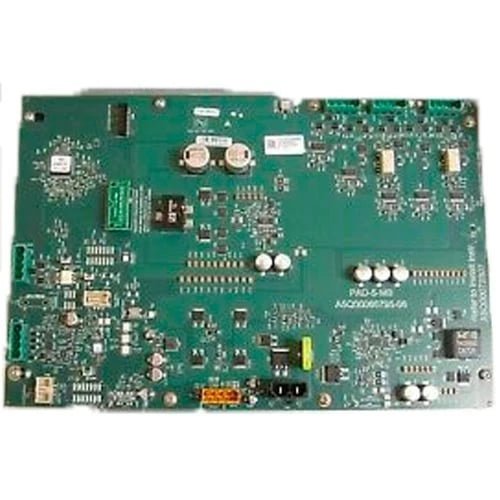

Siemens PAD-5-MB is the main board used in PAD-5 addressable power supply units. It provides remote, auxiliary power for signaling appliances and lets notification appliance circuits be expanded with cards that plug into the board. Each PAD-5-MB connects to the P2 loop of a Siemens X-series device loop card (XDLC) on a Siemens Modular fire alarm control panel, and up to 32 PAD-5 main boards or expansion cards can connect to one XDLC.
The board has one address and is programmed with the Siemens DPU device programmer/test unit. Four Class B or two Class A NACs are standard, rated 3 A each for 24 VDC reverse polarity appliances, and the PAD-5-CLSA expansion module adds four more Class B or two more Class A circuits. A supervised NAC follower input can be driven by a Siemens FACP NAC or from another PAD-5 main board.
Specifications
| Function |
Main board for PAD-5 addressable power supply units |
| Loop |
Siemens P2 loop via XDLC; 1 address |
| Standard NACs |
4 Class B or 2 Class A, 3 A each |
| Expansion |
PAD-5-CLSA: 4 Class B or 2 Class A more |
| NAC power |
Up to 6 A with FP2011-U1, up to 9 A with FP2012-U1 |
| Auxiliary output |
3 A at 24 VDC |
| EOL values |
Automatically recognized, 2.2 k to 24 kΩ |
| Output modes |
Steady, synchronized strobe, Temporal 3, Temporal 4, March Time 30/60/120 PPM |
| Certifications |
UL 864 10th Edition, UL 1076, UL 2017, UL 2572; ULC-S527, ULC-S576; FM approved |
Installation notes
- Program the P2 address with the DPU device programmer/test unit
- A PAD-5-CLSA must use the next sequential address after its PAD-5-MB
- Internal charger supports batteries up to 18 Ah (1HU) or 35 Ah (2HU), and up to 100 Ah in a BB-55 Series battery box
- A Form C trouble/AC fail contact and an N.O. ground fault relay are provided for monitoring
Related models
- PAD5-6A: complete 6 A PAD-5 unit with enclosure and power supply
- PAD-5-CLSA: Class A/B NAC expansion module
Documents
FAQ
What panel does the PAD-5-MB work with?
It connects through the P2 loop of a Siemens XDLC device loop card on a Siemens Modular fire alarm control panel. Up to 32 PAD-5 main boards or expansion cards can connect to one XDLC.
How is the board addressed?
The PAD-5-MB uses one address and is programmed with the Siemens DPU device programmer/test unit.
How many NACs does it have?
Four Class B or two Class A NACs are standard, rated 3 A each. The PAD-5-CLSA expansion module adds four Class B or two Class A circuits.
How much NAC power is available?
Up to 6 A with the FP2011-U1 power supply or up to 9 A with the FP2012-U1, plus 3 A of auxiliary output.
