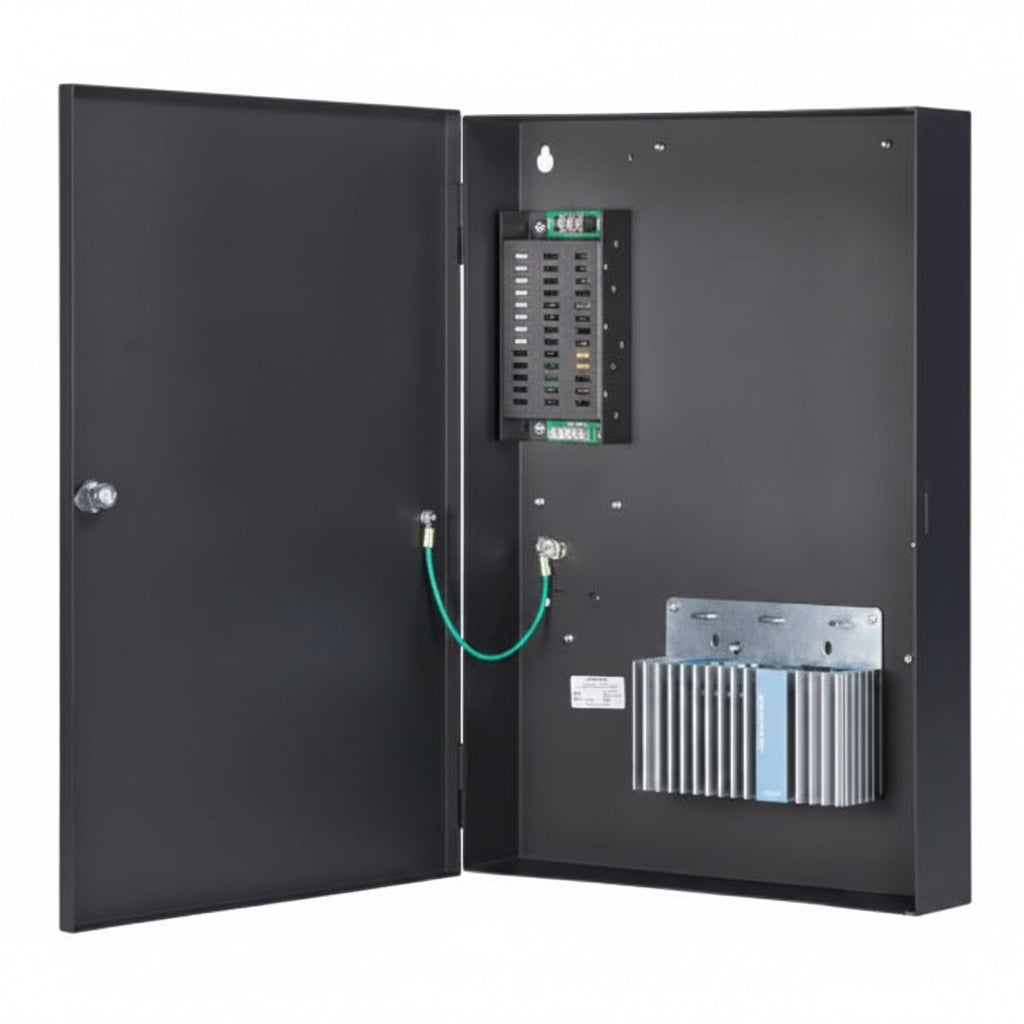

Siemens PAB-ENCL — black one-height-unit (1HU) enclosure for PAD-series power units and the Booster Amplifier.
Siemens builds the PAD-5 range around two universal housings, and the height unit is the sizing term: 1HU is the basic enclosure, 2HU the taller one that will take two main boards and two supplies. Either size is a universal housing usable on any Siemens PAD-series power supply unit and on the Booster Amplifier, which is where the PAB name comes from. Ordered on its own it is the housing line item: the PAD5-6A and PAD5-9A kits are what bundle a PAB-ENCL with a main board and a supply.
- Siemens P/N S54339-A8-A1, black
- 1HU: 16.0"W × 24.0"H × 3.50"D (40.6 × 60.9 × 8.8 cm)
- Takes one 170 W FP2011-U1 or one 300 W FP2012-U1 supply, one PAD-5 main board, one adapter plate, and one PAD-5-CDC or one PAD-5-CLSA
- Charges internal batteries up to 18 Ah
- Installation environment: indoor, dry
- Accepts the BAAP booster amplifier adapter plate, P/N S54339-A14-A1
Order by colour and height: PAB-ENCL-R (S54339-A9-A1) is the red 1HU; PAB2-ENCL and PAB2-ENCL-R are the 2HU boxes at 16" × 40" × 5.5".
