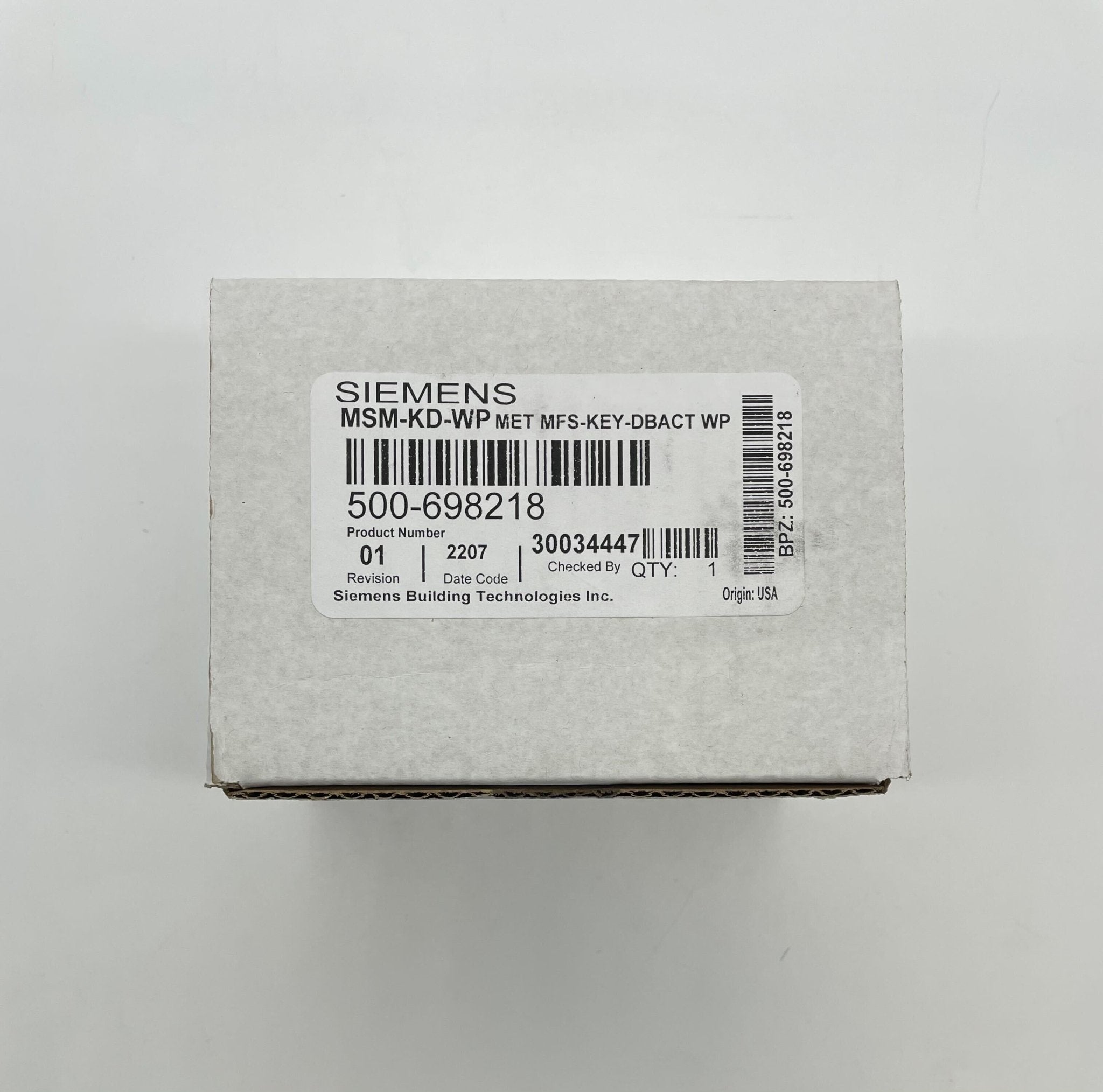

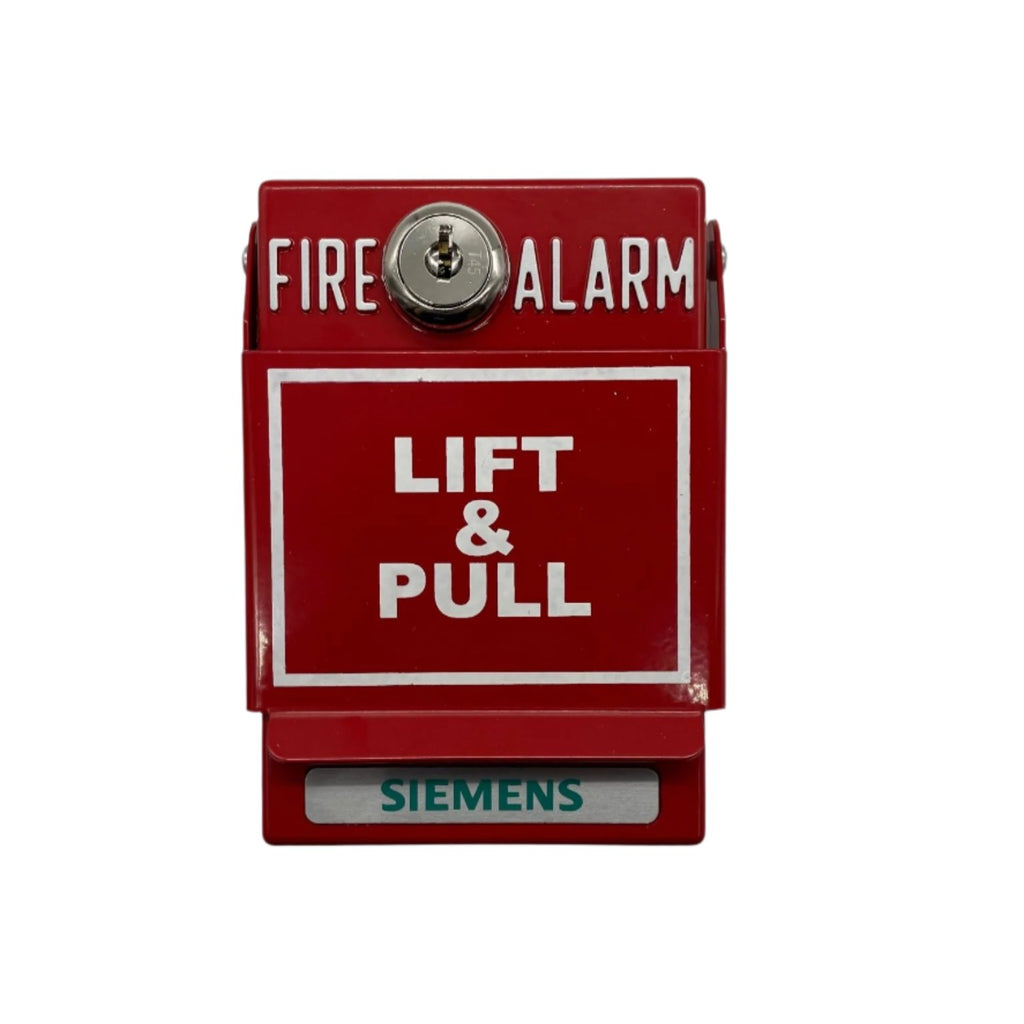

Siemens MSM-KD-WP — weatherproof double action metal manual fire alarm station with key reset, part number 500-698218.
The MSM Series is the die-cast metal alternative to moulded manual stations, for places where the box must survive weather and rough handling. Here the KD suffix marks key reset with double action operation and WP the weatherproof version, which unlike the standard models ships complete with its own backbox. Surfaces are painted or plated to inhibit corrosion.
- Single pole single throw switch, 10 A at 120 VAC
- Connections made to a terminal block

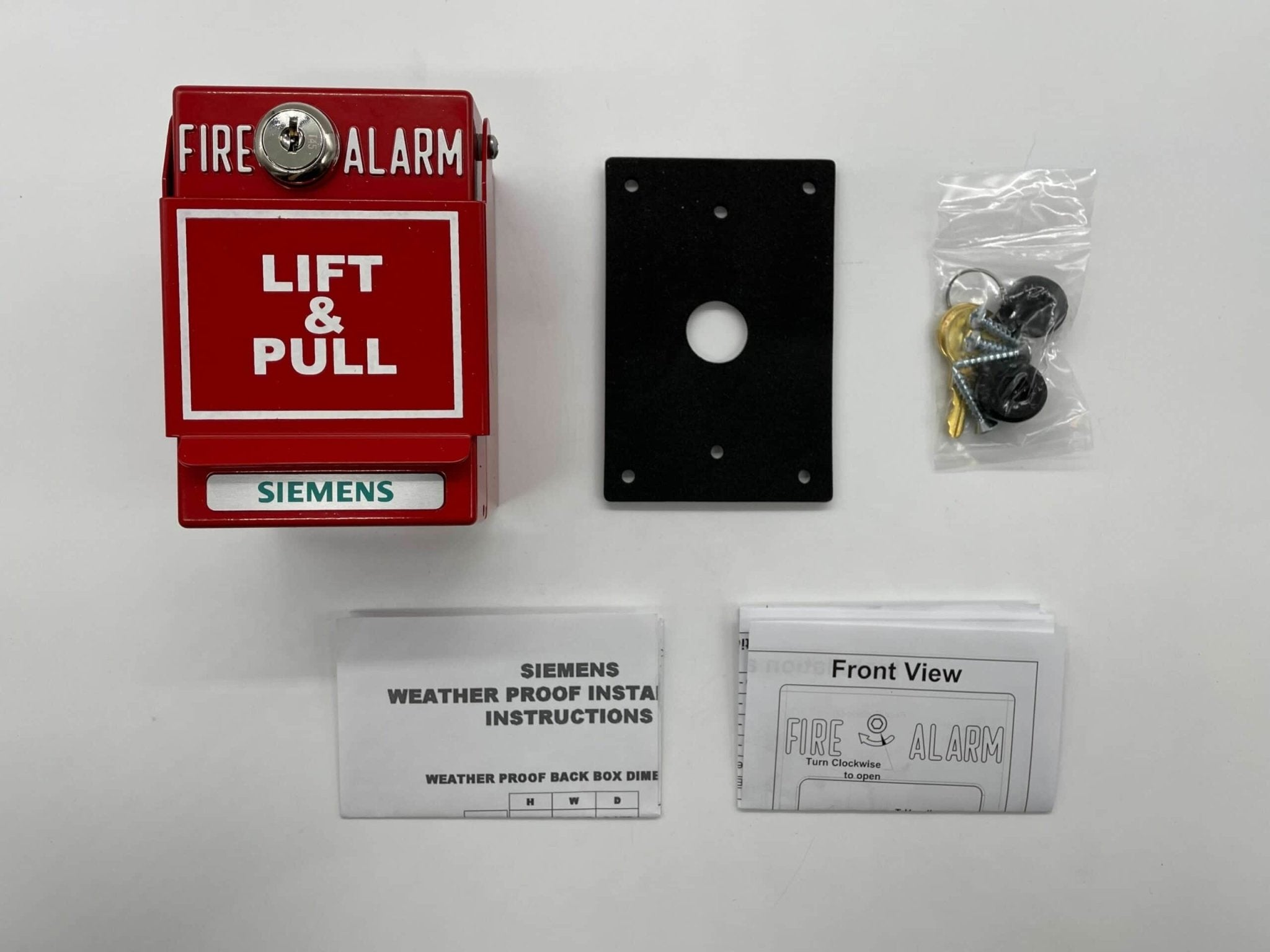

- Supplied complete with backbox and two reset keys
- Reset key matches the Siemens control panel key
- UL and ULC certified, CSFM and US Coast Guard approved
- For Siemens conventional zones, or addressable zones with a TRI-Series addressable module
The MSM-K-WP (500-698217) is the same weatherproof station without double action, and the MSM-KD (500-698216) is the double action station without the weatherproof backbox. The explosion-proof MSM-EXP uses a double pole double throw switch rather than the single pole fitted here.
