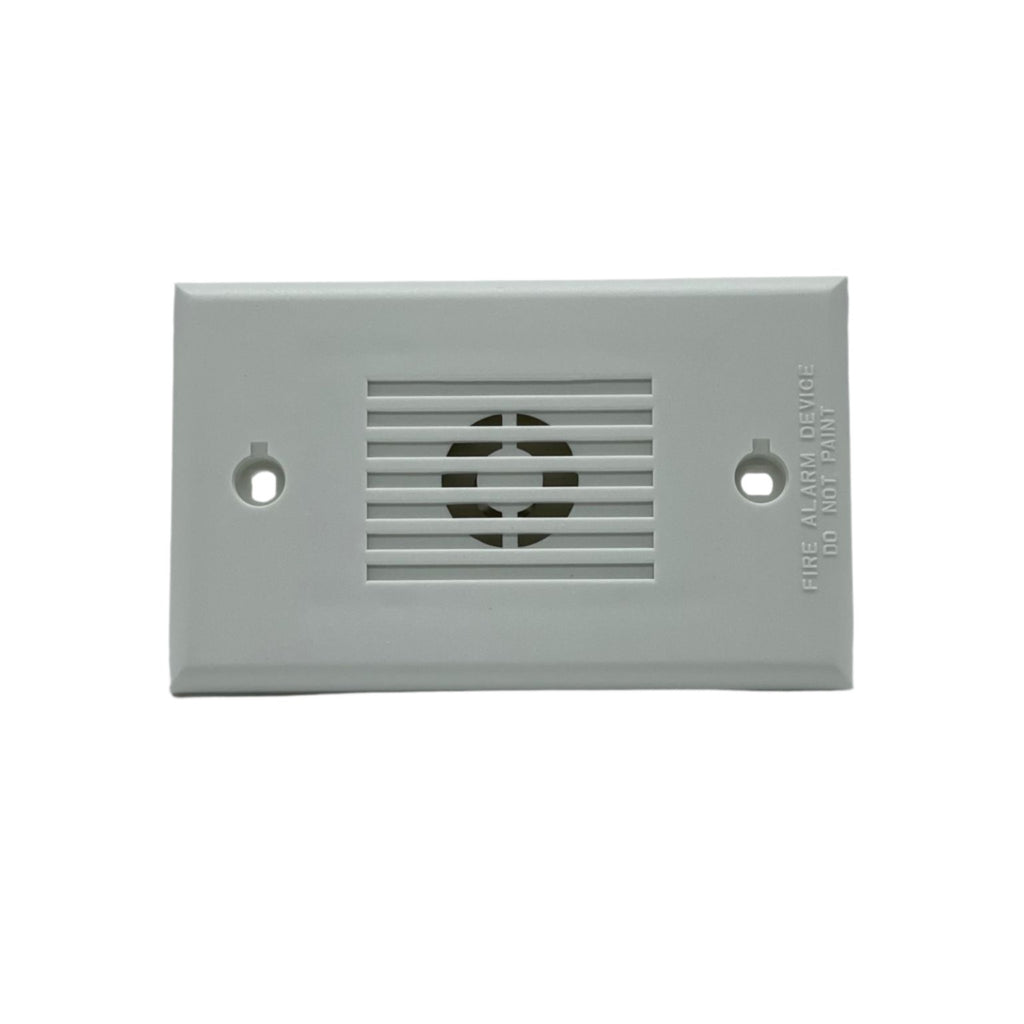

Siemens MH-W — piezoelectric mini horn for indoor fire alarm notification, white front, Siemens part number 500-636075.
A mini horn suits dwelling units, hotel rooms and small offices, where a full-size horn is more output than the space needs and only a single-gang box is available. The MH mounts to any standard single-gang box with no trim plate or adapter. Tone is field-selectable between continuous and Temporal Code 3, and the horn synchronizes with Siemens DSC sync modules, an FS-250 or XLS panel, or a PAD-3 power supply. In and out terminals take #12 to #18 AWG with reverse-polarity supervision.
- UL 464 Special Application range 16.0–33.0 VDC/VRMS
- UL maximum RMS current 0.026 A on DC, 0.043 A on full-wave rectified
- Reverberant dBA at 10 ft per UL 464, at 16/24/33 V: continuous 79/83/85, Code 3 75/78/81
- Anechoic 87 dBA at 24 VDC on both tone settings, per ULC-S525-99
- Indoor use only; UL and ULC certified, FM and CSFM approved
Order by colour carefully: 500-636074 is the MH-R, the same mini horn with a red front — the two numbers differ by one digit. The MH is audible only, with no strobe, so it cannot substitute for a horn/strobe.
