Siemens ID-SP — inner-door single blank plate, Siemens part 500-633028, two plates per package.
A Cerberus PRO Modular or FireFinder XLS inner door is divided into module spaces. The Operator Interface takes some and an ID-MP mounting plate another; anything left is an open cutout. The ID-SP closes one single-module space so a partly populated panel presents a finished door.
- Covers one single-module blank space not used by the Operator Interface or an ID-MP.
- Up to four ID-SP plates mount in a single row on the inner door.

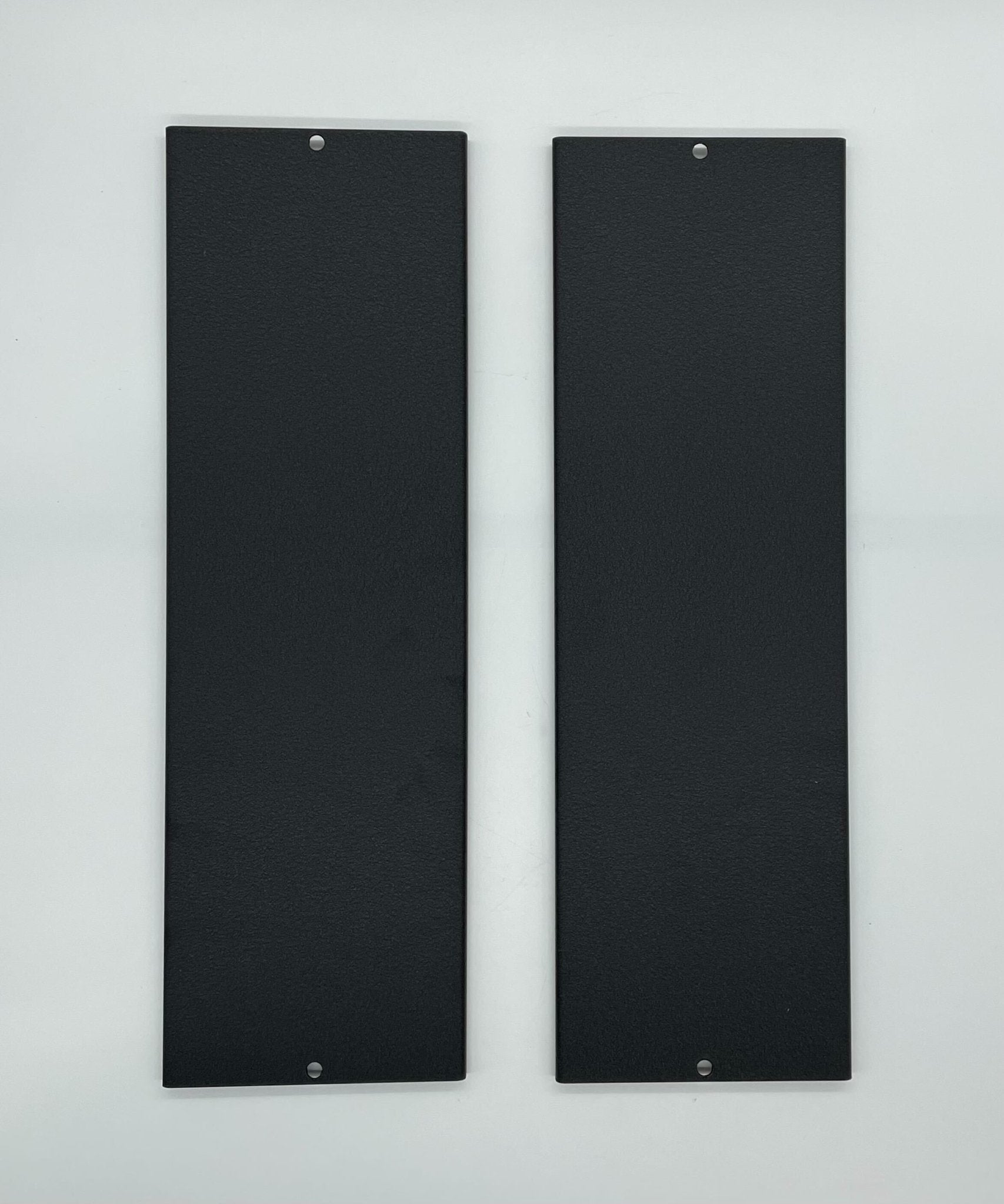

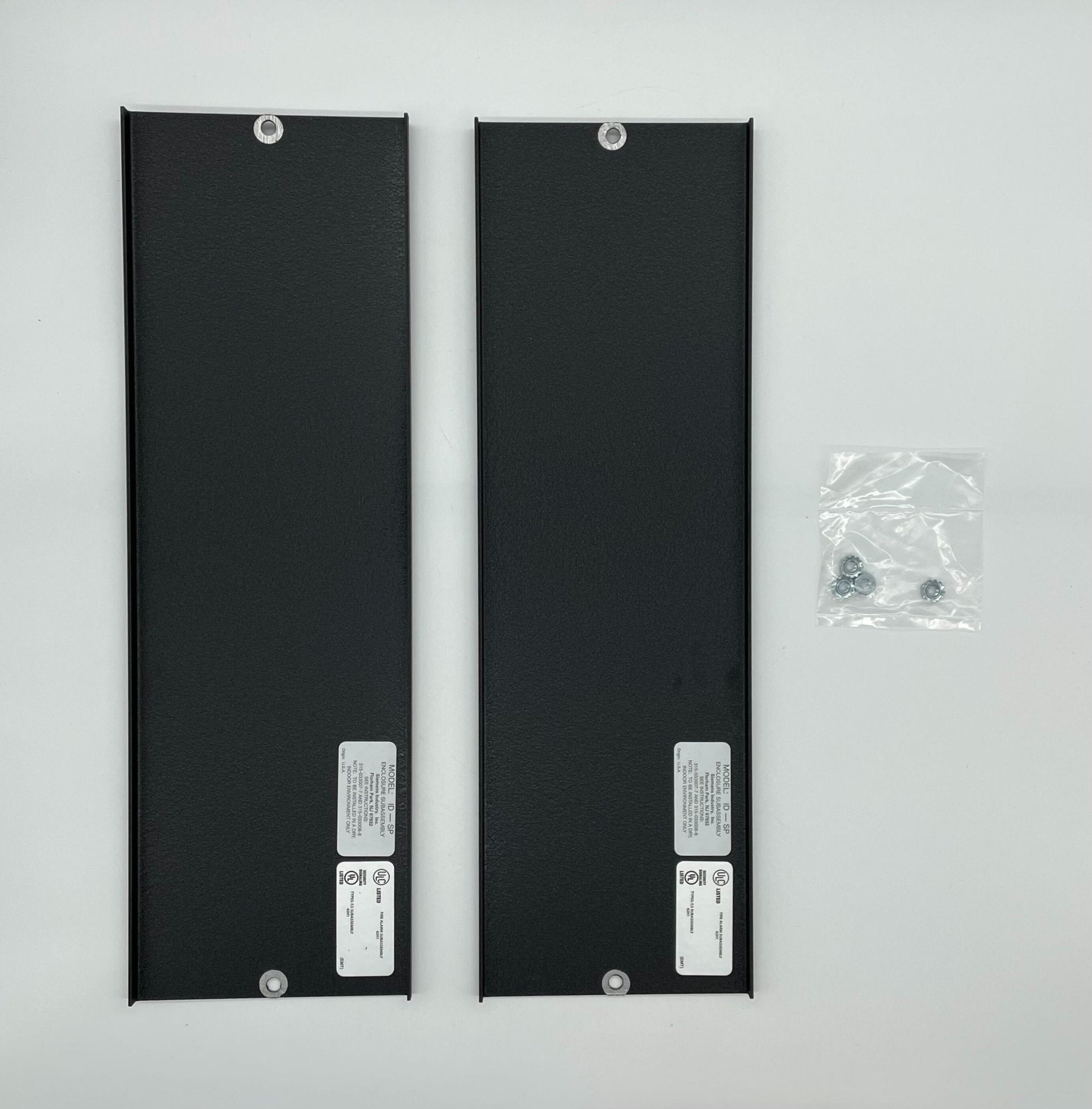

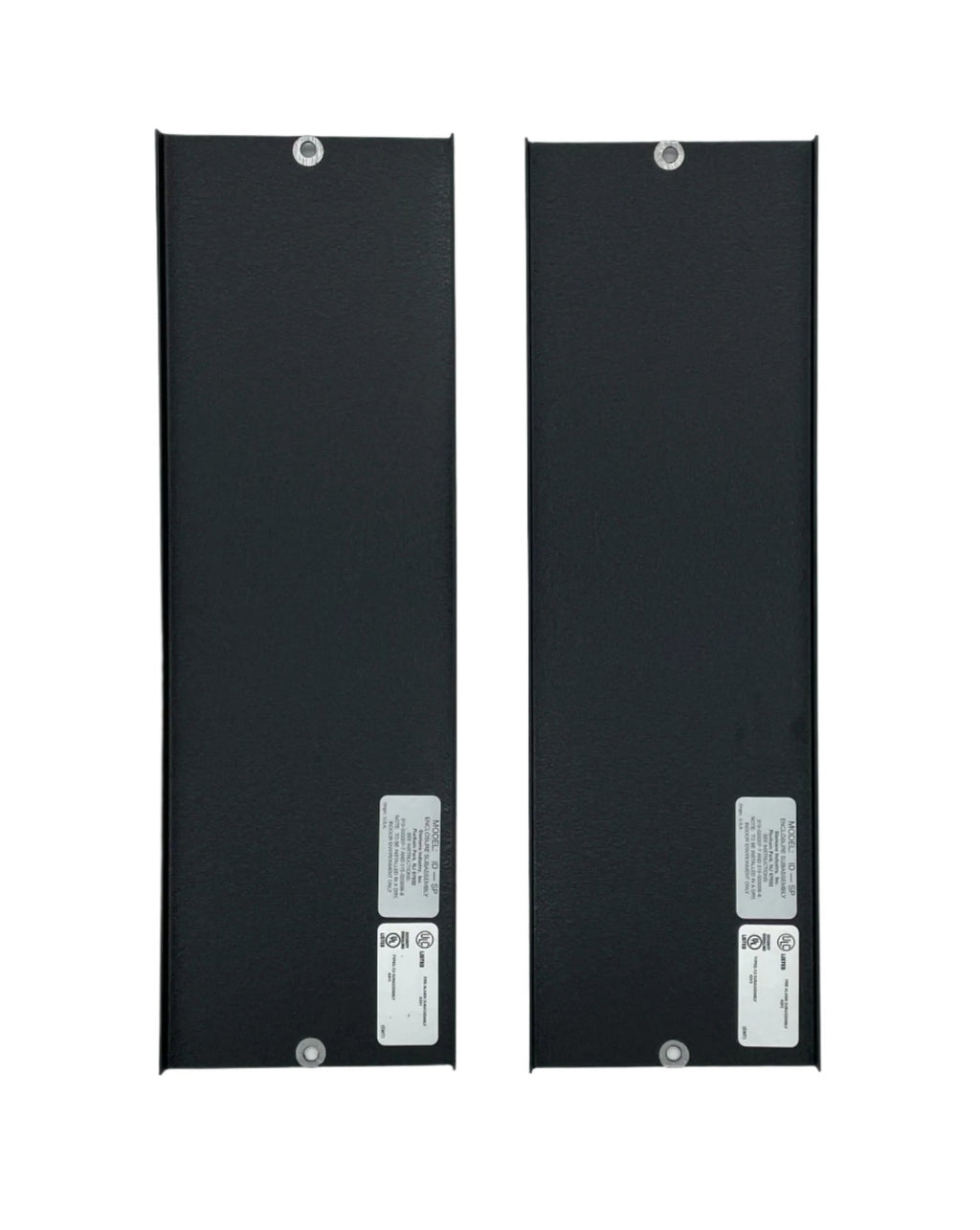

- Two blank plates are included in each ID-SP, stated in the text and the ordering table.
- Also closes unused module spaces in the REMBOX4 four-module remote enclosure.
- Covers the CAB1, CAB2 and CAB3 cabinets and the REMBOX remote enclosures.
ID-MP, part 500-633027, is the adjacent number and is not a blank: it is the inner-door mounting plate carrying four control-module spaces, four per package, whose own empty spaces take the BCM blank control module plate. The outer door uses a separate set, OD-BP black and OD-BP-R red, with OD-GP the grill plate and OD-LP the lens plate.
