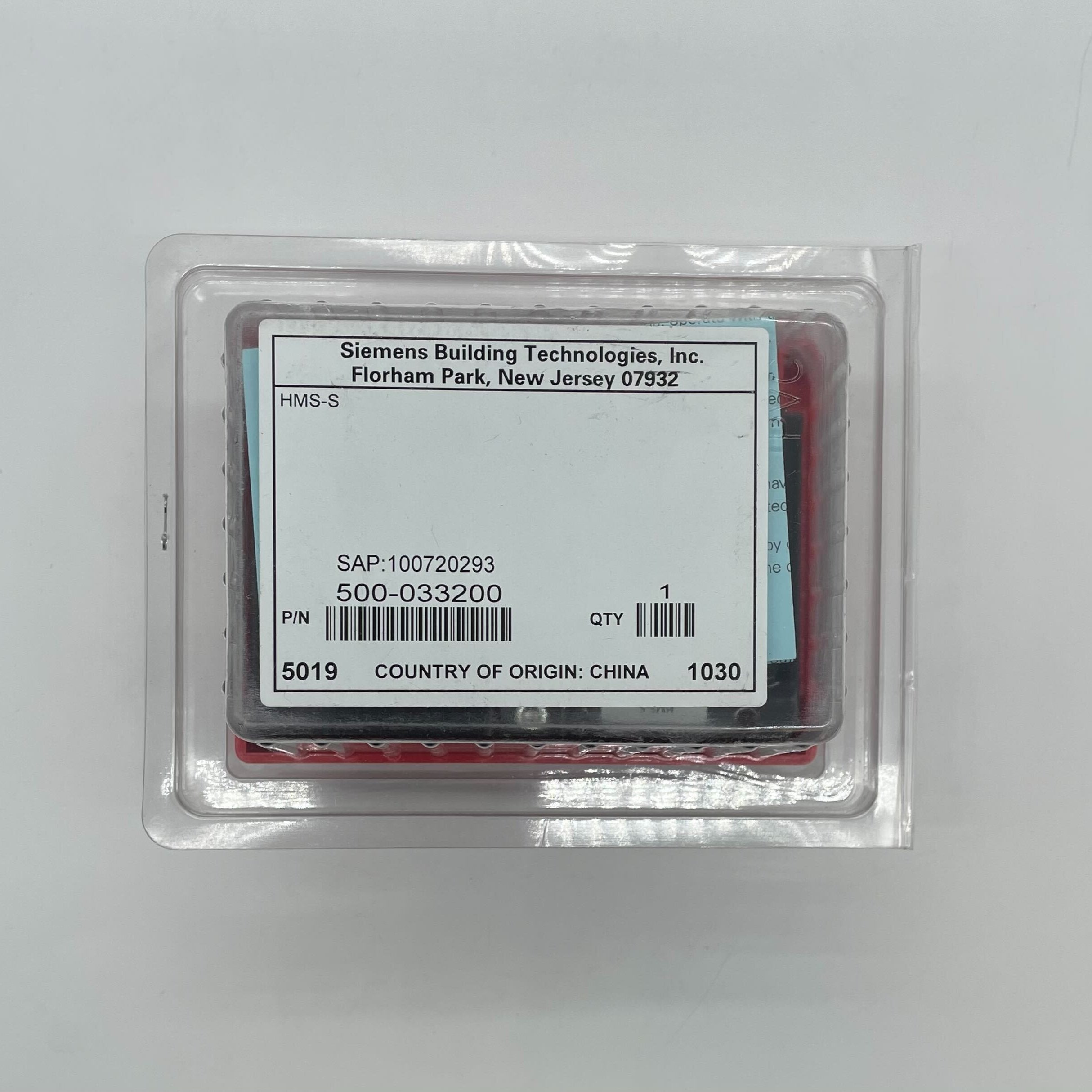

Siemens HMS-S — addressable single-action manual fire alarm box, part number 500-033200.

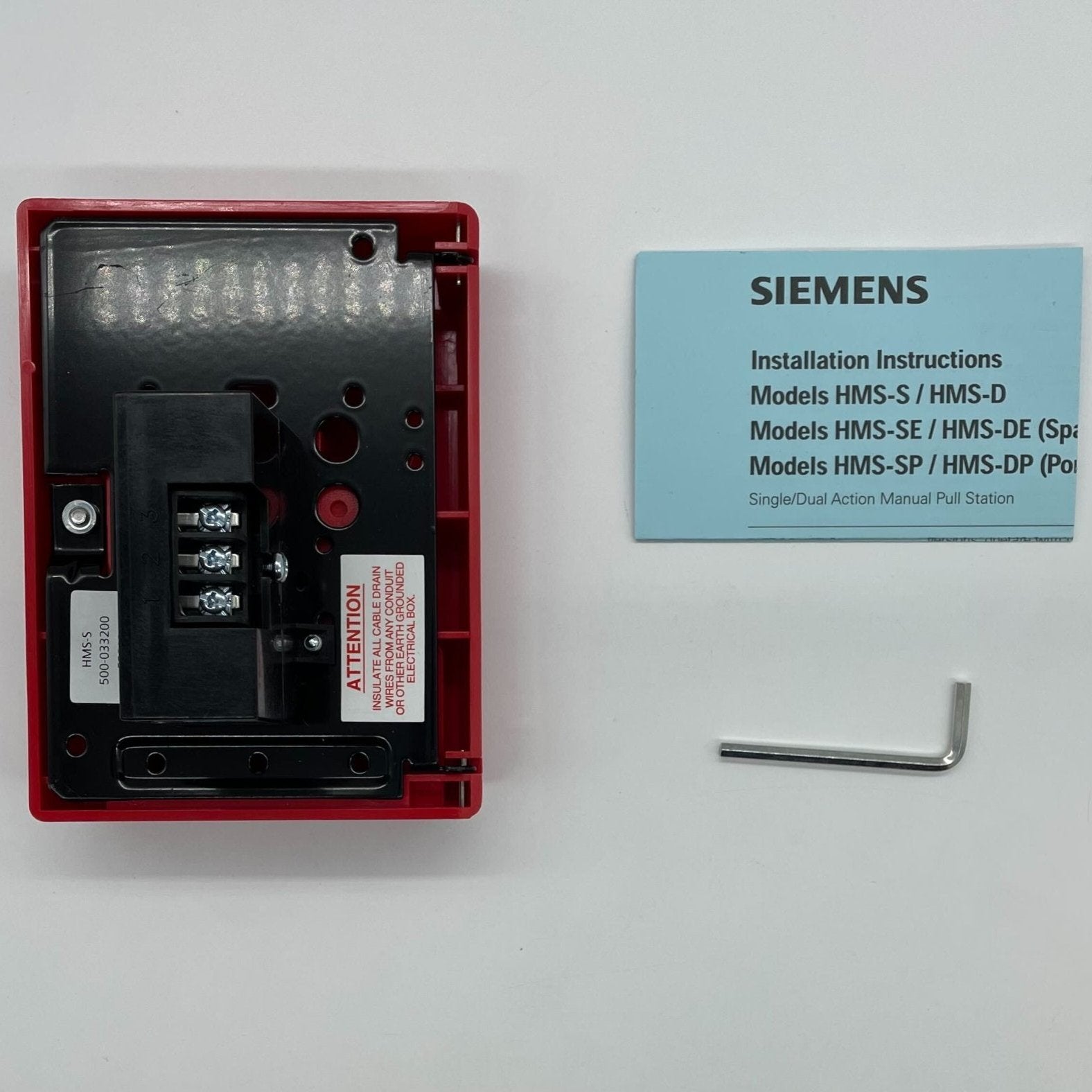

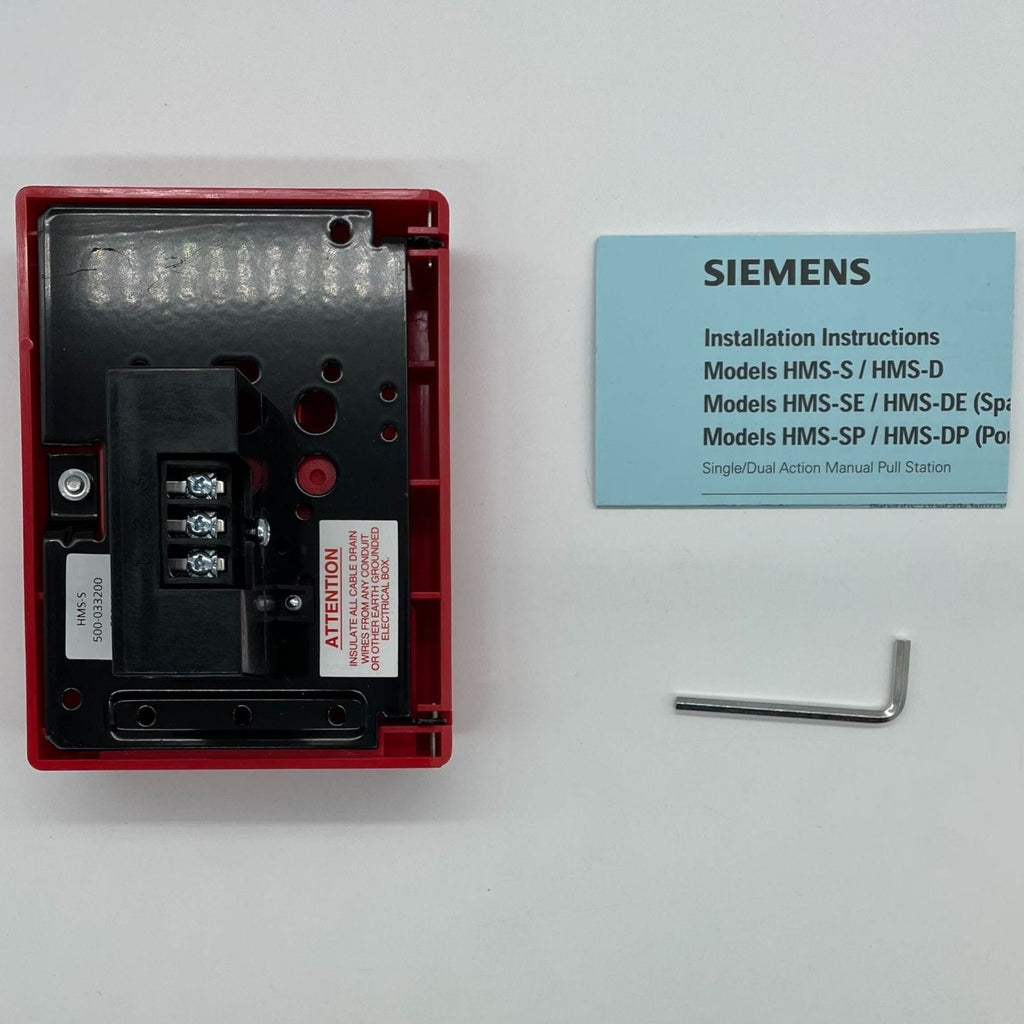

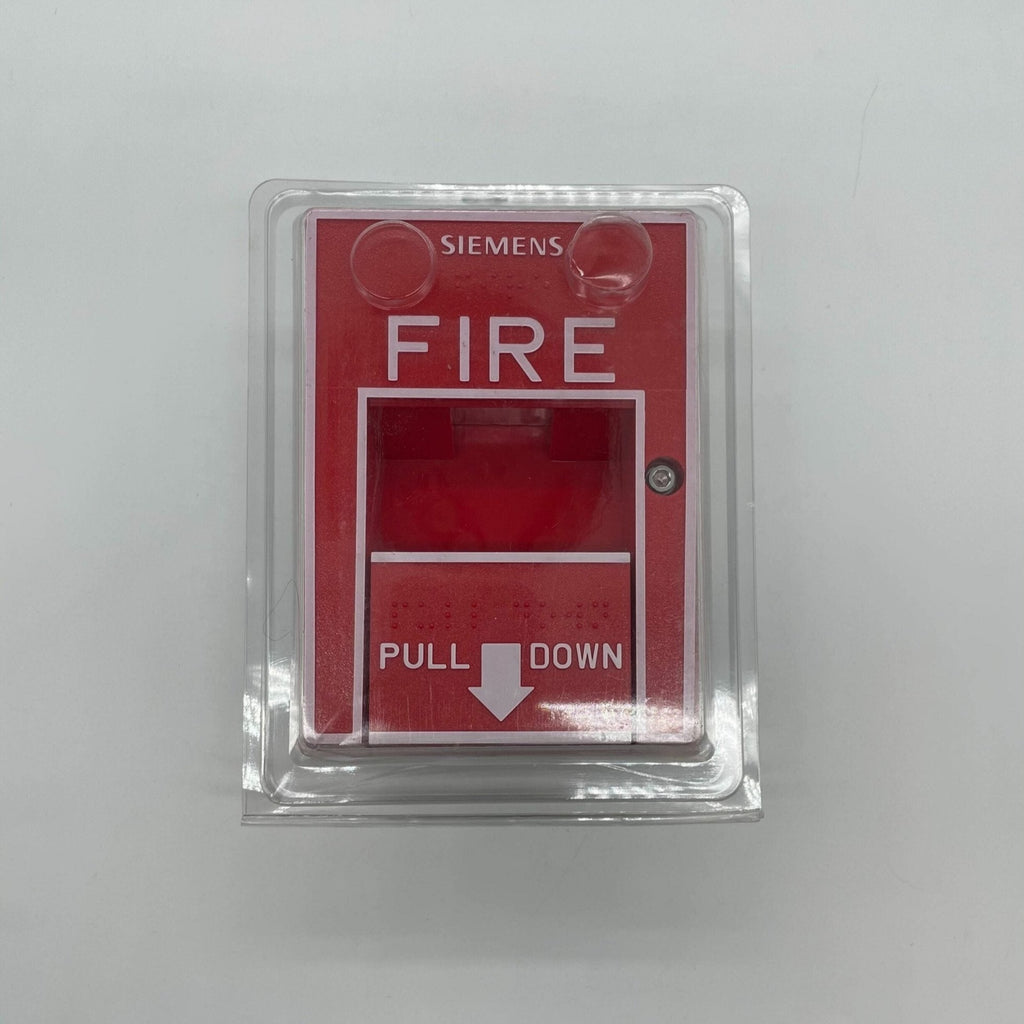

A microcomputer chip lets the HMS-S communicate in both directions with the panel, so it reports its own address and status on the addressable loop rather than closing a contact on a conventional zone. The pull-down lever locks down when operated and stays there until the housing is opened with an Allen key and closed; there are no break rods, and the address is set electronically with the Model DPU programmer.
- Single action; the dual-action station of the family is the HMS-D, 500-033400
- Current draw 0.9 mA, active or standby
- 32°F to 100°F (0°C to 38°C), 0 to 93% relative humidity, indoor dry conditions
- Two-wire and polarity insensitive; instructions 315-033200-7 show it on FireFinder-XLS or FS-250 panels via a DLC or FS-DLC loop card
- Surface mounts to a Model SB-5R box (310-019860) or semi-flush to a single-gang box
- UL listed; FM 3015946 and 3052621; CSFM 7150-0067:0036
HMS-SZ is the same single-action station under number S54321-F6-A1. HMS-D and HMS-DZ are dual action and need a PUSH IN lever first.
