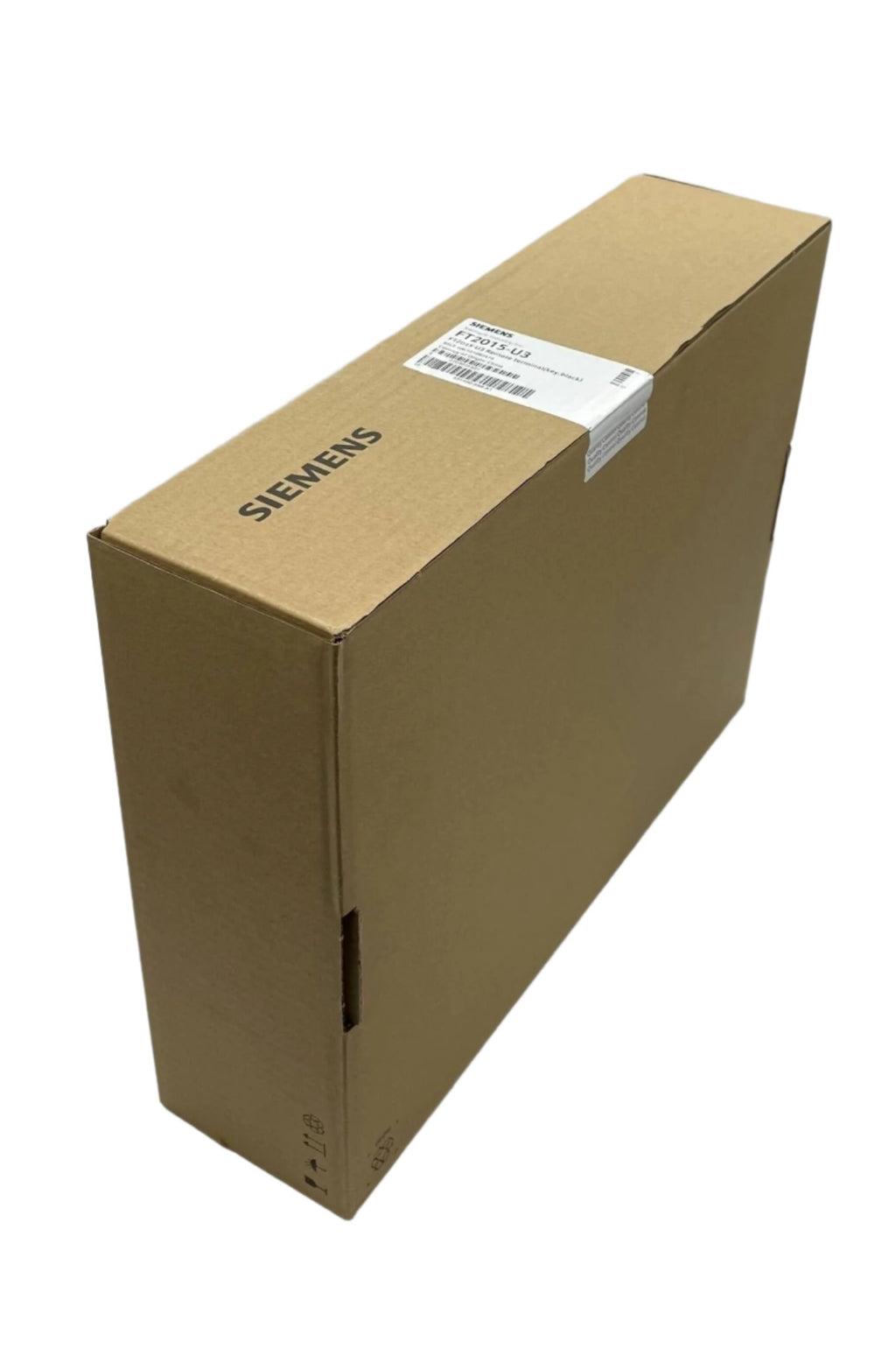

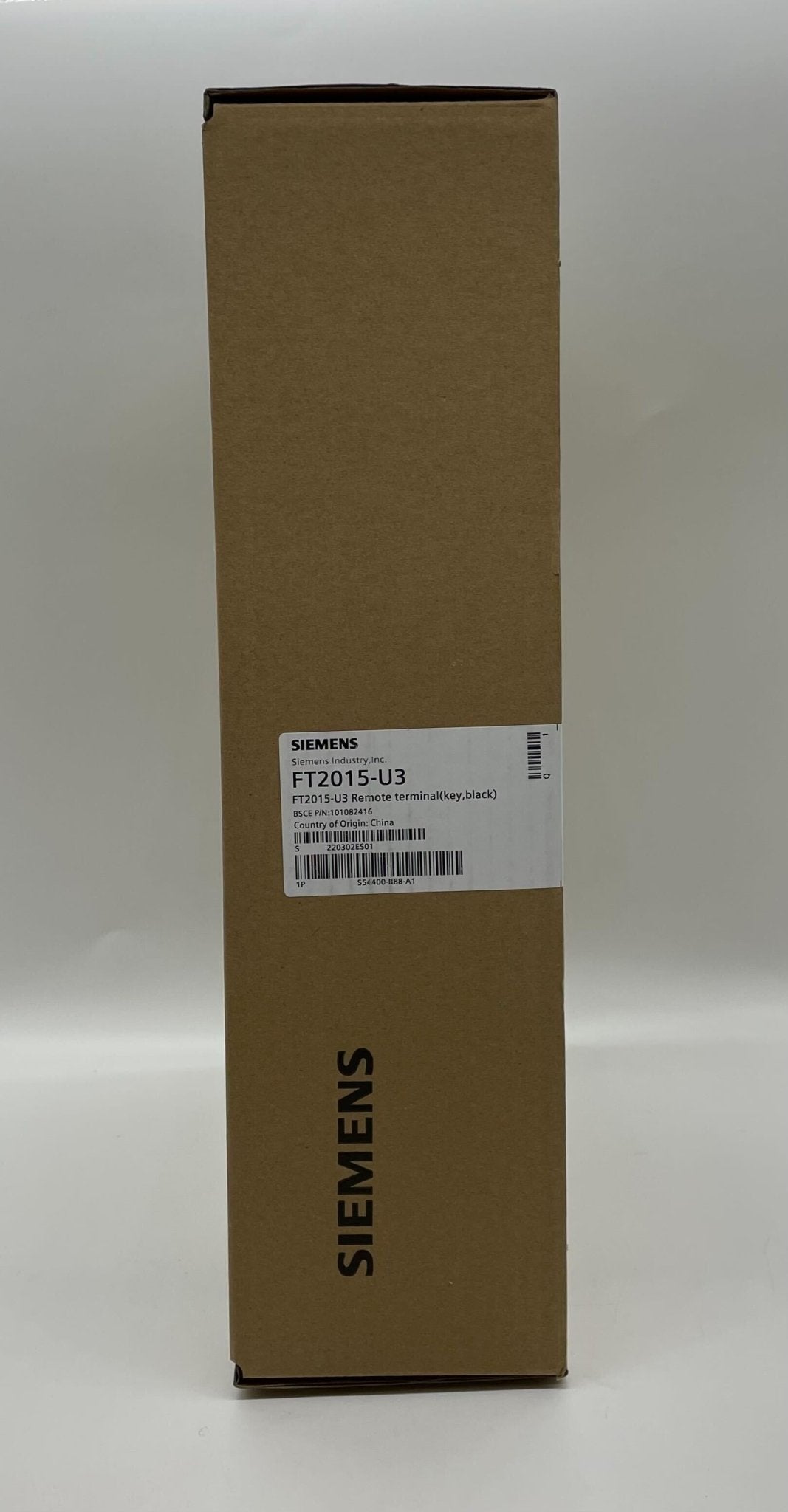

Siemens FT2015-U3 — Cerberus PRO remote display terminal with controls and key switch, black (Siemens S54400-B88-A1).
Where a remote location must act on the system rather than just watch it, the FT2015 is the terminal specified: the FT2014 carries only a local-sounder silence button, while the FT2015 adds acknowledge, signal-silence and reset plus three programmable buttons. An integral key switch enables those controls; events show on a backlit 2" × 4-3/4" LCD.
- Annunciates Cerberus PRO 252- and 504-point systems over RS–485
- 24 VDC @ 55 mA; terminals accept 12 to 22 AWG
- Style 4 (Class B) or Style 6 (Class A); eight devices, 3,937 ft (1200 m) max
- Mounts in a two-gang or 4-inch square box — no flush-trim kit
- Indoor dry locations, 32°F to 120°F
- UL 864 9th Ed. and ULC certified; FM #3010, CSFM #7165-0067:0259, FDNY #6104
FC922 and FC924 panels need the separate FCA2016-U1 RS–485 module before a remote terminal will communicate; it is not supplied here. Order FT2015-R3 for a red housing.
Documents
FAQ
What is needed to connect the FT2015-U3 to a Cerberus PRO panel?
The FCA2016-U1 RS-485 interface module, which provides communication to the remote display terminals. It is ordered separately.
How does the FT2015 differ from the FT2014?
The FT2015 adds operating controls enabled by a key switch, so events can be acknowledged, signals silenced and the system reset from the remote location. The FT2014 is a display terminal.
What does the display show?
Separate LEDs for alarm, gas alarm, supervisory and trouble, a power LED, a ground-fault LED, four programmable LEDs and two audible-circuit LEDs, plus an LCD with event text.
Is there a red version?
Yes. The FT2015-R3 is the red housing version.
