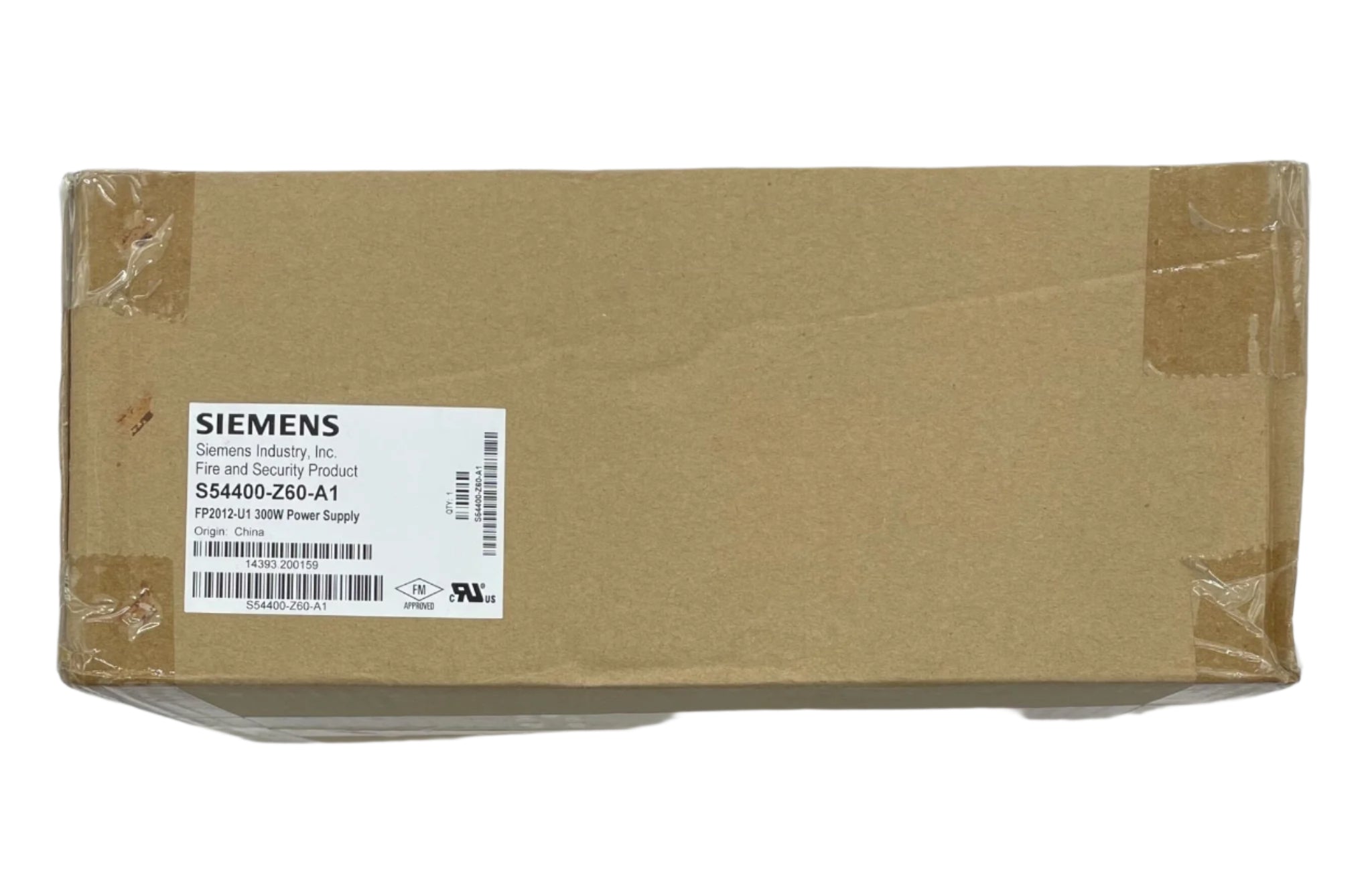

Siemens FP2012-U1 — 300-watt primary power supply for Cerberus PRO panels, part number S54400-Z60-A1.
It provides primary regulated 24 VDC power and mounts inside a Cerberus PRO brand enclosure, with no serviceable parts. Siemens lists it for the FC922 and FC924 control panels and the FV922 and FV924 IVC panels, so it is the supply behind the 252 and 504 point systems.
- Output 24 VDC nominal at 11.5 A maximum, filtered and regulated
- Input 120 VAC or 240 VAC (+10% / -15%), 50/60 Hz at 3.5 A maximum
- Two 6.3 A replaceable slow-blow fuses on the primary input, plus a built-in AC line filter
- Monitors AC power failure and brownout; short-circuit and over-current protection
- UL 864 10th Edition, UL 1481 and ULC-S527 certified; FM, FDNY and CSFM approved
- 9.88 × 3.88 × 2.5 ", 4 lb; screw terminals for 10 to 18 AWG
Its sibling in the same data sheet is the easy confusion. FP2011-U1 (500-450222) is the 170-watt unit, rated 6.5 A, 7.75 × 3.88 × 1.75 ", with one 4.0 A fuse — and that smaller supply, not this one, is the model Siemens lists for the 50-point FC901.
Documents
FAQ
Which panels use the FP2012-U1?
Siemens lists the 300-watt supply for the Cerberus PRO FC922 and FC924 control panels and the FV922 and FV924 panels. The 50-point FC901 uses the smaller FP2011-U1.
What is the output rating?
24 VDC nominal, filtered and regulated, at up to 11.5 A.
Does it have serviceable parts?
No. It mounts inside a Siemens enclosure, and apart from the replaceable slow-blow primary fuses there are no serviceable parts.
What AC input does it need?
120 VAC or 240 VAC (+10%/-15%), 50/60 Hz, at 3.5 A maximum.
