The Siemens FP2011-U1 is a 170 W power supply that provides primary, regulated 24 VDC (nominal) power at 6.5 A to Siemens Desigo Fire Safety fire-only and intelligent voice communication systems. It is used with Models FC2005, FC2025 and FC2050 fire alarm control panels.
The supply is filtered and regulated, monitors AC power failure and brownout conditions, and has short-circuit and over-current protection. A 4.0 A non-resettable slow-blow fuse protects the primary input, and a built-in AC line filter suppresses surges and noise. It mounts in a standard Desigo enclosure and has no serviceable parts.
Specifications
| Output |
24 VDC nominal, 6.5 A (170 W) |
| Input |
120 VAC or 240 VAC |
| Primary fuse |
4.0 A slow-blow, non-resettable |

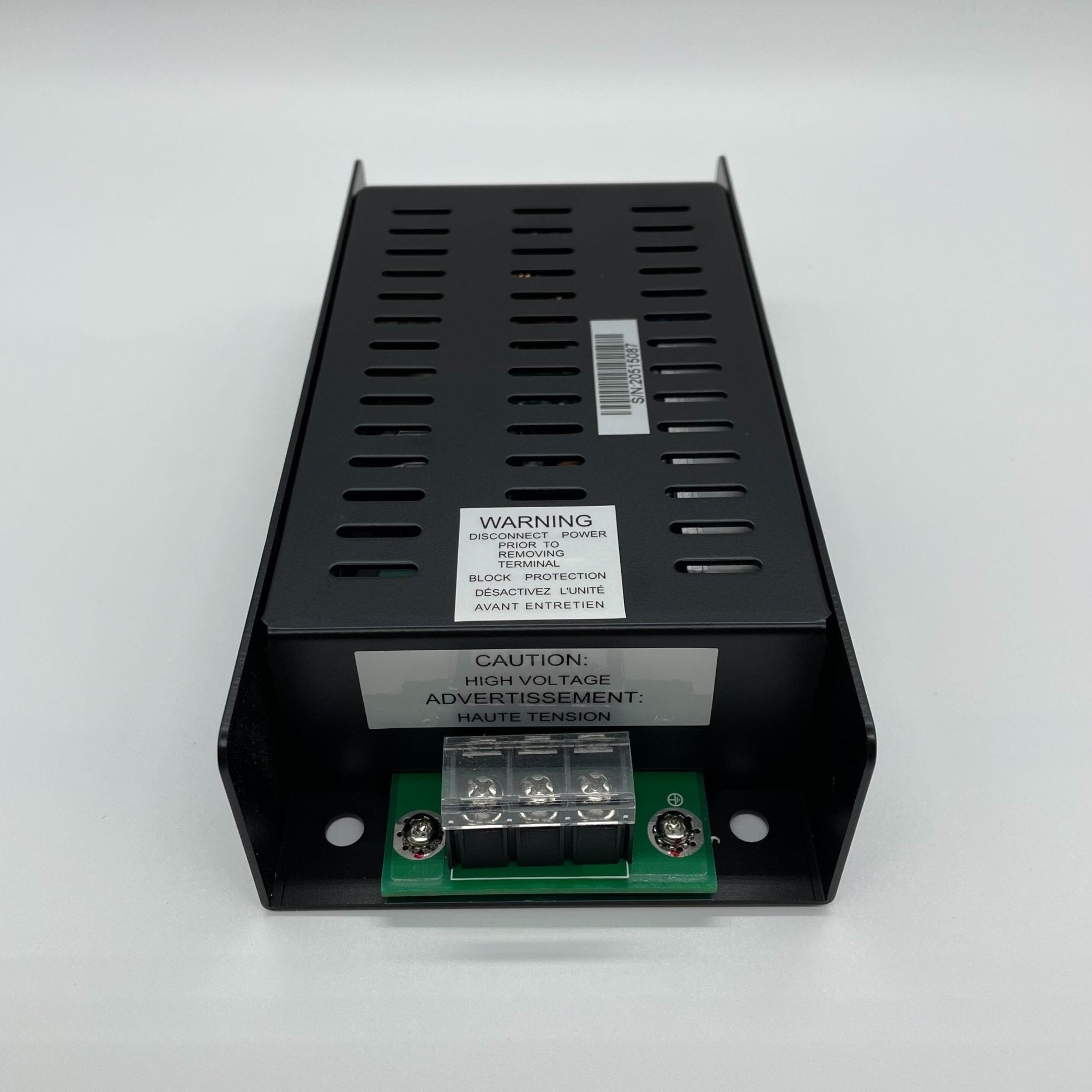

| Input wiring |
Screw terminals, 10 to 18 AWG |
| Dimensions |
7.75 x 3.88 x 1.75 in. (W x H x D) |
| Weight |
3 lb (1,361 g) |
| Certifications |
UL-recognized component; UL 864 10th Edition / UL 1481 and ULC-S527 |
| Approvals |
FM 3010, CSFM 7165-0067:0259, FDNY 6104 |
Related models
The FP2012-U1 is the 300 W, 11.5 A version for FC2025 and FC2050 panels and FV2025/FV2050 voice panels. The PAD-4 NAC extender can also be built with FP2011-U1 or FP2012-U1 supplies.
Documents
FAQ
Which panels use the FP2011-U1?
Siemens Desigo Fire Safety FC2005, FC2025 and FC2050 fire alarm control panels.
What is its output?
Regulated 24 VDC nominal at 6.5 A, rated 170 W.
What protection does it have?
It monitors AC power failure and brownout, has short-circuit and over-current protection, a 4.0 A slow-blow input fuse and a built-in AC line filter.
What is the difference from the FP2012-U1?
The FP2012-U1 is the 300 W, 11.5 A supply, which also powers FV2025 and FV2050 voice panels.
